Banjar Batur, Bali, Indonesia presents an excellent location for year-round solar energy generation, with consistently strong electricity output throughout all seasons. This tropical location benefits from reliable sunlight patterns that make it highly suitable for solar photovoltaic installations.

Seasonal Solar Performance

The solar energy production at this location shows impressive consistency across all seasons. Spring delivers the highest output at 6.29 kWh per day per kW of installed solar capacity, followed closely by autumn at 6.12 kWh per day. Winter maintains strong performance at 5.83 kWh per day, while summer produces 5.48 kWh per day per kW installed. The relatively small variation between seasons - only about 0.81 kWh difference between the highest and lowest performing seasons - demonstrates the reliability of solar energy at this tropical location. This consistency makes it much easier to predict annual energy production and financial returns from solar investments.

Optimal Installation Setup

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 9 degrees facing North. This optimal angle has been calculated using weighted daily solar elevation angles and NASA solar irradiance data, accounting for Earth's elliptical orbit to maximize total annual output.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Banjar Batur and require careful consideration during installation:

• High humidity and tropical rainfall: The wet season brings intense rainfall that can reduce solar output and create challenges for equipment longevity
• Volcanic ash: Being located in volcanic regions of Indonesia, ash deposits from nearby volcanic activity can significantly reduce panel efficiency
• Salt air corrosion: Proximity to ocean environments can accelerate corrosion of metal components
• Extreme heat and UV exposure: Intense tropical sun can degrade panel materials faster than in temperate climates

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Weather Protection: Install panels with robust mounting systems designed for high wind loads and heavy rainfall. Ensure proper drainage around installations to prevent water accumulation that could damage electrical components. Regular Maintenance Schedule: Establish frequent cleaning protocols to remove volcanic ash, dust, and debris. This is particularly crucial after volcanic events or during transition periods between wet and dry seasons. Material Selection: Choose corrosion-resistant mounting hardware, particularly stainless steel or aluminum components with appropriate protective coatings. Select panels with enhanced UV-resistant backing materials designed for tropical climates. Ventilation and Cooling: Design installations with adequate air circulation beneath panels to prevent overheating, which can reduce efficiency. Consider elevated mounting systems that allow better airflow. Despite these environmental considerations, Banjar Batur remains an excellent location for solar energy generation due to its consistent high output levels throughout the year and the availability of proven mitigation strategies for tropical installation challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

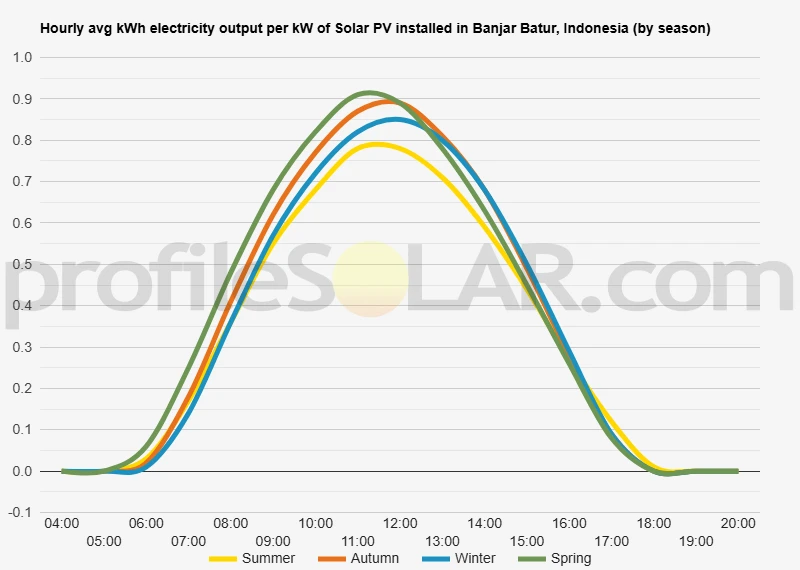

Solar output per kW of installed solar PV by season in Banjar Batur

Seasonal solar PV output for Latitude: -8.8304, Longitude: 115.1705 (Banjar Batur, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Banjar Batur, Indonesia

To maximize your solar PV system's energy output in Banjar Batur, Indonesia (Lat/Long -8.8304, 115.1705) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Banjar Batur, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Banjar Batur, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	15° North in Autumn	24° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Banjar Batur, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Banjar Batur, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Banjar Batur, Indonesia

Topographical Features of Banjar Batur

The area around Banjar Batur in Bali, Indonesia is characterized by dramatic volcanic topography that creates a landscape of steep slopes, ridges, and elevated plateaus. This region sits within the caldera complex of Mount Batur, an active volcano that dominates the local terrain. The elevation changes are significant, with the land rising sharply from lower agricultural areas to volcanic highlands that reach well over 1,000 meters above sea level. The immediate vicinity features undulating terrain with pronounced ridgelines and valleys carved by ancient volcanic activity and ongoing erosion. Rocky outcrops are common throughout the area, interspersed with patches of volcanic soil that support local agriculture. The terrain is generally too steep and irregular for large-scale development projects, with many areas accessible only by winding mountain roads that follow the natural contours of the landscape. Water features include Lake Batur, a substantial crater lake that occupies much of the ancient volcanic caldera. The lake creates a unique microclimate and adds another layer of complexity to the local topography, with its shores providing some of the few relatively flat areas in the immediate region.

Optimal Areas for Large-Scale Solar Development

The challenging volcanic topography around Banjar Batur makes the immediate area unsuitable for large-scale solar photovoltaic installations. The steep slopes, irregular terrain, and rocky volcanic substrates would require extensive and costly site preparation that would likely make projects economically unfeasible. The most promising locations for substantial solar developments lie to the south and southwest of Banjar Batur, where the volcanic highlands gradually transition into the gentler topography of central and southern Bali. These areas feature more moderate slopes and larger expanses of relatively flat or gently rolling terrain that could accommodate extensive solar arrays without requiring major earthworks. The coastal plains along Bali's southern shores represent another viable option for large-scale solar installations. These areas benefit from consistent topography, established infrastructure networks, and proximity to major population centers that would provide ready markets for generated electricity. The flat to gently undulating terrain in these coastal regions would minimize construction challenges and allow for efficient panel layouts that maximize energy capture. Agricultural areas in the central portions of Bali, particularly those with less intensive cultivation or marginal farmland, could also provide suitable sites for solar development. These locations typically offer the necessary combination of accessible terrain, existing road networks, and proximity to electrical grid infrastructure that large-scale solar projects require for successful implementation.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
