Banjarbaru, South Kalimantan, Indonesia, located at latitude -3.4408 and longitude 114.8308, presents a promising environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasonal variations primarily characterized by wet and dry periods rather than significant changes in daylight hours.

Solar Energy Potential

The solar energy output in Banjarbaru remains relatively stable across all seasons, with only minor fluctuations. Autumn emerges as the most productive season, yielding an impressive 5.60 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.18 kWh/day, while winter and summer produce 5.08 kWh/day and 4.74 kWh/day, respectively. These figures indicate that Banjarbaru is an excellent location for year-round solar energy production. The consistency in output across seasons suggests that solar installations in this area can provide reliable energy generation throughout the year, with minimal seasonal adjustments required.

Optimal Panel Tilt

For fixed solar panel installations in Banjarbaru, South Kalimantan, the ideal tilt angle to maximize year-round energy production is 4 degrees North. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Environmental Considerations

While Banjarbaru's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The region experiences a tropical rainforest climate with significant precipitation, especially during the wet season. This can potentially reduce solar panel efficiency and increase the risk of corrosion. 2. Cloud cover: Frequent cloud cover, particularly during the rainy season, may temporarily reduce solar energy output. To mitigate these challenges, several preventative measures can be implemented:

Preventative Measures

1. Use corrosion-resistant materials and protective coatings for solar panel components to withstand high humidity and rainfall. 2. Install adequate drainage systems to prevent water accumulation on or around the solar panels. 3. Implement regular cleaning and maintenance schedules to remove dirt, dust, and other debris that may accumulate on the panels, especially during dry periods. 4. Consider using microinverters or power optimizers to minimize the impact of partial shading from cloud cover on overall system performance. By implementing these measures, solar installations in Banjarbaru can maximize their energy production potential and ensure long-term reliability despite the challenging tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

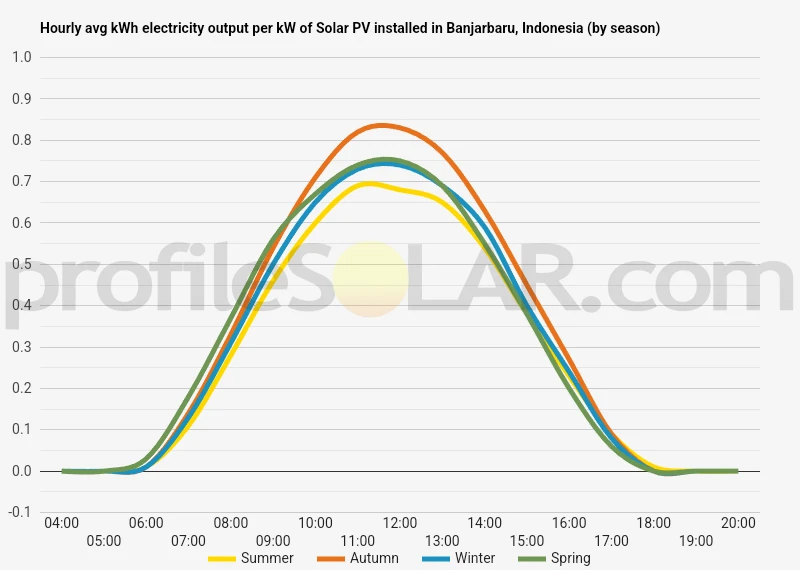

Solar output per kW of installed solar PV by season in Banjarbaru

Seasonal solar PV output for Latitude: -3.4408, Longitude: 114.8308 (Banjarbaru, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Banjarbaru, Indonesia

To maximize your solar PV system's energy output in Banjarbaru, Indonesia (Lat/Long -3.4408, 114.8308) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Banjarbaru, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Banjarbaru, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Banjarbaru, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Banjarbaru, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Banjarbaru, Indonesia

The area surrounding Banjarbaru, Indonesia, located at coordinates -3.4408, 114.8308, is characterized by a diverse and complex topography. This region, situated on the island of Borneo in the province of South Kalimantan, features a mix of lowland plains, gently rolling hills, and more rugged terrain as you move further from the city center. Banjarbaru itself is nestled in a relatively flat area, with the landscape gradually becoming more varied as you move outward. To the north and east, the terrain begins to rise, forming a series of low hills and ridges. These elevations are typically covered in lush tropical vegetation, a testament to the region's humid climate and abundant rainfall. To the south and west of Banjarbaru, the land remains predominantly flat, with expansive lowland areas that are often used for agriculture, particularly rice cultivation. This flatter terrain extends towards the coast, where it eventually meets the Java Sea. Numerous rivers and streams crisscross the landscape, creating a network of waterways that play a crucial role in the local ecosystem and agriculture.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal location for solar PV would have ample sunlight exposure, relatively flat terrain, and minimal shading from natural or artificial structures. Given these criteria, the areas to the south and west of Banjarbaru show the most promise for large-scale solar PV development. These lowland regions offer expansive, open spaces with fewer obstructions to sunlight. The flat terrain would simplify construction and reduce costs associated with land preparation. However, it's important to note that while these areas may be topographically suitable, other factors such as land use, environmental considerations, and proximity to existing power infrastructure would also need to be taken into account. Additionally, the region's high rainfall and humidity levels could pose challenges for solar PV efficiency and maintenance, requiring careful planning and appropriate technology selection. The hilly areas to the north and east, while less ideal for expansive solar farms due to their uneven terrain, could potentially accommodate smaller-scale installations on south-facing slopes that receive good sun exposure. Ultimately, a comprehensive site assessment would be necessary to determine the most suitable locations for large-scale solar PV projects in the vicinity of Banjarbaru, taking into account not just topography but also environmental, economic, and social factors.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
