Solar Energy Potential in Ciamis, West Java, Indonesia

Ciamis, West Java, Indonesia, located at coordinates -7.3097, 108.3832, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with weather patterns defined more by wet and dry seasons rather than the four traditional seasons experienced in temperate regions. The solar electricity output in Ciamis remains fairly stable across the meteorological seasons. During autumn months, the location reaches its peak production potential with 5.65 kWh per day for each kilowatt of installed solar capacity. Summer follows with 5.18 kWh/day, while spring produces 5.14 kWh/day. Winter shows the lowest output at 4.97 kWh/day, though the difference between seasons is not dramatic. For residents or businesses considering solar installation in Ciamis, West Java, it's worth noting that the most productive period occurs during autumn months, making this an ideal time to maximize returns on solar investment. However, the relatively small variation between seasonal outputs suggests that solar remains a viable energy source year-round in this location.

Optimal Panel Installation

For fixed solar panel installations in Ciamis, West Java, the ideal tilt angle to maximize year-round energy production is 7 degrees facing North. This specific angle has been calculated based on the location's proximity to the equator and accounts for the Earth's elliptical orbit and the resulting variations in solar elevation throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar production in Ciamis that should be considered when planning installations:

• Heavy rainfall during the wet season (typically October to March) can reduce solar efficiency due to cloud cover and direct rainfall on panels.
• Volcanic ash from Indonesia's active volcanoes can occasionally settle on panels, reducing their effectiveness.
• High humidity levels in the tropical climate can accelerate degradation of system components if not properly protected.
• Tropical vegetation grows rapidly and can create shading issues if not regularly maintained.

Preventative Measures

To maximize solar energy production in Ciamis despite these challenges, several preventative measures are recommended: Install panels with self-cleaning technologies or with sufficient tilt to allow rainfall to wash away dust and ash deposits. Regular maintenance schedules should include cleaning, particularly during the dry season when dust accumulation is more likely. Use high-quality, humidity-resistant components and ensure all electrical connections are properly sealed against moisture. Marine-grade materials often perform better in tropical environments like Ciamis. Implement a vegetation management plan to prevent shading from rapidly growing tropical plants. Consider raising the height of ground-mounted systems to reduce potential shading issues. Despite these considerations, Ciamis remains an excellent location for solar energy production with its consistent year-round solar radiation and minimal seasonal variation in output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

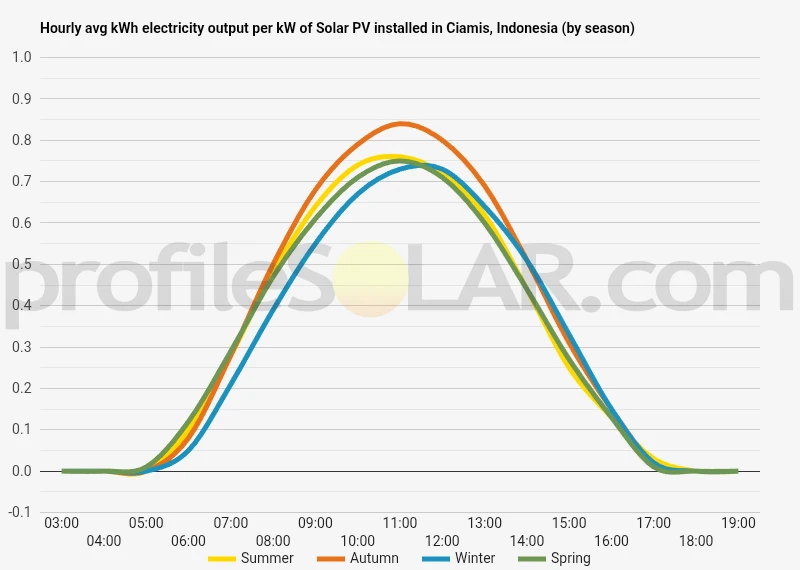

Solar output per kW of installed solar PV by season in Ciamis

Seasonal solar PV output for Latitude: -7.3097, Longitude: 108.3832 (Ciamis, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Ciamis, Indonesia

To maximize your solar PV system's energy output in Ciamis, Indonesia (Lat/Long -7.3097, 108.3832) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ciamis, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ciamis, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	14° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ciamis, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ciamis, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ciamis, Indonesia

Ciamis, located in the province of West Java, Indonesia, presents a varied topographical landscape characterized by a mix of lowlands, hills, and mountains. The region sits at an elevation of approximately 250 meters above sea level but is surrounded by more significant elevations. The topography gradually rises toward the south and east, where it transitions into the foothills of larger mountain ranges. The northern parts of Ciamis consist primarily of gently rolling plains and low hills, making these areas relatively flat compared to the southern regions. These northern plains have historically been utilized for agriculture, particularly rice cultivation, due to their favorable terrain and access to water sources.

Mountain Ranges and Highlands

Moving south and east from Ciamis town, the landscape becomes increasingly mountainous. The region is influenced by several volcanic formations that are part of the larger geological system running through Java. These mountains create distinctive ridgelines and valleys throughout the region. Notable among these is Mount Sawal to the northeast, which rises to about 1,764 meters and forms a significant topographical feature visible from many parts of Ciamis. The southern portions of the Ciamis region eventually meet the rugged terrain that leads toward the Indian Ocean coastline. This transition zone features increasingly steep slopes and deeper valleys carved by numerous rivers and streams that flow through the area.

River Systems and Valleys

The topography of Ciamis is further defined by several river systems that have carved valleys throughout the region. These waterways generally flow from the higher elevations in the south and east toward the lower plains in the north and west. The Citanduy River is particularly significant, creating a major valley system that influences the local landscape. These river valleys create natural divisions in the topography, sometimes forming steep-sided gorges in the more mountainous areas while widening into broader floodplains in the lower elevations. The combination of rivers and varied elevation creates a patchwork of microclimates and soil conditions throughout the region.

Potential Areas for Solar PV Development

When considering areas near Ciamis suitable for large-scale solar photovoltaic installations, the northern plains present the most promising opportunities. These areas combine several advantageous characteristics: The relatively flat terrain in the northern parts of Ciamis reduces the costs associated with land preparation and construction. These plains offer large, continuous tracts of land that could accommodate substantial solar arrays without requiring extensive terracing or other expensive modifications to the landscape. While the entire region receives substantial solar radiation throughout the year due to its tropical location, the northern plains have fewer obstructions from mountains that might cast shadows or create cloud formations. The more open landscape allows for maximum exposure to available sunlight. The northwestern areas extending toward Tasikmalaya offer particularly good potential for solar development. These areas feature extensive flat or gently rolling terrain with good solar exposure and relatively lower agricultural value compared to the intensively cultivated rice fields closer to major water sources. Secondary options might include some of the lower hill areas in the northeast, where south-facing slopes could provide good orientation for solar panels while being less valuable for traditional agriculture. However, these would require more careful site selection to avoid areas with excessive slope or poor accessibility. The mountainous southern regions, while receiving good solar radiation, present significant challenges for large-scale installations due to the steep terrain, more frequent cloud cover, and more complicated land access issues. These factors would substantially increase development costs and reduce overall efficiency of solar installations in these areas.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
