Cilegon, Banten, Indonesia presents a very favorable location for year-round solar energy generation. Located in the tropics at coordinates -6.0147, 106.0539, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than the temperature variations seen in temperate regions.

Solar Energy Production Potential

The solar energy output data for Cilegon shows excellent potential across all seasons. Spring delivers the highest production at 5.42 kWh per day per kW of installed solar capacity, closely followed by autumn at 5.35 kWh per day. Winter maintains strong performance at 5.04 kWh per day, while summer shows the lowest but still substantial output at 4.71 kWh per day. The ideal times for solar generation at this location are spring and autumn, when atmospheric conditions typically provide optimal sunlight transmission. However, the relatively small variation between seasons means that solar installations can maintain consistent energy production year-round, making this location excellent for reliable solar power generation. For maximum energy production from a fixed panel installation at Cilegon, Banten, solar panels should be tilted at 6 degrees toward the north. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Cilegon, Banten, though the location remains highly suitable for solar installations with proper planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance when heavy cloud cover persists. Additionally, high humidity levels throughout the year can affect equipment performance and longevity. The coastal location near the Java Sea means salt-laden air can accelerate corrosion of solar panel frames and mounting systems. Indonesia's position along the Pacific Ring of Fire means occasional volcanic ash from regional eruptions could settle on solar panels, reducing their efficiency. The tropical environment also supports rapid vegetation growth, which could create shading issues if not properly managed during installation planning.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow proper air circulation
• Use corrosion-resistant mounting systems, particularly marine-grade aluminum or stainless steel components suitable for coastal environments
• Implement regular cleaning schedules to remove dust, salt deposits, and any volcanic ash accumulation
• Choose solar panels with robust weatherproof sealing and anti-reflective coatings designed for tropical conditions
• Plan installation sites to avoid areas where vegetation could create future shading problems

Regular maintenance becomes particularly important in this tropical environment. Establishing a routine cleaning and inspection schedule will help ensure solar panels continue operating at peak efficiency despite the challenging environmental conditions. With proper installation techniques and maintenance practices, Cilegon's excellent solar resource can be effectively harnessed for reliable renewable energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

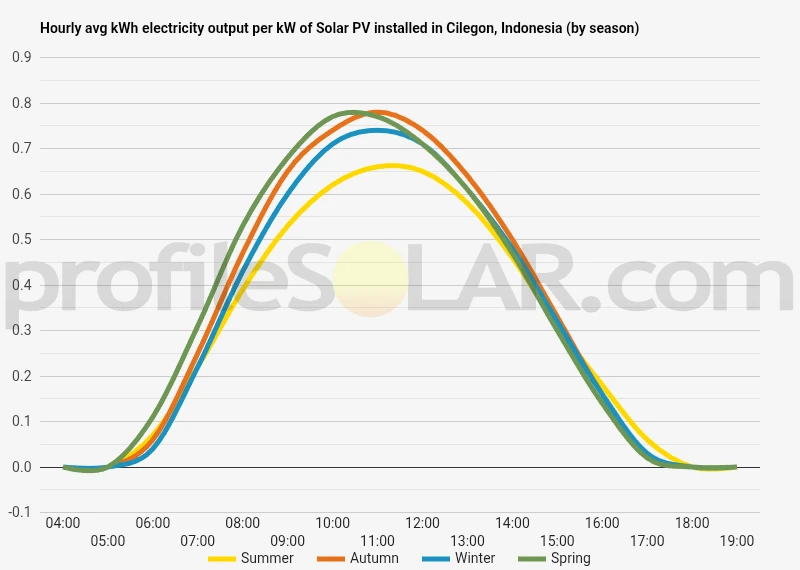

Solar output per kW of installed solar PV by season in Cilegon

Seasonal solar PV output for Latitude: -6.0147, Longitude: 106.0539 (Cilegon, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Cilegon, Indonesia

To maximize your solar PV system's energy output in Cilegon, Indonesia (Lat/Long -6.0147, 106.0539) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cilegon, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cilegon, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	12° North in Autumn	21° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cilegon, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cilegon, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cilegon, Indonesia

Topographical Features of Cilegon

Cilegon sits in the northwestern corner of Java, positioned on the Serang Peninsula in Banten Province. The city occupies a relatively flat coastal plain that extends inland from the Java Sea, with elevations generally ranging from sea level to approximately 100 meters above sea level. This low-lying terrain creates favorable conditions for large-scale development projects, as the gentle topography requires minimal grading and earthwork preparation. The landscape around Cilegon is characterized by gently rolling hills that gradually rise toward the interior of Java. To the south and southeast, the terrain becomes more undulating as it approaches the foothills of Java's volcanic mountain ranges, though these elevated areas remain at modest heights compared to the dramatic peaks found elsewhere on the island. The coastal areas feature predominantly flat alluvial plains formed by centuries of sediment deposition from nearby rivers and streams.

Drainage and Water Features

Several small rivers and streams traverse the region, flowing northward toward the Java Sea. These waterways have carved shallow valleys through the landscape, creating a network of gentle depressions and ridges across the terrain. The Ciujung River system influences much of the local topography, with its tributaries creating natural drainage patterns that extend throughout the surrounding countryside. The proximity to the coast means that much of the lower-lying land experiences seasonal flooding during heavy monsoon periods, particularly in areas where natural drainage has been altered by urban and industrial development. Elevated areas, even those rising just 20-30 meters above the surrounding plains, tend to have better drainage characteristics and remain dry throughout the year.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations lie on the gently elevated plateaus and ridges that extend southeast and southwest of Cilegon city center. These areas offer several key advantages: they maintain sufficient elevation to avoid seasonal flooding while remaining flat enough to minimize construction costs and maximize panel efficiency through optimal positioning. The rolling hills located 10-20 kilometers inland from the coast present particularly attractive opportunities. These locations benefit from stable, well-drained soils and relatively consistent topography that can accommodate extensive solar arrays without requiring significant terrain modification. The gentle slopes in these areas, typically ranging from 1-3 degrees, actually provide natural advantages for solar installations by facilitating proper drainage and air circulation around panel arrays. Areas to the southwest of Cilegon, where the landscape transitions from coastal plains to low hills, offer extensive tracts of suitable land. The topography in this region consists of broad, gently sloping surfaces interrupted by shallow valleys, creating natural boundaries that can help define solar farm perimeters while maintaining efficient layouts. The elevated areas southeast of the city, where the terrain begins its gradual rise toward Java's interior mountains, also present excellent opportunities. These locations benefit from slightly higher elevations that provide natural drainage while maintaining the relatively flat characteristics necessary for cost-effective solar installations. The stable geological conditions in these areas, formed primarily by volcanic sediments and alluvial deposits, provide solid foundations for large-scale solar infrastructure.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
