Solar Energy Potential in Jati, Jakarta, Indonesia

Jati, Jakarta, Indonesia, located in the tropics, offers a favorable environment for solar energy generation throughout the year. The consistent sunlight and the region's characteristic wet and dry seasons contribute to a relatively stable solar energy production potential. The seasonal electricity output per kW of installed solar panels in Jati is impressive and fairly consistent. Spring yields the highest output at 5.40 kWh/day, followed closely by autumn at 5.33 kWh/day. Winter production remains strong at 5.06 kWh/day, while summer sees a slight dip to 4.68 kWh/day. This data indicates that Jati is an excellent location for year-round solar energy generation, with particularly ideal conditions during spring and autumn.

Optimal Panel Installation

For fixed panel installations in Jati, Jakarta, the ideal tilt angle to maximize year-round solar production is 7 degrees North. This angle has been calculated taking into account daily solar elevation angles, optimal panel tilt, and daily PV potential, weighted by NASA's solar irradiance data. This slight tilt helps to optimize energy capture throughout the year, accounting for the Earth's elliptical orbit and the location's proximity to the equator.

Environmental and Weather Considerations

While Jati's tropical climate is generally conducive to solar energy production, there are some environmental and weather factors that could potentially impact solar panel efficiency: 1. Rainfall: The region experiences a wet season, which could lead to increased cloud cover and potentially reduce solar energy production during certain months. However, rain can also help keep panels clean, which is beneficial for efficiency. 2. Humidity: High humidity levels in the tropics can slightly reduce panel efficiency, although this effect is usually minimal. 3. Temperature: While abundant sunlight is beneficial, very high temperatures can slightly decrease solar panel efficiency. However, this is often offset by the increased sunlight available.

Preventative Measures

To mitigate these factors and ensure optimal energy production, several preventative measures can be taken: 1. Use high-quality, weather-resistant solar panels designed for tropical climates. 2. Implement proper drainage systems to prevent water accumulation on or around the panels during heavy rains. 3. Ensure adequate ventilation behind the panels to help dissipate heat and maintain efficiency. 4. Regular cleaning and maintenance to prevent dust or debris buildup, which is especially important during dry seasons. 5. Consider using microinverters or power optimizers to minimize the impact of partial shading on overall system performance.

Topographical Considerations

The predominantly flat terrain of Jati, Jakarta, with elevations ranging from sea level to about 50 meters, is generally favorable for solar installations. However, the low-lying coastal plain, with some areas below sea level, presents potential challenges: 1. Flood risk: Implement elevated mounting systems to protect panels from potential flooding. 2. Land scarcity: In densely populated urban areas, consider rooftop installations or solar carports to maximize available space. 3. Gradual terrain rise: As the land rises towards hilly areas inland, careful site selection can help avoid shading issues from nearby elevated areas. Overall, Jati's location offers excellent potential for solar energy production year-round. With proper planning and preventative measures, the environmental and topographical factors can be effectively managed to ensure optimal solar energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

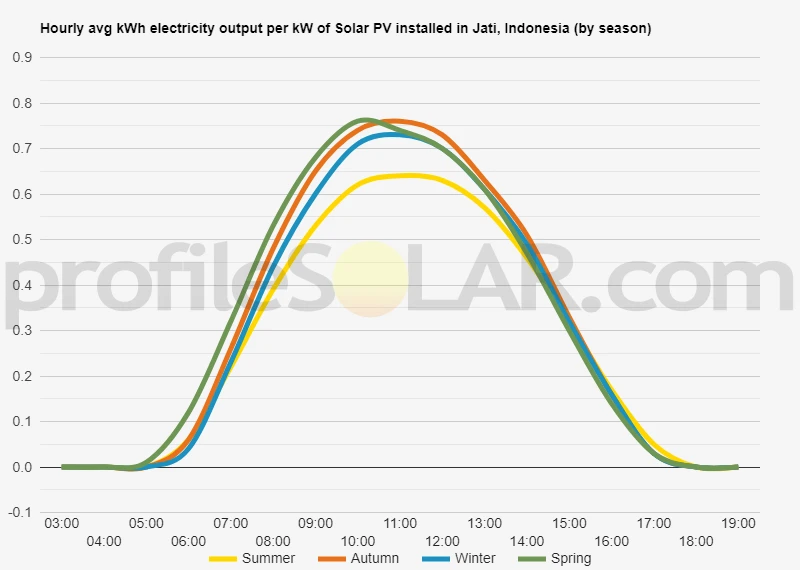

Solar output per kW of installed solar PV by season in Jati

Seasonal solar PV output for Latitude: -6.2722, Longitude: 106.8535 (Jati, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Jati, Indonesia

To maximize your solar PV system's energy output in Jati, Indonesia (Lat/Long -6.2722, 106.8535) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jati, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jati, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jati, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jati, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jati, Indonesia

The area around Jati, Indonesia, which is located in the southern part of Jakarta, is characterized by a relatively flat urban landscape. This region is part of the larger Jakarta metropolitan area, situated on the northwestern coast of Java Island. The topography is primarily low-lying, with elevations generally ranging from just a few meters above sea level to around 50 meters in some areas.

The terrain in and around Jati is mostly urbanized, featuring a dense network of buildings, roads, and infrastructure typical of a major city. While there are some small parks and green spaces scattered throughout the area, the natural landscape has been largely altered by human development. The region is part of a broader coastal plain that extends along much of Java's northern coast.

To the south of Jati, the land gradually rises towards the volcanic mountains of central Java, but this elevation change is not immediately noticeable in the vicinity of Jati itself. The area is crisscrossed by numerous rivers and canals, which play a significant role in the city's drainage system and contribute to the overall flat nature of the landscape.

Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, the urban density of Jati and its surroundings poses significant challenges for such projects. However, some potential options in the broader region could include:

1. Rooftops of large industrial buildings or warehouses in the outskirts of Jakarta, where there is more open space and fewer residential areas.
2. Reclaimed land along the coast north of Jakarta, provided it is not already designated for other development projects.
3. Areas to the east or southeast of Jakarta, where there may be more available land that is less densely populated.
4. Former agricultural lands that have been abandoned or are no longer productive, particularly in the provinces surrounding Jakarta.

It's important to note that while these areas might offer more suitable conditions for large-scale solar PV installations, any such project would still face significant challenges due to the high population density and intensive land use in the greater Jakarta area. Environmental impact assessments, land acquisition, and regulatory approvals would be crucial considerations for any large-scale solar development in this region.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
