Jayapura, Papua, Indonesia presents a highly favorable location for year-round solar PV energy generation. Located in the tropical region at coordinates -2.5375, 140.7193, this area benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Jayapura demonstrates excellent year-round performance. During summer months, solar panels can be expected to generate 5.21kWh per day for each kW of installed capacity. This increases slightly in autumn to 5.27kWh/day, and further improves in winter to 5.35kWh/day per kW installed. Spring represents the optimal season for solar generation at this location, producing an impressive 6.04kWh per day per kW of installed solar capacity. This seasonal peak makes spring particularly valuable for maximizing energy production, though the relatively small variation between seasons means the location provides reliable solar generation throughout the entire year. For fixed panel installations at Jayapura, Papua, the ideal tilt angle to maximize total year-round solar production is 3 degrees North. This shallow angle reflects the location's proximity to the equator and helps optimize energy capture across all seasons.

Environmental and Weather Challenges

Several significant environmental factors could potentially impact solar production in Jayapura. The tropical climate brings heavy rainfall during wet seasons, which can reduce solar irradiance and create challenges for optimal panel performance. High humidity levels are persistent throughout the year and can affect both equipment longevity and efficiency. The equatorial location means intense solar radiation, which while beneficial for energy production, can also accelerate equipment degradation if not properly managed. Additionally, the tropical environment supports abundant vegetation growth that could create shading issues over time if not properly maintained.

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate drainage systems and steep enough mounting to allow rapid water runoff during heavy rains
• Use corrosion-resistant mounting hardware and electrical components designed for high-humidity tropical environments
• Implement regular cleaning schedules to remove accumulated dust, debris, and organic matter that can reduce panel efficiency
• Design installations with proper ventilation behind panels to reduce heat buildup and maintain optimal operating temperatures
• Plan for ongoing vegetation management around solar installations to prevent future shading issues

Regular maintenance becomes particularly important in Jayapura's tropical environment. Establishing a routine inspection and cleaning program will help maintain peak performance and extend equipment lifespan, ensuring that the location's excellent solar potential is fully realized throughout the system's operational life.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

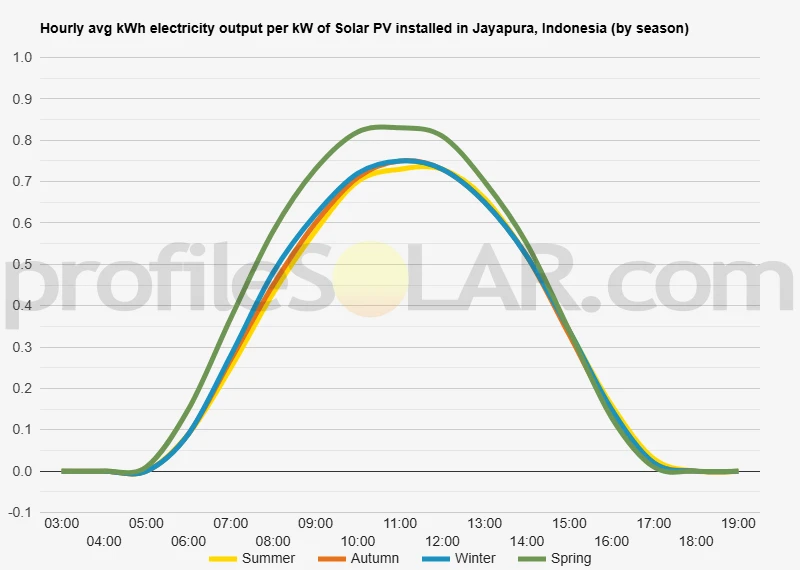

Solar output per kW of installed solar PV by season in Jayapura

Seasonal solar PV output for Latitude: -2.5375, Longitude: 140.7193 (Jayapura, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Jayapura, Indonesia

To maximize your solar PV system's energy output in Jayapura, Indonesia (Lat/Long -2.5375, 140.7193) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jayapura, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jayapura, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	9° North in Autumn	18° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jayapura, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jayapura, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jayapura, Indonesia

Topographical Features of Jayapura Region

Jayapura, the capital city of Papua Province in Indonesia, sits in a dramatically varied landscape where mountains meet the sea. The city itself is positioned along the northern coast of New Guinea, nestled between steep hills and the waters of Yos Sudarso Bay. The terrain immediately surrounding Jayapura is characterized by rolling hills and ridges that rise sharply from the coastal plain, creating a rugged topography with elevations ranging from sea level to several hundred meters within just a few kilometers of the city center.

The broader region around Jayapura is dominated by the northern foothills of the central New Guinea mountain range. These hills are covered in dense tropical rainforest and feature steep slopes, narrow valleys, and numerous small streams that flow northward toward the coast. The landscape becomes increasingly mountainous as one moves inland from the city, with peaks rising to over 1,000 meters within 50 kilometers of Jayapura.

The coastal areas near Jayapura consist of narrow strips of relatively flat land, though even these areas are often interrupted by hills that extend almost to the water's edge. The coastline itself is irregular, featuring several bays and inlets, with Yos Sudarso Bay being the most prominent. Small islands and coral reefs dot the waters offshore, while mangrove swamps occupy some of the lower-lying coastal areas.

Optimal Areas for Large-Scale Solar Development

The challenging topography around Jayapura presents significant constraints for large-scale solar photovoltaic installations. The most suitable areas would be the limited flat or gently sloping coastal plains, particularly those located east and west of the main urban area. These coastal strips offer the best combination of relatively level terrain and accessibility, though they remain quite narrow compared to ideal solar development sites.

The area around Sentani, located approximately 30 kilometers southwest of Jayapura, presents some of the most promising terrain for solar development in the region. This area features broader valleys and more extensive flat areas around Lake Sentani, though much of this land is already developed or consists of sensitive wetland environments. The airport vicinity near Sentani also offers some flatter terrain that could potentially accommodate solar installations.

Moving further inland, the Keerom Regency areas to the south and southeast of Jayapura contain some rolling hills with gentler slopes that might be suitable for solar development, particularly on south-facing slopes that could be terraced or modified for panel installation. However, these areas would require significant infrastructure development to connect to the electrical grid and would involve clearing forested land.

The coastal areas immediately north of Jayapura, while flat, are often too narrow for large-scale development and may be subject to environmental restrictions due to their proximity to marine ecosystems. Additionally, the high humidity and salt air in these coastal zones could present maintenance challenges for solar equipment.

Overall, the mountainous and heavily forested nature of the Jayapura region significantly limits options for large-scale solar development. Any substantial solar projects would likely need to be distributed across multiple smaller sites rather than concentrated in a single large installation, taking advantage of the scattered pockets of suitable terrain while working within the constraints of the challenging topography.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
