Solar Energy Potential in Jepara, Central Java, Indonesia

Jepara, Central Java, Indonesia, situated at latitude -6.7264, longitude 110.682, presents a promising location for solar energy generation due to its tropical climate. The consistent sunlight throughout the year, characterized more by wet and dry seasons than traditional four seasons, creates favorable conditions for photovoltaic (PV) systems.

The seasonal electricity output data shows strong potential across all meteorological seasons. Spring yields the highest production at 5.93 kWh per day for each kilowatt installed, followed closely by Autumn at 5.67 kWh/day and Winter at 5.58 kWh/day. Summer shows the lowest output at 4.35 kWh/day, but still delivers respectable generation.

For fixed solar panel installations in Jepara, Central Java, the ideal tilt angle to maximize year-round energy production is 8 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and the location's proximity to the equator.

Environmental and Weather Considerations

Several factors may impact solar production in Jepara that potential installers should consider:

• Monsoon seasons can significantly reduce solar efficiency due to increased cloud cover and rainfall, particularly during the wet season (approximately November to March).
• High humidity levels typical of tropical regions can create condensation on panels, potentially reducing efficiency if proper drainage isn't incorporated into the installation design.
• Volcanic ash from Indonesia's active volcanoes may occasionally settle on panels, requiring regular cleaning systems.
• Tropical storms and high winds during certain periods of the year could pose physical risks to installations not properly secured.

Preventative Measures

To maximize solar energy production in Jepara despite these challenges, several preventative measures are recommended:

• Install self-cleaning systems or implement regular maintenance schedules to address ash, dirt, and humidity-related issues.
• Use corrosion-resistant mounting hardware suitable for the humid, salty air of this coastal location.
• Consider elevated mounting systems to improve airflow beneath panels, reducing operating temperatures and improving efficiency.
• Implement robust anchoring systems designed to withstand tropical storm conditions.
• Use marine-grade components where possible to resist salt-air corrosion.

Despite these challenges, the consistently high solar radiation throughout most of the year makes Jepara an excellent candidate for solar PV installations, with proper system design accommodating local conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

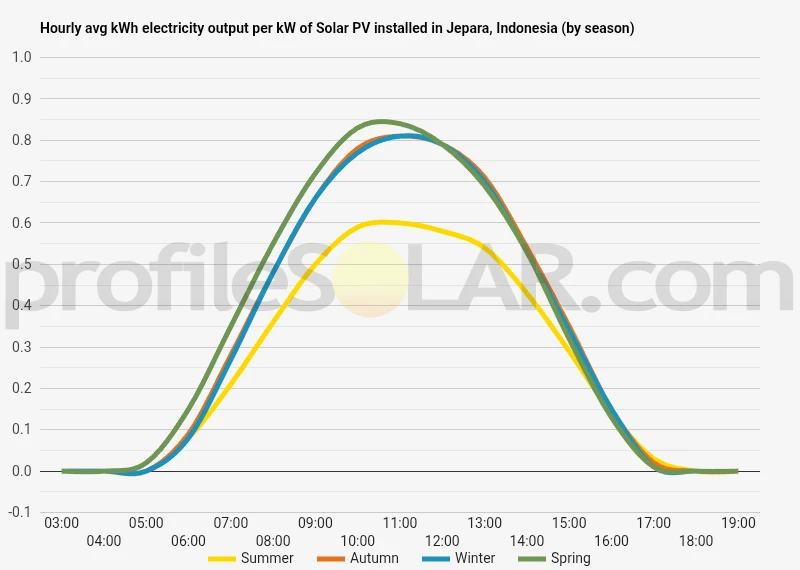

Solar output per kW of installed solar PV by season in Jepara

Seasonal solar PV output for Latitude: -6.7264, Longitude: 110.682 (Jepara, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Jepara, Indonesia

To maximize your solar PV system's energy output in Jepara, Indonesia (Lat/Long -6.7264, 110.682) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jepara, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jepara, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jepara, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jepara, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jepara, Indonesia

Jepara, situated on the northern coast of Central Java, Indonesia, presents a diverse topographical landscape. The region is characterized by coastal plains that gradually rise into rolling hills and eventually into more mountainous terrain further inland. The coastline of Jepara faces the Java Sea, featuring sandy beaches and gentle slopes that extend several kilometers inland before the elevation begins to increase noticeably.

Coastal Plains and Lowlands

The immediate vicinity of Jepara town consists primarily of flat to gently undulating coastal plains. These lowlands are predominantly utilized for agriculture, particularly rice cultivation, as well as urban and semi-urban development. The flat nature of these areas provides excellent accessibility and minimal topographical challenges. The elevation in these coastal plains typically ranges from sea level to approximately 50 meters above sea level.

Central Hills and Plateaus

Moving inland from the coast, the landscape transitions into a series of low hills and plateaus. These areas feature more pronounced undulation with occasional valleys formed by small rivers and streams that flow toward the Java Sea. The central region of Jepara Regency has elevations ranging from 50 to 200 meters above sea level. The terrain in these areas is moderately dissected, creating a patchwork of hillocks and small plateaus.

Southern Highlands and Mount Muria

The southern and southeastern portions of Jepara Regency are dominated by the northern slopes of Mount Muria, an extinct volcano that significantly influences the regional topography. Mount Muria rises to approximately 1,625 meters above sea level, creating a dramatic backdrop to the otherwise relatively gentle landscape. The slopes of Mount Muria are characterized by increasingly steep gradients, deep valleys, and dense vegetation. These areas experience higher rainfall and have more complex topographical features compared to the coastal regions.

Potential Areas for Large-Scale Solar PV Development

When considering the suitability for large-scale solar photovoltaic installations, several factors related to topography must be evaluated, including terrain flatness, orientation, accessibility, and land use considerations. The coastal plains and lowlands of Jepara present the most favorable topographical conditions for large-scale solar PV development. These areas offer several advantages: First, the flat terrain minimizes earthwork requirements and simplifies the installation of solar arrays, reducing construction costs and environmental impact. The open nature of these areas also minimizes shading concerns that might otherwise reduce solar generation efficiency. Second, the lower-elevation areas generally have better accessibility via existing road networks, facilitating the transportation of equipment and materials during construction and maintenance operations. The central hills and plateaus of Jepara could also accommodate solar installations, particularly on south-facing slopes (in the Northern Hemisphere) or north-facing slopes (in the Southern Hemisphere) that receive optimal solar exposure. However, these areas would require more careful site selection and potentially more extensive site preparation. The southern highlands near Mount Muria, while offering some suitable plateaus and clearings, generally present more challenges for large-scale solar development due to steeper slopes, more fragmented terrain, and potentially higher cloud cover associated with the mountainous microclimate. It's worth noting that actual site selection would need to balance topographical suitability with other critical factors such as proximity to electricity transmission infrastructure, current land use patterns, environmental considerations, and local regulatory frameworks. Additionally, the predominantly agricultural use of the flattest lands in Jepara may create competition between solar development and food production, a factor that would need careful consideration in planning processes.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
