Karet Semanggi, Indonesia presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone, this area benefits from consistent sunlight throughout the year, with seasonal variations primarily driven by wet and dry periods rather than the dramatic temperature and daylight changes experienced in temperate climates.

Solar Energy Production Potential

The solar energy output data for Karet Semanggi demonstrates excellent year-round performance, with daily electricity generation ranging from 4.71 to 5.42 kWh per installed kilowatt of solar capacity across the seasons. Spring emerges as the peak production period at 5.42 kWh/day per kW, closely followed by autumn at 5.35 kWh/day per kW. Winter maintains strong performance at 5.04 kWh/day per kW, while summer shows the lowest output at 4.71 kWh/day per kW, though this difference remains relatively modest. For optimal year-round energy production, solar panels at this location should be installed at a fixed tilt angle of 7 degrees facing north. This specific angle has been calculated to maximize total annual solar output by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Despite the excellent solar potential, several local factors can significantly impact solar energy production at Karet Semanggi and require careful consideration during installation and maintenance. The tropical climate brings intense monsoon seasons with heavy rainfall, particularly during the wet season. While rain can naturally clean solar panels, excessive moisture and humidity create ideal conditions for mold, algae, and fungal growth on panel surfaces, which can substantially reduce energy output. The high humidity levels also accelerate corrosion of metal components and electrical connections. Dust accumulation presents another significant challenge, especially during drier periods and due to urban pollution from Jakarta's metropolitan area. The combination of dust, pollen, and atmospheric particles can create a film on panel surfaces that blocks sunlight and reduces efficiency.

Preventative Measures for Optimal Performance

Several installation and maintenance strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce moisture buildup
• Use marine-grade or tropical-rated electrical components and connections designed to withstand high humidity and corrosion
• Apply protective coatings to metal mounting structures to prevent rust and degradation
• Implement regular cleaning schedules, particularly during and after the dry season when dust accumulation peaks
• Consider self-cleaning panel coatings or automated cleaning systems for larger installations

Regular monitoring and maintenance become particularly crucial in this tropical environment. Monthly visual inspections can help identify early signs of biological growth or component degradation, while quarterly professional cleaning can maintain optimal panel efficiency. Proper drainage around installations prevents water pooling that could lead to electrical issues or structural problems. With appropriate installation techniques and maintenance protocols, Karet Semanggi offers excellent conditions for reliable, year-round solar energy generation, making it a highly suitable location for both residential and commercial solar photovoltaic systems.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

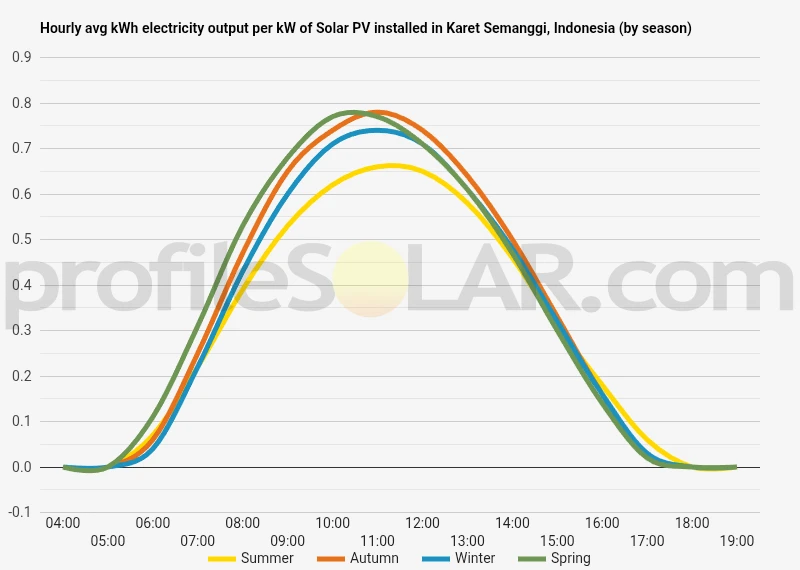

Solar output per kW of installed solar PV by season in Karet Semanggi

Seasonal solar PV output for Latitude: -6.2257, Longitude: 106.8268 (Karet Semanggi, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Karet Semanggi, Indonesia

To maximize your solar PV system's energy output in Karet Semanggi, Indonesia (Lat/Long -6.2257, 106.8268) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Karet Semanggi, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karet Semanggi, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Karet Semanggi, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karet Semanggi, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Karet Semanggi, Indonesia

Topography Around Karet Semanggi

Karet Semanggi sits in the heart of Jakarta, Indonesia's bustling capital city, positioned within the relatively flat coastal plain that characterizes much of northern Java. The area occupies part of the Jakarta metropolitan region, where the terrain consists primarily of low-lying urban landscape with minimal elevation changes. The topography here reflects the broader geographical features of the Jakarta Basin, which slopes gently from the southern highlands toward the Java Sea to the north.

The immediate vicinity around Karet Semanggi features dense urban development typical of central Jakarta, with numerous high-rise buildings, commercial complexes, and residential towers creating a heavily built-up environment. The land sits at relatively low elevation, generally ranging between 5 to 15 meters above sea level, making it part of the flood-prone areas that characterize much of Jakarta. The terrain lacks significant hills or valleys, presenting instead a predominantly flat urban landscape interrupted by infrastructure such as roads, flyovers, and the complex network of canals that help manage water flow through the city.

Moving outward from this central location, the topography remains fairly consistent across the greater Jakarta area, with gradual elevation increases only becoming apparent as one travels south toward the foothills of West Java's mountainous regions. The northern areas toward the coast maintain the same low-lying characteristics, while eastern and western directions continue the flat urban sprawl that defines the Jakarta metropolitan area.

Areas Suitable for Large-Scale Solar Development

The dense urban environment immediately surrounding Karet Semanggi presents significant challenges for large-scale solar photovoltaic installations. The heavily developed central Jakarta area offers limited open land suitable for ground-mounted solar arrays, with most available space already occupied by buildings, roads, and essential urban infrastructure. However, the flat topography that does exist would be technically suitable for solar installations if land were available.

Moving away from the city center, the most promising areas for large-scale solar development would be found in the southern portions of the greater Jakarta region, particularly in areas like Depok, Bogor, and parts of South Jakarta where land availability increases and urban density decreases. These areas maintain the beneficial flat to gently rolling terrain while offering more substantial parcels of undeveloped or underutilized land suitable for solar farms.

The coastal areas to the north, including parts of North Jakarta and extending into the Thousand Islands regency, could also present opportunities for solar development. These locations benefit from the same flat topography and potentially face fewer land use conflicts, though considerations around coastal weather conditions and soil stability would need careful evaluation.

Industrial zones and former agricultural areas in the eastern and western suburbs of Jakarta represent additional potential locations for large-scale solar installations. Areas such as Bekasi to the east and Tangerang to the west offer combinations of flatter terrain, larger available land parcels, and existing electrical infrastructure that could support significant solar development projects. These locations would avoid the space constraints and high land costs associated with central Jakarta while maintaining reasonable proximity to major electrical demand centers.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
