Solar Energy Potential in Leuwiliang, West Java, Indonesia

Leuwiliang, West Java, Indonesia offers a promising location for solar energy generation, with relatively consistent solar output throughout the year. This tropical location experiences fairly stable electricity production from solar PV systems across all meteorological seasons, making it suitable for year-round solar energy harvesting. The seasonal electricity output shows minimal variation throughout the year. Autumn stands out as the most productive season with 5.78 kWh per day for each kilowatt of installed solar capacity. Spring follows with 5.37 kWh/day, then winter with 5.27 kWh/day, and summer with 5.18 kWh/day per installed kilowatt. This pattern indicates that solar panels would generate electricity fairly consistently regardless of the time of year, with autumn being the optimal period.

Optimal Panel Installation

For fixed solar panel installations in Leuwiliang, West Java, the ideal tilt angle to maximize year-round electricity production is 8 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, taking into account the location's position relative to the equator and the sun's seasonal path.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar energy production in Leuwiliang:

• Heavy rainfall during the wet season may reduce solar efficiency due to cloud cover and direct precipitation on panels
• High humidity levels could accelerate corrosion of mounting hardware and electrical components
• Potential for volcanic ash from nearby mountains in Java could accumulate on panels
• Tropical vegetation growth may cause shading if not regularly maintained

Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures are recommended during installation and maintenance: Installing panels with self-cleaning technologies or hydrophobic coatings can help mitigate the effects of rainfall and ash accumulation. Using corrosion-resistant mounting hardware and properly sealed junction boxes is essential in this humid environment. Regular maintenance schedules should include vegetation management to prevent shading, and panels should be installed with sufficient elevation to avoid potential flooding during heavy monsoon periods. Additionally, incorporating a slight increase in the tilt angle beyond the mathematically optimal 8 degrees may help with natural cleaning during rainfall, though this would come with a minor reduction in theoretical maximum output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

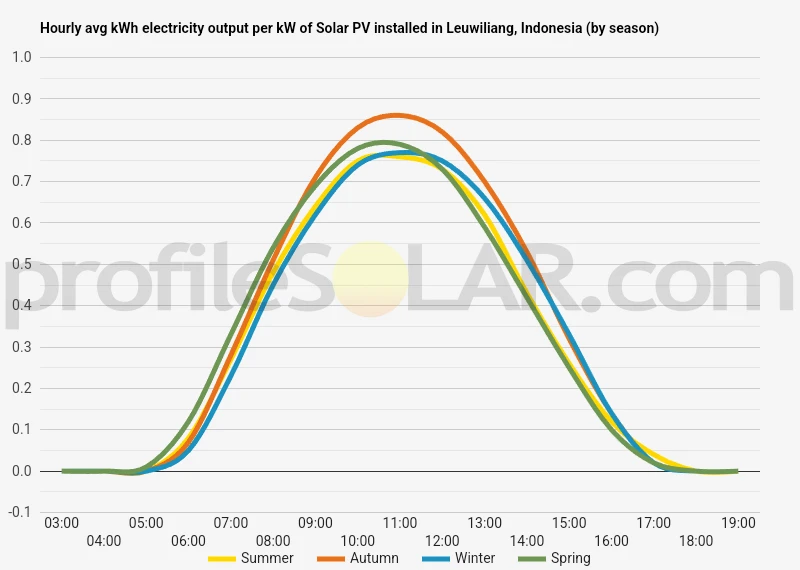

Solar output per kW of installed solar PV by season in Leuwiliang

Seasonal solar PV output for Latitude: -7.1169, Longitude: 107.5019 (Leuwiliang, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Leuwiliang, Indonesia

To maximize your solar PV system's energy output in Leuwiliang, Indonesia (Lat/Long -7.1169, 107.5019) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Leuwiliang, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Leuwiliang, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Leuwiliang, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Leuwiliang, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Leuwiliang, Indonesia

The landscape surrounding Leuwiliang, Indonesia presents a diverse topographical profile characteristic of West Java. Located in the Bogor Regency, this area features undulating terrain that transitions from gentle hills to more pronounced elevations as one moves away from the settlement centers. The region sits within the broader geographical context of Java's volcanic backbone, with the terrain showing the influence of ancient volcanic activity that has shaped much of the island's surface features.

Topographical Features

Leuwiliang's immediate surroundings consist of a mix of gently sloping plains interspersed with more pronounced hills. The elevation gradually increases toward the south and southeast, where the landscape begins to rise toward the mountainous regions of West Java. Several small rivers and streams cut through the area, creating natural drainage patterns and occasional valleys between the elevated sections. The northern approach to Leuwiliang tends to be more level, with broader expanses of flat to gently sloping terrain. This gradual topography extends through much of the northern corridor, creating areas with minimal shadowing effects from natural features. The soil composition throughout the region reflects its volcanic heritage, with generally fertile composition that supports extensive agricultural activity.

Potential Solar Development Areas

For large-scale solar photovoltaic development, the northern and northwestern approaches to Leuwiliang offer the most promising conditions. These areas combine several advantageous characteristics: The relatively flat terrain in these sections minimizes the need for extensive land preparation and reduces construction complexity. These northern plains present fewer natural obstacles that would create shadowing concerns for solar array deployment. The consistent elevation profile allows for more uniform solar exposure across larger installation footprints. Secondary potential exists in the northeastern quadrant, where moderate slopes face the optimal direction for solar collection in the southern hemisphere. While these areas would require more careful site preparation, they benefit from favorable orientation for maximum solar exposure.

Challenging Terrain

The southern and southeastern approaches to Leuwiliang present more significant topographical challenges for large-scale solar development. These areas feature more pronounced elevation changes, steeper slopes, and in some cases, denser vegetation coverage. The increased relief in these sections would complicate construction logistics and potentially create intermittent shadowing issues that would reduce overall generation efficiency. Additionally, some portions of the region, particularly in valley bottoms, may experience seasonal flooding or higher humidity levels that could affect long-term infrastructure durability. These microclimatic variations, while not prohibitive for solar development, would require more sophisticated engineering solutions to address effectively. The most suitable solar development locations would balance proximity to existing transmission infrastructure with favorable topographical characteristics, with the northern plains offering the most immediately viable options for large-scale implementation.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.
