Magetan, East Java, Indonesia presents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Production Potential

The solar energy output data for Magetan shows remarkably consistent and strong performance across all seasons. Spring delivers the highest production at 5.92 kWh per day per kW of installed solar capacity, followed by autumn and winter both producing 5.59 kWh per day per kW. Summer shows the lowest output at 5.01 kWh per day per kW, though this is still considered excellent by global standards. The relatively small variation between seasons (less than 1 kWh difference between peak and lowest production) makes this location highly reliable for solar energy planning. Spring and the transitional seasons of autumn and winter represent the ideal times for maximum solar generation at this location.

Optimal Panel Installation

For fixed panel installations at Magetan, East Java, the ideal tilt angle to maximize total year-round solar production is 9 degrees facing North. This relatively shallow angle reflects the location's proximity to the equator, where the sun travels high overhead throughout the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar production in Magetan and require consideration during installation:

• Monsoon rains and high humidity: The tropical wet season brings heavy rainfall and elevated moisture levels that can reduce solar panel efficiency and create maintenance challenges
• Dust and debris accumulation: Dry periods can lead to dust buildup on panels, while the wet season may deposit organic matter and sediment
• High temperatures: Intense tropical heat can reduce solar panel efficiency, as photovoltaic cells perform less effectively at elevated temperatures
• Potential for extreme weather: Tropical storms or severe weather events could pose risks to solar installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install proper water drainage around and beneath solar arrays to prevent water pooling and reduce humidity-related issues
• Regular cleaning schedules: Establish frequent panel cleaning routines, particularly important during dusty dry periods and after heavy rains
• Adequate ventilation: Ensure proper air circulation around panels to help manage heat buildup and maintain optimal operating temperatures
• Robust mounting systems: Use reinforced mounting structures designed to withstand tropical weather conditions and potential storm events
• Quality anti-corrosion treatments: Apply appropriate protective coatings to metal components to resist the effects of high humidity and occasional salt air

Despite these considerations, Magetan's consistent high solar output throughout the year makes it an exceptionally favorable location for solar energy investment, with proper installation and maintenance practices ensuring optimal long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

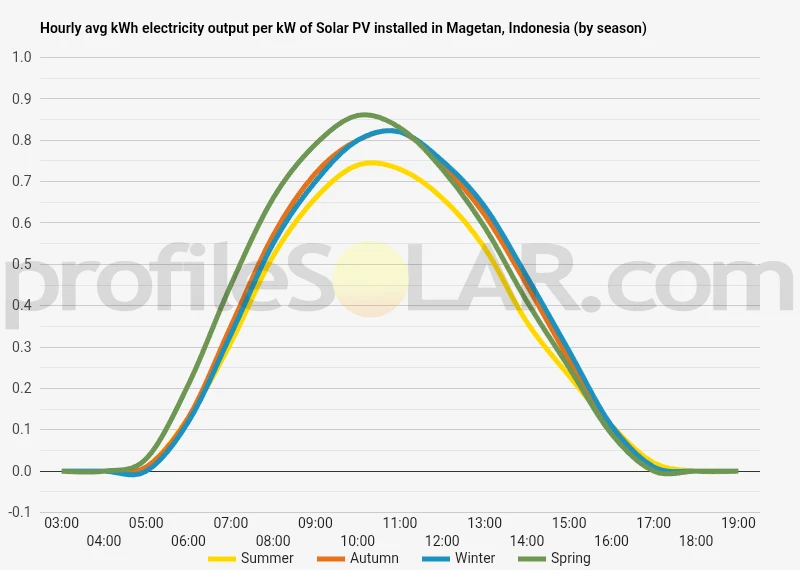

Solar output per kW of installed solar PV by season in Magetan

Seasonal solar PV output for Latitude: -7.9389, Longitude: 112.6134 (Magetan, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Magetan, Indonesia

To maximize your solar PV system's energy output in Magetan, Indonesia (Lat/Long -7.9389, 112.6134) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magetan, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magetan, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magetan, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magetan, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magetan, Indonesia

Topography Around Magetan

Magetan is situated in the mountainous region of East Java, Indonesia, nestled within a landscape characterized by significant elevation changes and volcanic terrain. The area sits at approximately 600 meters above sea level on the southern slopes of Mount Lawu, one of Java's prominent volcanic peaks that rises to over 3,200 meters. This positioning creates a naturally undulating terrain with steep gradients in many areas, particularly as the land rises northward toward the mountain's summit. The immediate vicinity of Magetan features a mix of rolling hills, river valleys, and terraced agricultural land that has been carved into the hillsides over generations. The Madiun River system flows through the region, creating fertile alluvial plains in the lower-lying areas while contributing to the overall varied topography. These river valleys provide some of the flatter terrain available in an otherwise hilly landscape. The volcanic nature of the region means that much of the soil is highly fertile, supporting intensive agriculture including rice paddies, vegetable cultivation, and plantation crops. The terrain becomes increasingly steep and forested as elevation increases toward Mount Lawu, with dense tropical vegetation covering the upper slopes and creating a natural boundary to development.

Solar PV Suitability in the Region

For large-scale solar photovoltaic installations, the most suitable areas around Magetan would be the relatively flatter river valley floors and the gentler slopes found in the southern and eastern portions of the regency. These areas offer the necessary combination of accessible terrain with manageable gradients that would minimize construction costs and maximize panel efficiency through optimal positioning. The alluvial plains along the Madiun River and its tributaries present the best opportunities for extensive solar farms. These areas typically have slopes of less than five degrees and are already cleared of dense vegetation, reducing both environmental impact and site preparation costs. The river valleys also benefit from existing road infrastructure that would facilitate construction and maintenance access. Areas to the south and southeast of Magetan town, where the terrain begins to flatten as it approaches the broader Madiun Plain, would be particularly well-suited for solar development. This region offers expansive areas of relatively level ground with good accessibility and proximity to existing electrical infrastructure. The agricultural nature of much of this land means it is already cleared and could potentially accommodate solar installations while maintaining some agricultural use beneath or between panel arrays. The eastern portions of the regency, where the topography is less influenced by Mount Lawu's steep slopes, also present favorable conditions. These areas feature more moderate elevation changes and broader expanses of suitable terrain that could accommodate the geometric requirements of large solar installations while maintaining reasonable construction and maintenance access.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
