Majenang, Central Java, Indonesia presents a favorable location for year-round solar PV energy generation. Located in the tropical zone at coordinates -7.3042, 108.7678, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output at Majenango shows relatively consistent performance across all seasons. Autumn emerges as the most productive season, generating 5.65 kWh per day per kW of installed solar capacity. Summer and spring follow closely with 5.14 and 5.18 kWh per day respectively, while winter shows the lowest but still substantial output at 4.97 kWh per day per kW installed. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 7 degrees facing north. This angle has been calculated to maximize total annual solar production by accounting for the sun's path throughout the year and weighting optimal daily angles against actual solar irradiance data.

Environmental and Weather Challenges

Several factors in Majenang could potentially impact solar energy production:

• Monsoon rains and cloud cover: Indonesia experiences distinct wet seasons with heavy rainfall and increased cloud coverage that can significantly reduce solar irradiance
• High humidity: Tropical climates maintain elevated humidity levels year-round, which can affect equipment performance and efficiency
• Volcanic ash: Indonesia's location in the Ring of Fire means potential exposure to volcanic ash from regional eruptions, which can coat panels and block sunlight
• Salt air corrosion: Proximity to coastal areas may expose installations to salt-laden air that accelerates corrosion of metal components

Preventative Measures for Installation

To maximize energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning systems: Install automated or easily accessible cleaning systems to remove dust, ash, and debris from panel surfaces
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand humid and potentially salty conditions
• Proper drainage: Design mounting systems with adequate drainage to prevent water accumulation during heavy rains
• Ventilation spacing: Allow sufficient air circulation behind panels to prevent overheating in high humidity conditions
• Quality inverters: Select inverters with appropriate IP ratings for tropical climates and ensure proper ventilation for cooling

Despite these environmental considerations, Majenang's consistent solar output throughout the year makes it a viable location for solar PV installations, particularly when proper preventative measures are implemented during installation and maintenance planning.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

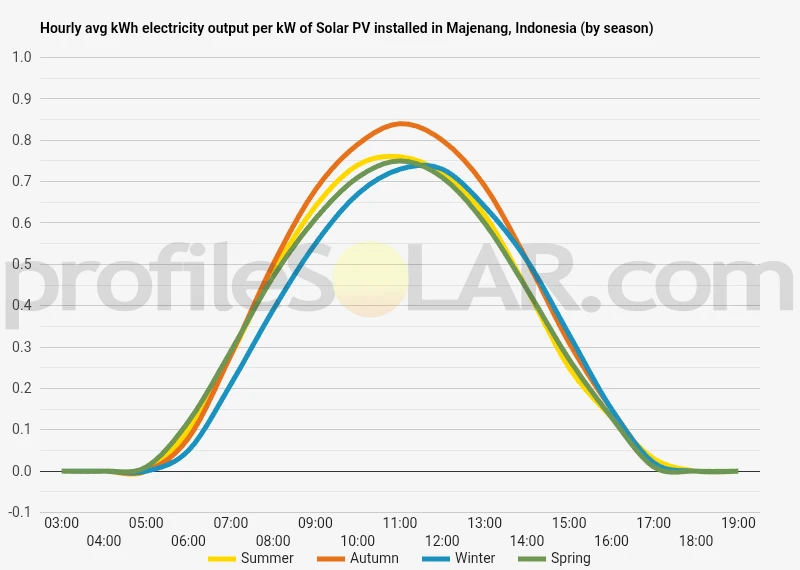

Solar output per kW of installed solar PV by season in Majenang

Seasonal solar PV output for Latitude: -7.3042, Longitude: 108.7678 (Majenang, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Majenang, Indonesia

To maximize your solar PV system's energy output in Majenang, Indonesia (Lat/Long -7.3042, 108.7678) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Majenang, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Majenang, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	14° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Majenang, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Majenang, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Majenang, Indonesia

Topographical Features Around Majenang

Majenang is situated in the Cilacap Regency of Central Java, Indonesia, positioned within a region characterized by diverse topographical features that reflect the complex geological nature of Java. The area sits at a relatively modest elevation in the southern coastal plains of Java, where the landscape transitions from coastal lowlands to the foothills of Java's mountainous interior.

The immediate vicinity of Majenang features predominantly flat to gently rolling terrain, typical of the alluvial plains that extend across much of southern Central Java. These plains have been formed over millennia by sedimentary deposits from rivers flowing down from the volcanic highlands further north. The topography gradually rises as one moves inland from the coast, creating a series of low hills and undulating terrain that eventually gives way to steeper slopes leading toward the volcanic peaks of the region.

To the north of Majenang, the landscape becomes increasingly mountainous, with the terrain rising toward the Serayu Mountains and other volcanic formations that form part of Java's central spine. These elevated areas create a natural barrier that influences local weather patterns and drainage systems. The southern areas trend toward the coastal plains that border the Indian Ocean, where the topography flattens considerably and agricultural activities dominate the land use.

River Systems and Drainage Patterns

The region around Majenang is crossed by several river systems, most notably tributaries and waterways that flow generally southward toward the coast. These rivers have carved gentle valleys through the landscape, creating natural drainage corridors that help define the local topography. The river valleys tend to be relatively shallow and wide, reflecting the generally subdued relief of the area.

The presence of these waterways has historically influenced settlement patterns and agricultural development, with fertile alluvial soils concentrated along the river corridors. The drainage patterns also create subtle variations in elevation that can be important considerations for large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Majenang present several areas that would be well-suited for large-scale solar photovoltaic installations. The most promising locations are found in the gently rolling plains that extend both east and west of the town, where the terrain offers sufficient flatness for efficient panel installation while providing adequate drainage to prevent waterlogging during the rainy season.

The areas immediately south and southeast of Majenang appear particularly favorable, as they combine relatively level terrain with good accessibility via existing road networks. These locations benefit from the stable geological conditions of the alluvial plains while avoiding the potential complications that might arise from steeper slopes or unstable soils found in more mountainous areas.

The low hills and gentle slopes found to the east and west of Majenang could also accommodate solar installations, particularly on south-facing slopes that would optimize solar exposure. These slightly elevated areas may offer advantages in terms of drainage and air circulation, which can be beneficial for solar panel efficiency and maintenance access.

Areas closer to the major river valleys should generally be avoided for large-scale solar development due to potential flooding risks and the likelihood that such fertile agricultural land would be better preserved for food production. Similarly, the steeper terrain found in the northern approaches to the mountainous interior would present engineering challenges and higher development costs that would make solar installations less economically viable.

The coastal plains to the south, while topographically suitable, may face challenges related to salt air exposure and potentially higher humidity levels that could affect equipment longevity. The optimal zones appear to be in the intermediate areas that balance favorable topography with practical considerations such as grid connectivity, land availability, and environmental impacts.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
