Solar Energy Potential in Manado, North Sulawesi, Indonesia

Manado, North Sulawesi, Indonesia, situated at 1.4586° N, 124.8357° E, offers a promising location for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than significant temperature fluctuations. The solar energy production potential in Manado remains remarkably stable across different seasons. During summer and autumn, solar panels can generate an impressive 5.89 kWh per day for each kilowatt of installed capacity. Spring shows nearly identical performance at 5.88 kWh per day. There's only a slight decrease during winter, where production averages 4.96 kWh per day per kilowatt installed. This minimal seasonal variation makes Manado an excellent candidate for year-round solar energy generation, with the most productive periods being summer and autumn, closely followed by spring. The winter months, while slightly less productive, still offer substantial energy generation potential.

Optimal Panel Installation

For fixed solar panel installations in Manado, North Sulawesi, the ideal tilt angle to maximize year-round energy production is 0 degrees. This flat orientation is optimal due to Manado's proximity to the equator, where the sun passes nearly directly overhead throughout the year. This arrangement captures the maximum possible sunlight across all seasons without requiring adjustable mounting systems.

Environmental and Weather Considerations

Despite Manado's favorable solar conditions, several environmental factors may impact solar energy production:

• Heavy rainfall during the wet season (November to April) can temporarily reduce solar efficiency due to cloud cover and direct precipitation on panels.
• High humidity levels may accelerate corrosion of mounting hardware and electrical components if not properly protected.
• Occasional volcanic ash from nearby volcanoes can accumulate on panels, reducing their efficiency.
• Typhoons, while less common than in other parts of Southeast Asia, can potentially damage installations if they're not securely mounted.

Preventative Measures

To maximize solar energy production in Manado despite these challenges, several preventative measures are recommended: Investing in high-quality, corrosion-resistant mounting hardware is essential given the humid tropical environment. Regular cleaning schedules should be implemented to remove dust, volcanic ash, and salt accumulation, particularly during the dry season when dust is more prevalent. For areas prone to strong winds, reinforced mounting systems designed to withstand typhoon conditions are advisable. Additionally, incorporating microinverters or power optimizers can help minimize production losses when parts of the array are shaded by passing clouds. Water-resistant junction boxes and properly sealed electrical connections will prevent moisture-related failures during the wet season. Finally, considering slightly oversized systems can help compensate for the reduced production during cloudy periods in the rainy season, ensuring more consistent energy output throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

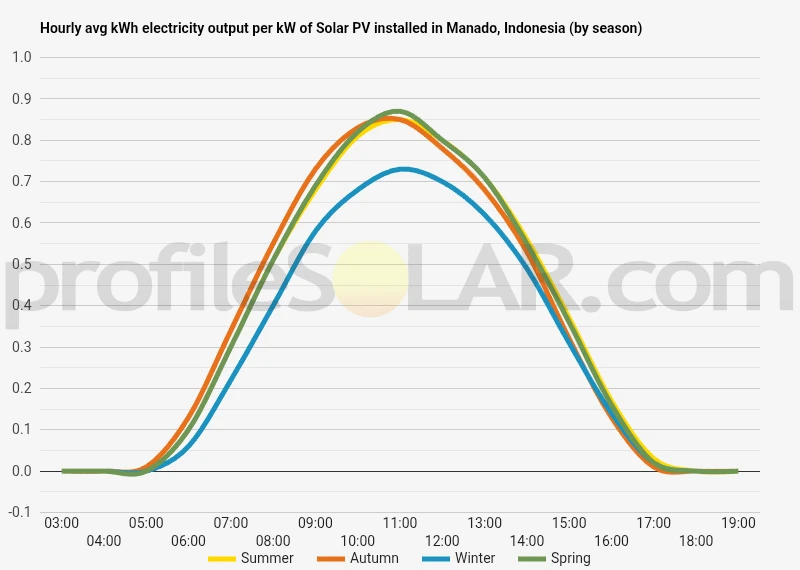

Solar output per kW of installed solar PV by season in Manado

Seasonal solar PV output for Latitude: 1.4586, Longitude: 124.8357 (Manado, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Manado, Indonesia

To maximize your solar PV system's energy output in Manado, Indonesia (Lat/Long 1.4586, 124.8357) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manado, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manado, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	7° South in Autumn	17° South in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manado, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manado, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manado, Indonesia

The topography around Manado, Indonesia presents a dramatic and diverse landscape characterized by volcanic mountains, coastal plains, and marine features that create a unique geographical setting. Manado sits on the northeastern tip of Sulawesi Island, nestled between the Celebes Sea to the north and mountainous terrain to the south. This coastal city is positioned on a relatively flat plain that gradually rises into hills and eventually into steeper mountainous regions inland. Dominating the landscape south of Manado is Mount Lokon-Empung, an active volcanic complex that rises to approximately 1,580 meters above sea level. This volcanic formation, along with others in the region, contributes to the undulating topography that characterizes much of the surrounding area. The volcanic activity throughout history has created fertile soil conditions but also results in varied elevation changes across relatively short distances.

Coastal Features

The coastline near Manado features a mix of sandy beaches, coral formations, and mangrove areas. The city itself faces Bunaken National Marine Park, with several islands visible from the mainland. This coastal positioning means that much of the immediate area around Manado proper is at low elevation, with gradual slopes leading from the shore inland.

Inland Topography

Moving inland from Manado, the landscape transitions quickly from coastal plains to rolling hills and then to more pronounced mountain ranges. The Minahasa Highlands stretch across much of the region, creating a varied terrain with valleys, plateaus, and peaks. These highlands form part of the larger mountain chain that runs through the northern arm of Sulawesi Island. Several river systems cut through the landscape, creating valleys and contributing to the irregular topography. The Tondano River is particularly significant, flowing from Lake Tondano through a valley before reaching the sea near Manado.

Potential Areas for Solar PV Development

When considering locations suitable for large-scale solar photovoltaic (PV) installations near Manado, several factors must be weighed including topography, accessibility, and land availability. The most promising areas include: The coastal plains extending east and south of Manado offer relatively flat terrain that would minimize grading costs for solar installations. These areas receive consistent solar radiation and have fewer obstructions from mountains that might otherwise cast shadows during certain parts of the day. The plateaus within the Minahasa Highlands present another opportunity. Though at higher elevations, these relatively flat areas could be ideal for solar farms as they often have fewer competing land uses than the more densely populated coastal zones. The plateaus southwest of Manado, particularly in areas approaching Tomohon, offer sufficient flat land while still being accessible via existing road networks. Agricultural areas between Manado and Bitung (to the east) include sections of cleared land with gentle slopes that could be repurposed or dual-purposed for solar energy generation. These areas benefit from existing infrastructure connections while offering the space needed for large installations. It's worth noting that while the volcanic soils in the region support agriculture, some degraded or less productive agricultural lands could be ideal candidates for solar development, creating less conflict with food production. The hilly terrain immediately surrounding Manado presents challenges for large-scale solar deployment due to the increased costs associated with construction on slopes and potential shading issues. Similarly, the steeper mountain regions to the south, while receiving good sun exposure at certain elevations, would likely prove too challenging for cost-effective development of large solar arrays. Any solar development would need to carefully consider the region's precipitation patterns, as Manado experiences significant rainfall throughout the year, with somewhat drier conditions typically occurring around August. Additionally, the volcanic nature of the region means soil stability assessments would be essential before any large-scale installation.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
