Pacitan, East Java, Indonesia represents a highly favorable location for year-round solar PV energy generation. Located in the tropical zone where sunlight remains consistent throughout most of the year, this coastal area experiences the typical wet and dry seasonal patterns rather than the traditional four-season climate found in temperate regions.

Solar Energy Production Potential

The solar energy output data for Pacitan demonstrates excellent year-round performance, with seasonal variations that actually work in favor of consistent energy production. The location can generate between 5.46 and 6.27 kWh per day for each kW of installed solar capacity, depending on the season. Autumn emerges as the peak solar generation period, producing 6.27 kWh/day per kW of installed capacity. Spring follows closely as the second-best season with 6.21 kWh/day per kW. Winter maintains solid performance at 5.58 kWh/day per kW, while summer shows the lowest output at 5.46 kWh/day per kW, though this difference represents only a modest seasonal variation. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 9 degrees facing North. This optimal angle has been calculated by analyzing daily solar elevation angles, determining daily optimal panel positioning, and weighting these angles according to actual solar irradiance potential throughout the year.

Environmental and Weather Challenges

Several significant local factors could potentially impact solar energy production in Pacitan, East Java, requiring careful consideration during installation planning. Tropical Climate Concerns The high humidity levels typical of Indonesia's tropical coastal climate can accelerate corrosion of metal components in solar installations. This moisture-rich environment demands the use of marine-grade materials and enhanced protective coatings on all metal fixtures, mounting systems, and electrical connections. Heavy monsoon rains during the wet season present both challenges and benefits. While intense rainfall can temporarily reduce solar output during storms, it also provides natural cleaning of solar panels. However, the combination of high winds and heavy precipitation requires robust mounting systems designed to withstand tropical storm conditions. Coastal Environmental Factors Pacitan's proximity to the Indian Ocean introduces salt air exposure, which can cause accelerated degradation of solar equipment. Salt deposits on panels can reduce efficiency, while saltwater corrosion threatens metal components and electrical systems. Volcanic activity in Java, though not necessarily immediate to Pacitan, East Java, can occasionally result in ash fallout that significantly reduces solar panel efficiency by blocking sunlight. Indonesia's position along the Pacific Ring of Fire makes this a regional consideration.

Preventative Installation Measures

Several specific measures can help maximize solar energy production despite these environmental challenges:

• Install marine-grade aluminum or stainless steel mounting systems with enhanced anti-corrosion treatments
• Use solar panels with robust frame sealing and anti-reflective coatings designed for tropical marine environments
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation increases
• Design mounting systems with adequate wind load ratings for tropical storm conditions
• Install electrical components in weatherproof enclosures with proper ventilation to prevent moisture buildup

Maintenance Considerations Regular maintenance becomes particularly important in Pacitan's environment. Monthly cleaning of panels helps remove salt deposits and dust accumulation. Quarterly inspections of all electrical connections and mounting hardware can identify corrosion issues before they impact performance. During volcanic ash events, immediate cleaning may be necessary once ash settles, as even thin layers can dramatically reduce solar output. Having emergency cleaning protocols and equipment readily available ensures minimal production losses during such events. Despite these environmental considerations, Pacitan's consistent tropical sunlight and favorable seasonal solar production patterns make it an excellent location for solar PV installations when proper materials and maintenance practices are employed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

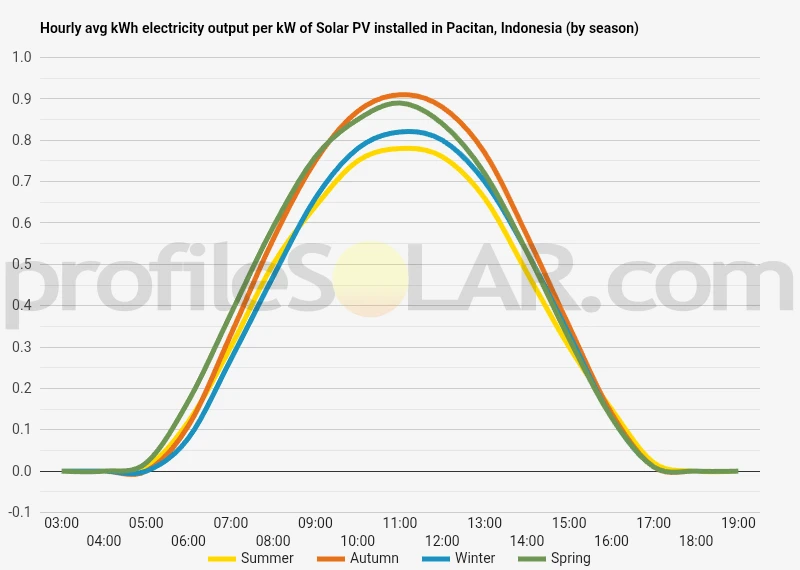

Solar output per kW of installed solar PV by season in Pacitan

Seasonal solar PV output for Latitude: -8.1995, Longitude: 111.1129 (Pacitan, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Pacitan, Indonesia

To maximize your solar PV system's energy output in Pacitan, Indonesia (Lat/Long -8.1995, 111.1129) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pacitan, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pacitan, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	15° North in Autumn	24° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pacitan, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pacitan, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pacitan, Indonesia

Topographical Features of Pacitan

Pacitan is situated in East Java, Indonesia, along the southern coast where the Java Sea meets dramatic limestone cliffs and rolling hills. The region is characterized by a complex topographical landscape that transitions from coastal plains to mountainous terrain as one moves inland. The immediate coastal area features relatively flat to gently undulating terrain, with elevations ranging from sea level to approximately 100 meters above sea level within the first few kilometers from the shore. Moving inland from Pacitan, the landscape becomes increasingly rugged, with the southern slopes of the Sewu Mountains dominating the northern portions of the regency. These limestone hills and low mountains create a series of ridges and valleys that run generally in an east-west direction. The terrain includes numerous karst formations, underground rivers, and cave systems that are characteristic of limestone geology. Elevations in the mountainous areas can reach 400 to 600 meters above sea level. The region experiences a tropical climate with distinct wet and dry seasons, and the topographical variation creates microclimates throughout the area. The coastal plains and lower elevations tend to be more humid, while the higher elevations in the interior experience slightly cooler temperatures and different precipitation patterns.

Optimal Areas for Large-Scale Solar Development

The coastal plains and gently rolling hills immediately inland from Pacitan present the most suitable conditions for large-scale solar photovoltaic installations. These areas offer relatively flat terrain that requires minimal grading and earthwork, reducing construction costs and environmental impact. The coastal zone, extending roughly 5 to 15 kilometers inland, provides expansive areas of available land with slopes generally less than 5 degrees, which is ideal for solar panel orientation and maintenance access. The agricultural areas southeast and southwest of Pacitan town center are particularly well-suited for solar development. These regions feature large, relatively flat parcels of land with existing road access and proximity to electrical infrastructure. The terrain in these areas consists primarily of alluvial soils and gentle slopes that drain well, reducing concerns about water accumulation around solar installations. Areas to avoid for large-scale solar development include the steep limestone hills and mountainous terrain to the north and northeast of Pacitan. These regions present significant challenges including excessive slopes, difficult access for construction and maintenance, potential shading from adjacent ridges, and the complex geology associated with karst formations. The heavily forested areas in the higher elevations would also require extensive clearing, making them less economically viable and environmentally appropriate for solar development. The transition zone between the coastal plains and the foothills, approximately 10 to 20 kilometers inland from the coast, offers a compromise location with moderate terrain that could accommodate solar installations with appropriate site preparation. These areas benefit from slightly higher elevations that may provide better drainage while still maintaining reasonable construction and maintenance access.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
