Pangandaran, West Java, Indonesia represents an excellent location for year-round solar energy generation, benefiting from its tropical climate where consistent sunlight is available throughout most of the year. Located at latitude -7.5552 and longitude 108.6519, this coastal area experiences the typical tropical pattern of wet and dry seasons rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Pangandaran shows remarkably consistent performance across all seasons. Autumn delivers the highest production at 5.65 kWh per day per kW of installed solar capacity, followed closely by summer at 5.18 kWh/day. Spring produces 5.14 kWh/day, while winter shows the lowest but still substantial output of 4.97 kWh/day. This consistency makes Pangandaran particularly attractive for solar installations, as there are no dramatic seasonal drops in energy production that might affect system economics or energy security. The variation between the best and worst performing seasons is less than 0.7 kWh/day, representing excellent year-round reliability. For optimal performance, solar panels at this location should be installed at a fixed tilt angle of 8 degrees facing north. This angle has been calculated to maximize total year-round solar energy production by accounting for the sun's path throughout the year, daily solar elevation angles, and weighting these factors against actual solar irradiance data.

Environmental and Weather Challenges

Several significant factors could impact solar energy production in Pangandaran, West Java, primarily related to its tropical coastal location and Indonesia's climate patterns. Monsoon Rains and Cloud Cover represent the most substantial challenge. Indonesia experiences distinct wet and dry seasons, with the wet season bringing heavy rainfall, increased cloud cover, and reduced solar irradiance. Extended periods of overcast skies during monsoon months can significantly reduce daily energy output, even though the annual averages remain strong. High Humidity and Salt Air Exposure pose ongoing concerns for solar panel longevity and performance. The coastal location means panels are constantly exposed to salt-laden air, which can accelerate corrosion of mounting systems and electrical connections. High humidity levels can also promote the growth of algae and other organic matter on panel surfaces. Tropical Storms and Extreme Weather events, while not frequent, can cause substantial damage when they occur. Indonesia's location in the tropical zone means occasional exposure to severe weather systems that could damage solar installations.

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production and system longevity in Pangandaran's challenging environment:

• Marine-Grade Components: Use solar panels, mounting systems, and electrical components specifically rated for marine environments with enhanced corrosion resistance
• Regular Cleaning Schedule: Implement frequent panel cleaning to remove salt deposits, dust, and organic growth that accumulate more rapidly in tropical coastal conditions
• Enhanced Drainage Design: Install mounting systems with superior water drainage capabilities to handle heavy monsoon rains
• Storm-Resistant Mounting: Use reinforced mounting systems designed to withstand high winds and extreme weather events
• Protective Coatings: Apply anti-corrosive treatments to all metal components and consider hydrophobic coatings on panels to improve self-cleaning

Despite these environmental challenges, Pangandaran's consistent solar energy output throughout the year makes it a highly viable location for solar installations. With proper equipment selection and maintenance practices, solar systems can perform reliably and economically in this tropical setting. The key is acknowledging the local environmental factors during the design phase and implementing appropriate protective measures from the outset.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

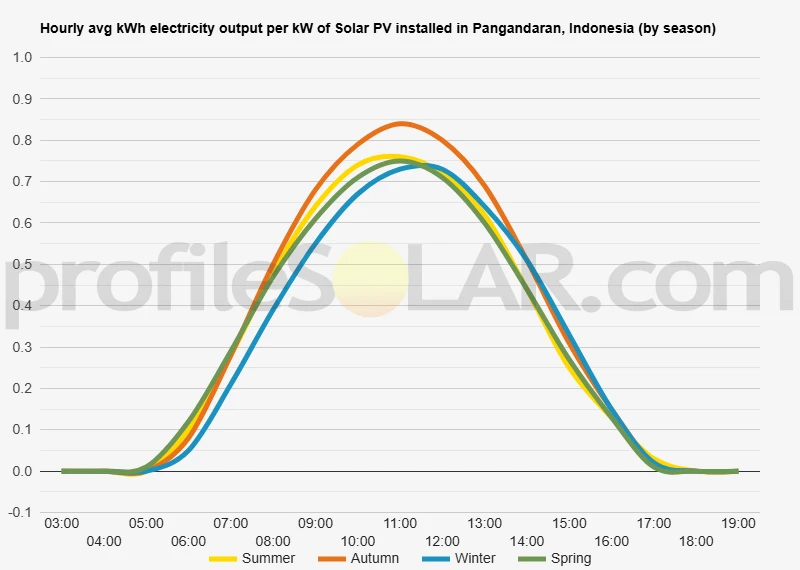

Solar output per kW of installed solar PV by season in Pangandaran

Seasonal solar PV output for Latitude: -7.5552, Longitude: 108.6519 (Pangandaran, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Pangandaran, Indonesia

To maximize your solar PV system's energy output in Pangandaran, Indonesia (Lat/Long -7.5552, 108.6519) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pangandaran, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pangandaran, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pangandaran, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pangandaran, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pangandaran, Indonesia

Topographical Features of Pangandaran

Pangandaran sits along the southern coast of West Java, where the Indian Ocean meets a landscape characterized by dramatic contrasts between coastal plains and mountainous terrain. The immediate coastal area features relatively flat to gently undulating terrain, with sandy beaches and low-lying agricultural lands extending inland for several kilometers. This coastal plain gradually transitions into rolling hills and eventually rises into more pronounced mountainous terrain as one moves northward from the shoreline. The region is dominated by volcanic geology, with several significant peaks visible in the surrounding landscape. Mount Galunggung, an active stratovolcano, rises prominently to the northeast of Pangandaran, while other volcanic formations create a varied topographical profile throughout the broader region. These volcanic origins have contributed to fertile soils in many areas, supporting extensive agricultural activities including rice paddies, plantations, and smallholder farming operations. River systems flow through the landscape, creating valleys and floodplains that interrupt the otherwise rolling terrain. The Citanduy River and its tributaries have carved channels through the landscape, creating both fertile agricultural zones and areas prone to seasonal flooding. These waterways generally flow from the mountainous interior toward the coast, creating a series of valleys and ridges that run roughly perpendicular to the shoreline.

Optimal Areas for Large-Scale Solar Development

The coastal plains extending eastward and westward from Pangandaran present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer relatively flat terrain that would minimize grading and construction costs while providing adequate space for extensive solar arrays. The land here is generally stable and well-drained, avoiding the flood-prone areas closer to major river channels. Moving inland from the immediate coastal zone, the gently rolling hills located approximately five to fifteen kilometers from the shoreline offer another viable option for solar development. While these areas would require more careful site planning to optimize panel orientation and minimize shading effects, they often feature good drainage characteristics and may have fewer competing land uses than the prime agricultural areas closer to the coast. The elevated plateaus and broader valley floors found in the foothills region could accommodate significant solar installations, particularly where existing land use is less intensive. These areas often benefit from good accessibility via existing road networks while being sufficiently elevated to avoid flood risks associated with the river systems below. Areas to avoid for large-scale solar development include the steep volcanic slopes, active floodplains along major rivers, and the densely populated coastal settlements. The mountainous terrain to the north presents significant challenges due to steep gradients, potential geological instability, and limited accessibility. Similarly, the immediate coastal zone, while flat, may face constraints from tourism development, fishing communities, and potential sea-level rise considerations. The transition zones between agricultural areas and less intensively used land often present the best balance of suitable topography, reasonable land acquisition prospects, and adequate infrastructure access for large-scale solar projects in the Pangandaran region.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
