Pasuruan, East Java, Indonesia presents an excellent location for year-round solar energy generation. This tropical city benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods rather than the dramatic temperature changes seen in temperate regions.

Solar Energy Output Performance

The solar energy production data shows remarkably consistent performance across all seasons. Summer delivers 5.01 kWh per day per kW of installed solar capacity, while autumn and winter both generate 5.59 kWh per day per kW. Spring emerges as the peak production season with 5.92 kWh per day per kW of installed solar. This consistency makes Pasuruan particularly attractive for solar installations, as energy output remains reliable throughout the year without the significant seasonal dips experienced in higher latitude locations. The relatively small variation between the lowest and highest producing seasons (less than 1 kWh difference) means solar systems can be sized with confidence for year-round energy needs.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 8 degrees facing North. This shallow angle reflects Pasuruan's proximity to the equator, where the sun travels high overhead throughout the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Pasuruan, East Java, though most can be effectively managed with proper planning and installation techniques. The tropical climate brings high humidity levels year-round, which can accelerate corrosion of solar panel frames and mounting systems. Regular maintenance schedules and the use of corrosion-resistant materials such as anodized aluminum frames and stainless steel mounting hardware can significantly extend system lifespan. Monsoon seasons deliver intense rainfall that, while beneficial for naturally cleaning solar panels, can also create temporary shading from heavy cloud cover. The wet season may see brief periods of reduced solar output, though the annual averages already account for these variations.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production in Pasuruan's tropical environment:

• Install panels with adequate spacing between rows to ensure proper air circulation and cooling
• Use mounting systems that allow panels to be tilted at the optimal 8-degree angle while ensuring proper drainage
• Select solar panels with robust weatherproofing and corrosion-resistant frames designed for tropical climates
• Implement regular cleaning schedules during dry periods when dust accumulation is highest
• Choose inverters rated for high humidity and temperature conditions

The combination of consistent solar irradiance, manageable environmental challenges, and proven mitigation strategies makes Pasuruan an highly suitable location for solar PV installations. With proper system design and maintenance practices, solar installations can reliably deliver strong energy output throughout the year in this tropical setting.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

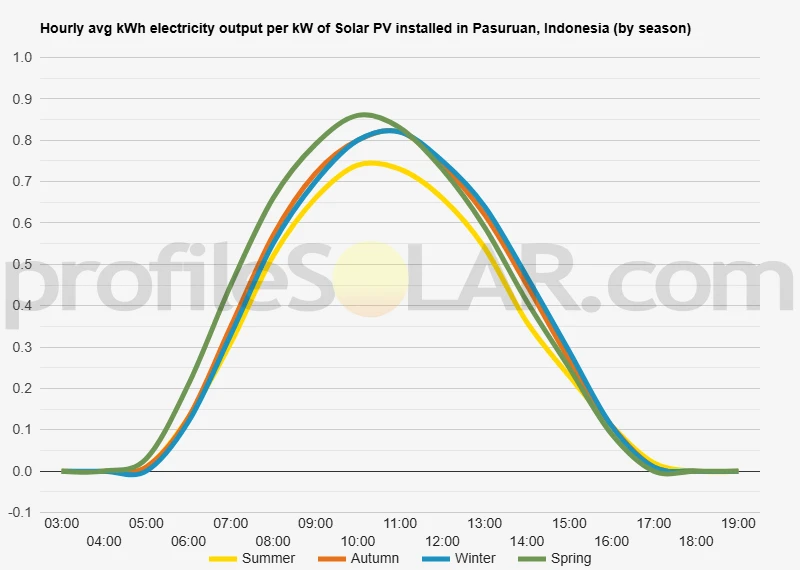

Solar output per kW of installed solar PV by season in Pasuruan

Seasonal solar PV output for Latitude: -7.7581, Longitude: 112.7241 (Pasuruan, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Pasuruan, Indonesia

To maximize your solar PV system's energy output in Pasuruan, Indonesia (Lat/Long -7.7581, 112.7241) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pasuruan, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pasuruan, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pasuruan, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pasuruan, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pasuruan, Indonesia

Topographical Features Around Pasuruan

Pasuruan sits in a remarkably diverse topographical setting in East Java, positioned between dramatic volcanic highlands to the south and expansive coastal lowlands extending northward toward the Java Sea. The city lies at the foot of the Tengger mountain range, which forms part of the broader Bromo Tengger Semeru National Park area. This positioning creates a natural amphitheater effect, with the urban center nestled in relatively flat terrain that gradually rises toward the imposing volcanic peaks.

The southern landscape is dominated by several significant volcanic formations, including Mount Bromo and the towering Mount Semeru, Java's highest peak. These volcanic mountains create steep terrain with dramatic elevation changes, rising from sea level to over 3,600 meters within a relatively short distance. The volcanic activity has shaped the land over millennia, creating unique geological features including calderas, crater lakes, and extensive lava fields that form distinctive stepped terrain.

Moving northward from Pasuruan city center, the topography transitions into broad alluvial plains and coastal lowlands. These areas represent some of the flattest terrain in the region, formed by centuries of sediment deposition from rivers flowing down from the volcanic highlands. The coastal zone features gentle gradients and stable ground conditions, making it highly accessible for development and infrastructure projects.

Optimal Areas for Large-Scale Solar Development

The coastal plains extending north and northeast of Pasuruan present the most favorable conditions for large-scale solar photovoltaic installations. These expansive flatlands offer several critical advantages including minimal grading requirements, reduced construction complexity, and excellent accessibility for equipment transport and maintenance operations. The stable geological conditions in these areas, built up from alluvial deposits, provide solid foundations for mounting systems without the complications associated with volcanic or mountainous terrain.

The agricultural areas in the northern lowlands, while currently used for farming, represent significant potential for solar development due to their flat topography and existing road infrastructure. These zones benefit from being positioned away from the volcanic highlands, avoiding the challenges of steep slopes, unstable volcanic soils, and potential seismic activity associated with active geological formations.

Areas immediately adjacent to existing transportation corridors in the northern plains would be particularly well-suited for solar installations. The flat terrain minimizes shading issues between panel arrays and allows for optimal spacing and orientation of photovoltaic systems. Additionally, these locations benefit from proximity to existing electrical grid infrastructure and major roads, reducing the costs and complexity of connecting solar facilities to the power distribution network.

The eastern coastal regions also present excellent opportunities, featuring similarly flat terrain with the added advantage of coastal winds that can help cool photovoltaic panels and potentially improve their efficiency. These areas generally have fewer competing land uses compared to the more densely populated central areas around Pasuruan city, making land acquisition more feasible for large-scale solar projects.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
