Pekalongan, Indonesia presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates -6.8882, 109.6724, this coastal city in Central Java benefits from consistent sunlight throughout the year, typical of equatorial regions where seasonal variations are primarily defined by wet and dry periods rather than temperature changes.

Solar Energy Production Potential

The solar energy output data for Pekalongan demonstrates excellent year-round performance, with seasonal variations showing consistently strong generation potential. Summer produces 4.46 kWh per day per kW of installed solar capacity, while the other seasons show even higher output: Autumn delivers 5.62 kWh/day, Winter generates 5.52 kWh/day, and Spring achieves the highest output at 5.77 kWh/day per kW installed. Spring emerges as the optimal season for solar generation, followed closely by Autumn. Even the lowest-performing season, Summer, still provides substantial energy output, making this location exceptionally well-suited for solar installations throughout the entire year. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 8 degrees North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several significant environmental factors could potentially impact solar production efficiency in Pekalongan, requiring careful consideration during installation and maintenance planning. The tropical climate brings high humidity levels year-round, which can accelerate corrosion of metal components and electrical connections. This moisture-rich environment may also promote the growth of algae, moss, or other organic matter on solar panels, reducing their efficiency over time. Pekalongan's coastal location exposes solar installations to salt-laden air, which can cause accelerated corrosion of mounting systems, frames, and electrical components. The combination of salt exposure and high humidity creates particularly challenging conditions for equipment longevity. The region experiences distinct wet and dry seasons, with the wet season bringing heavy rainfall, potential flooding, and increased cloud cover. While rain can help clean panels naturally, excessive moisture and potential water accumulation around installations pose risks to electrical systems. As a tropical coastal area, Pekalongan may also experience occasional severe weather events, including strong winds and storms, which could damage or displace solar installations if not properly secured.

Preventative Measures for Optimal Performance

Several preventative measures can significantly improve solar system performance and longevity in Pekalongan's challenging environment:

• Install marine-grade or corrosion-resistant mounting systems and hardware specifically designed for coastal environments
• Use solar panels with robust anti-corrosion coatings and sealed electrical connections rated for high-humidity conditions
• Implement proper drainage systems around ground-mounted installations to prevent water accumulation during heavy rains
• Design mounting systems to withstand high wind loads and secure installations against storm damage
• Establish regular cleaning schedules to remove salt deposits, organic growth, and accumulated debris from panel surfaces

Regular maintenance becomes particularly crucial in this environment. Monthly visual inspections and quarterly professional cleaning can help maintain optimal performance. Installing monitoring systems allows for early detection of performance issues that may indicate environmental damage or contamination. Proper electrical system protection through weatherproof enclosures, surge protection devices, and corrosion-resistant wiring will help ensure long-term reliability in this tropical coastal environment. Despite these challenges, with appropriate design considerations and maintenance practices, Pekalongan offers excellent potential for successful solar energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

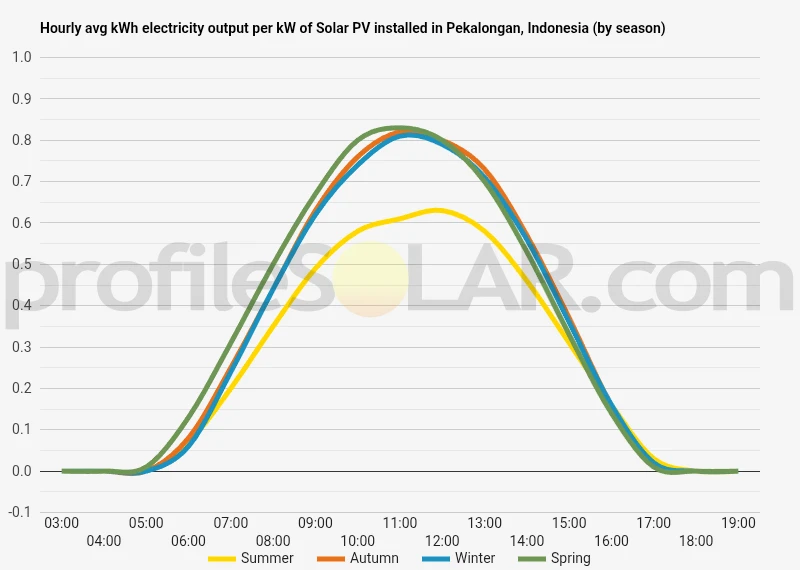

Solar output per kW of installed solar PV by season in Pekalongan

Seasonal solar PV output for Latitude: -6.8882, Longitude: 109.6724 (Pekalongan, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Pekalongan, Indonesia

To maximize your solar PV system's energy output in Pekalongan, Indonesia (Lat/Long -6.8882, 109.6724) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pekalongan, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pekalongan, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pekalongan, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pekalongan, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pekalongan, Indonesia

Topography Around Pekalongan

Pekalongan sits along the northern coast of Central Java, positioned on the relatively flat coastal plains that characterize much of Java's northern shoreline. The city itself lies at near sea level, with the immediate surrounding area featuring gentle, low-lying terrain that gradually rises as it extends southward toward the interior of the island. This coastal plain extends several kilometers inland before encountering more significant topographical changes.

The landscape immediately around Pekalongan is predominantly flat to gently undulating, with elevations rarely exceeding 50 meters above sea level within a 20-kilometer radius of the city center. This terrain consists largely of alluvial deposits from rivers flowing north from Java's mountainous interior, creating fertile agricultural land that has been extensively cultivated for centuries. Rice paddies, fish ponds, and other agricultural uses dominate the land use patterns in these low-lying areas.

Moving southward from the coast, the topography begins to change more dramatically. The foothills of Java's central mountain range become apparent approximately 30-40 kilometers south of Pekalongan, where elevations start to rise more steeply. These upland areas feature rolling hills and eventually mountainous terrain, including volcanic peaks that are characteristic of Java's geological structure.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling coastal plains surrounding Pekalongan present the most favorable topographical conditions for large-scale solar photovoltaic installations. These areas offer several key advantages for solar development, including minimal grading requirements, reduced construction costs, and optimal panel positioning capabilities. The relatively level terrain allows for efficient layout of solar arrays with consistent spacing and orientation.

The agricultural lands extending eastward and westward from Pekalongan along the coastal corridor would be particularly well-suited for solar development. These areas maintain the flat topographical characteristics while potentially offering larger contiguous parcels of land necessary for utility-scale installations. The existing agricultural use suggests that the land is generally clear of significant vegetation or structures that would complicate solar development.

Areas slightly inland from the immediate coastal zone, roughly 5-15 kilometers south of Pekalongan, represent another promising zone for solar development. This region maintains relatively flat terrain while being positioned far enough from the coast to potentially avoid some of the challenges associated with immediate coastal environments, such as salt air exposure and potential storm surge considerations.

The gently undulating terrain found in the transitional zone between the coastal plains and the foothills could also accommodate solar installations, though with potentially higher development costs due to more complex site preparation requirements. These areas might be suitable for smaller-scale installations or projects that can work with the natural contours of the land.

Less suitable areas for large-scale solar development include the steeper terrain found in the southern portions of the region, where the foothills and mountainous areas would present significant engineering and economic challenges. These areas would require extensive grading, have limited accessibility, and present ongoing maintenance difficulties that would make large-scale solar development economically challenging.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
