Ponggalan, East Java, Indonesia presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -7.6435, 111.5123, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Ponggalan demonstrates excellent year-round performance. During summer months, each kilowatt of installed solar capacity can generate approximately 5.19 kWh per day. Production increases significantly in autumn to 5.74 kWh per day, while winter maintains strong output at 5.63 kWh per day. Spring emerges as the optimal season for solar generation, producing 6.01 kWh per day per kilowatt of installed capacity. This makes spring the peak production period, followed closely by autumn. Even the lowest-performing season (summer) still delivers substantial energy output, indicating reliable year-round solar potential. For maximum efficiency, solar panels should be installed at a fixed tilt angle of 8 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant factors could impact solar production in this tropical Indonesian location:

• High humidity and frequent rainfall during wet seasons can reduce panel efficiency and create dust buildup when combined with dry periods
• Tropical storms and heavy monsoon rains may cause temporary power interruptions and potential equipment damage
• Salt air from nearby coastal areas can accelerate corrosion of metal components
• Dense cloud cover during wet seasons can substantially reduce solar irradiance
• High ambient temperatures may decrease panel efficiency despite abundant sunlight

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing for air circulation to prevent overheating and improve cooling
• Use corrosion-resistant mounting systems and regular protective coating applications to combat salt air exposure
• Implement proper drainage systems and waterproof electrical connections to handle heavy rainfall
• Schedule regular cleaning protocols to remove dust, debris, and organic growth that accumulates in humid conditions
• Choose high-quality panels with strong weather resistance ratings suitable for tropical climates
• Install surge protection and grounding systems to protect against lightning strikes common in tropical storms

Despite these environmental considerations, Ponggalan's consistent solar output across all seasons makes it an excellent location for solar energy investment, provided proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

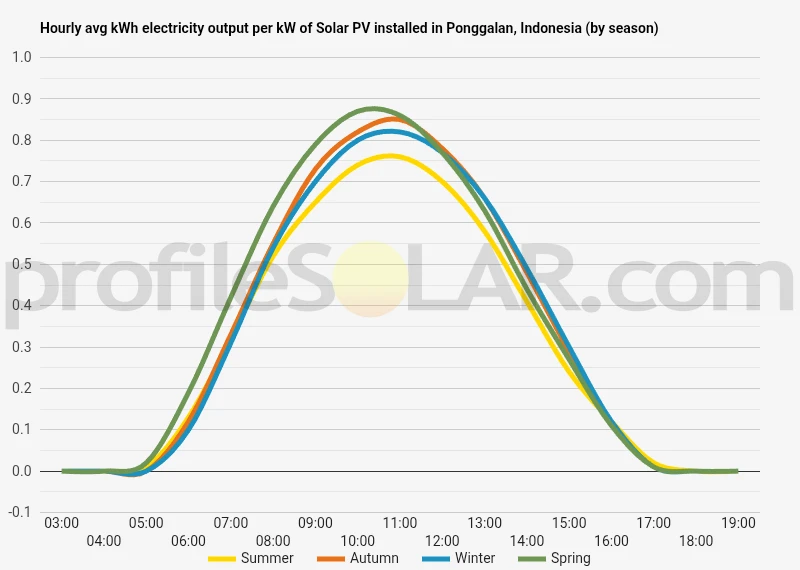

Solar output per kW of installed solar PV by season in Ponggalan

Seasonal solar PV output for Latitude: -7.6435, Longitude: 111.5123 (Ponggalan, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Ponggalan, Indonesia

To maximize your solar PV system's energy output in Ponggalan, Indonesia (Lat/Long -7.6435, 111.5123) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ponggalan, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ponggalan, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ponggalan, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ponggalan, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ponggalan, Indonesia

Topographical Features Around Ponggalan

Ponggalan is situated in the East Java province of Indonesia, positioned within a region characterized by relatively gentle rolling hills and agricultural plains. The immediate landscape around this coordinate displays typical Javanese topography, featuring a mix of cultivated farmland, small settlements, and moderate elevation changes that are common throughout the central portions of East Java.

The terrain in this area consists primarily of sedimentary formations with elevations ranging from approximately 50 to 200 meters above sea level. The landscape is punctuated by shallow valleys and low ridges, creating a undulating pattern that extends across much of the surrounding region. Agricultural activities dominate the land use, with rice paddies, sugarcane plantations, and various crop fields occupying the flatter areas and gentle slopes.

Water features in the vicinity include several small rivers and irrigation channels that support the intensive agricultural activities. These waterways generally flow in a northward direction toward the Java Sea, creating natural drainage patterns that have influenced both settlement patterns and agricultural development over centuries.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for substantial solar photovoltaic installations would be found on the elevated ridges and plateau areas to the south and southwest of Ponggalan. These higher elevation zones typically experience fewer issues with flooding during the monsoon seasons and offer more stable ground conditions for large-scale infrastructure development.

The gently sloping hillsides with southern exposure present particularly favorable conditions for solar panel orientation. These areas often have less intensive agricultural use compared to the prime rice-growing regions in the valleys, potentially reducing land use conflicts. The moderate slopes also provide natural drainage advantages while maintaining accessibility for construction and maintenance activities.

Areas to the east and northeast of Ponggalan, where the terrain becomes slightly more elevated and less densely cultivated, would also present good opportunities for solar development. These zones typically have more stable soil conditions and reduced competition from high-value agricultural activities, making land acquisition potentially more feasible for large-scale renewable energy projects.

The flatter agricultural plains, while offering easier construction access, would generally be less suitable due to their high value for food production and potential flooding risks during seasonal rains. However, some of the less productive agricultural areas on slightly elevated ground could serve as alternative sites if the preferred hillside locations prove unsuitable for development.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
