Serang, Banten, Indonesia presents a highly favorable location for year-round solar PV energy generation. Located in the tropical zone at coordinates -6.0929, 106.141, this area benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Serang demonstrates excellent year-round performance, with daily electricity generation ranging from 4.71 to 5.42 kWh per installed kilowatt of solar capacity. Spring emerges as the peak production season at 5.42 kWh/day per kW, closely followed by Autumn at 5.35 kWh/day per kW. Winter maintains strong performance at 5.04 kWh/day per kW, while Summer shows the lowest but still substantial output at 4.71 kWh/day per kW. The optimal times for solar generation at this location are Spring and Autumn, which likely correspond to periods with clearer skies and optimal sun angles. However, the relatively small variation between seasons (only 0.71 kWh difference between peak and lowest production) indicates that solar installations will provide consistent, reliable energy throughout the entire year. For maximum efficiency, solar panels should be installed at a fixed tilt angle of 7 degrees facing North. This angle has been calculated to optimize total year-round solar production by accounting for the sun's path, daily solar elevation angles, and weighted solar irradiance data specific to this latitude.

Environmental and Weather Challenges

Several significant factors could potentially impede solar production in Serang's tropical climate:

• Heavy rainfall and monsoons: Indonesia experiences distinct wet seasons with intense rainfall that can reduce solar irradiance and create cloud cover for extended periods
• High humidity: Tropical humidity can cause moisture buildup on panels, reducing light transmission and efficiency
• Dust and particulate accumulation: Dry seasons can lead to dust buildup on panels, while tropical vegetation releases pollen and organic debris
• Volcanic ash: Indonesia's location in the Ring of Fire means occasional volcanic activity could deposit ash on solar installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation and maintenance strategies should be implemented:

• Self-cleaning panel systems: Install panels with hydrophobic coatings or automated cleaning systems to handle frequent rainfall and humidity-related buildup
• Proper drainage design: Ensure mounting systems include adequate drainage to prevent water pooling and structural issues during heavy rains
• Regular maintenance scheduling: Implement frequent cleaning protocols, particularly during dry seasons when dust accumulation is highest
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand high humidity and salt air
• Elevated installations: Mount panels with sufficient ground clearance to improve air circulation and reduce moisture retention

Despite these environmental considerations, Serang's consistently high solar output throughout all seasons makes it an excellent location for solar PV installations, provided that proper planning and maintenance protocols address the tropical climate challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

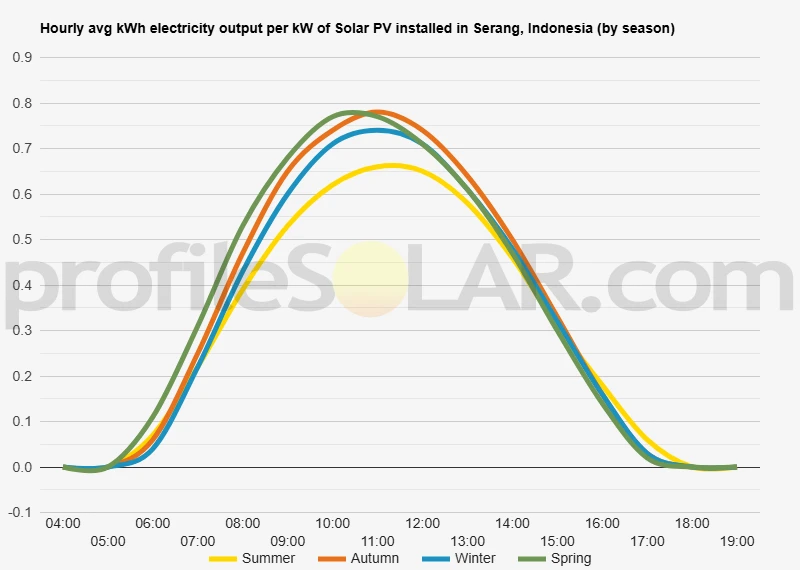

Solar output per kW of installed solar PV by season in Serang

Seasonal solar PV output for Latitude: -6.0929, Longitude: 106.141 (Serang, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Serang, Indonesia

To maximize your solar PV system's energy output in Serang, Indonesia (Lat/Long -6.0929, 106.141) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serang, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serang, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	12° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serang, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serang, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serang, Indonesia

Topographical Features Around Serang

Serang, the capital city of Banten Province in western Java, sits within a predominantly low-lying coastal plain that extends across much of northern Java. The city itself is positioned at a relatively modest elevation, surrounded by gently rolling terrain that gradually transitions from flat agricultural lands to more undulating hills as one moves inland toward the south and east. The immediate vicinity of Serang is characterized by extensive flat to gently sloping areas that were historically formed by alluvial deposits from rivers flowing northward toward the Java Sea. These plains are interspersed with small hills and ridges that rarely exceed 100 meters in elevation, creating a landscape that is generally accessible and suitable for development. The terrain becomes more varied as distance from the coast increases, with the southern portions of the region featuring more pronounced topographical relief.

Drainage and Water Features

The region around Serang is drained by several river systems that flow generally northward toward the Java Sea. These waterways have carved shallow valleys through the landscape, creating a network of gentle depressions and elevated areas between drainage channels. The proximity to the coast means that much of the land sits at relatively low elevations, with good natural drainage preventing the formation of extensive wetlands or swampy areas that might complicate large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Serang would be found on the elevated flat areas and gentle slopes that dominate the landscape south and southeast of the city center. These areas offer several advantages including stable, well-drained ground conditions and minimal topographical obstacles that would require extensive grading or earthwork. The coastal plains extending northwest and northeast of Serang also present excellent opportunities for solar development, particularly in areas that are not currently under intensive agricultural cultivation. These locations benefit from consistent elevation and good accessibility via existing road networks, while being sufficiently removed from densely populated urban areas. Areas with gentle south-facing slopes would be particularly advantageous for solar panel orientation, and such terrain can be found in the transitional zones between the flat coastal plains and the more elevated interior regions. The low hills and ridges scattered throughout the region, while not extensive, could provide additional suitable sites where the slopes are not too steep and where access can be readily established. The relatively stable geological conditions typical of this part of Java, combined with the absence of extreme topographical relief, make most areas around Serang technically feasible for large-scale solar installations from an engineering perspective. The primary considerations would be land availability, proximity to electrical infrastructure, and avoiding areas prone to seasonal flooding near the major drainage channels.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
