Subang, West Java, Indonesia presents a good location for year-round solar energy generation, with consistent performance across all seasons due to its tropical climate. The location produces between 4.97 and 5.65 kWh per day for each kW of installed solar capacity throughout the year.

Seasonal Solar Performance

Autumn emerges as the most productive season at 5.65 kWh/day per kW, followed closely by summer at 5.18 kWh/day per kW. Spring generates 5.14 kWh/day per kW, while winter shows the lowest but still respectable output at 4.97 kWh/day per kW. The variation between seasons is relatively modest at just 0.68 kWh difference between the best and worst performing periods. For fixed panel installations at this location, the optimal tilt angle is 7 degrees facing North to maximize total year-round solar production. This shallow angle reflects Subang's proximity to the equator and helps capture sunlight efficiently throughout all seasons.

Environmental Challenges and Solutions

Several local factors can significantly impact solar production in Subang and require careful consideration during installation:

• High humidity and frequent rainfall - The tropical climate brings intense wet seasons that can reduce solar irradiance and create moisture-related equipment issues
• Dust and debris accumulation - Dry seasons combined with agricultural activities can lead to significant dust buildup on panels
• Extreme temperatures and UV exposure - Consistent tropical heat can reduce panel efficiency and accelerate equipment degradation
• Potential for severe weather - Tropical storms and high winds pose structural risks to solar installations

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove essential:

• Enhanced drainage systems - Install panels with adequate spacing and proper mounting to allow rainwater runoff and prevent water pooling
• Regular cleaning protocols - Establish frequent panel cleaning schedules, particularly during dry seasons when dust accumulation peaks
• Robust mounting systems - Use corrosion-resistant materials and reinforced structures designed for tropical weather conditions
• Ventilation considerations - Ensure adequate airflow beneath panels to reduce heat buildup and maintain optimal operating temperatures
• Quality component selection - Choose panels and inverters specifically rated for high-humidity, high-temperature tropical environments

Despite these environmental challenges, Subang's consistent solar output throughout the year makes it a viable location for solar energy generation, provided proper installation techniques and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

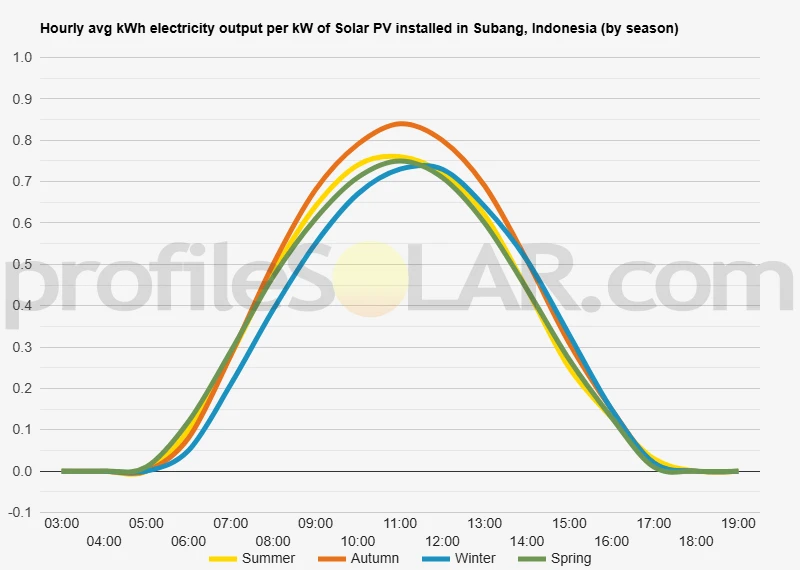

Solar output per kW of installed solar PV by season in Subang

Seasonal solar PV output for Latitude: -7.131, Longitude: 108.5267 (Subang, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Subang, Indonesia

To maximize your solar PV system's energy output in Subang, Indonesia (Lat/Long -7.131, 108.5267) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Subang, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Subang, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Subang, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Subang, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Subang, Indonesia

Topographical Features Around Subang

Subang is located in West Java, Indonesia, positioned in a region characterized by relatively gentle topography that transitions from coastal lowlands to more elevated terrain inland. The immediate area around Subang sits at a modest elevation, forming part of the broader Java coastal plain that extends along the northern shore of the island. This positioning creates a landscape that is predominantly flat to gently rolling, with gradual elevation changes rather than steep mountainous terrain.

The topography in this region is heavily influenced by its proximity to both the Java Sea to the north and the volcanic mountain ranges that form the backbone of Java to the south. The land gradually rises as one moves inland from the coast, creating a series of low hills and undulating terrain that characterizes much of northern West Java. Rivers and streams have carved gentle valleys through the landscape, contributing to the overall moderate relief of the area.

Agricultural terracing is common throughout the region, reflecting both the suitability of the terrain for farming and the long history of human settlement and land modification. The relatively stable geological conditions and moderate slopes have made this area attractive for various forms of development, from traditional rice cultivation to more modern industrial and residential uses.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Subang present several advantages for large-scale solar photovoltaic installations. The most suitable areas would be found on the flatter portions of the coastal plain, where the gentle terrain minimizes the need for extensive site preparation and grading. These areas offer the dual benefits of relatively level ground and reduced shading concerns that might arise from significant elevation changes.

The low hills and gentle slopes that characterize much of the inland area could also accommodate solar installations, particularly on south-facing slopes that would optimize sun exposure throughout the day. The moderate elevation changes in these areas are generally not steep enough to create significant engineering challenges, while still providing some topographical variety that could be advantageous for large installations.

Areas with minimal existing agricultural use or those transitioning away from traditional farming might represent the most practical locations for solar development. The relatively stable ground conditions and absence of extreme topographical features such as steep valleys or rocky outcrops make site development more straightforward and cost-effective.

The region's river valleys, while potentially offering flat terrain, would generally be less suitable due to higher moisture levels, potential flooding concerns, and the likelihood of existing agricultural or residential use. Instead, the slightly elevated areas between major waterways would provide better drainage and fewer competing land uses while maintaining the topographical advantages necessary for efficient solar installation and maintenance access.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
