Ternate, North Maluku, Indonesia presents an excellent location for year-round solar energy generation. Located in the tropical zone at coordinates 0.786°N, 127.3821°E, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than the temperature variations seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Ternate shows remarkably consistent performance across all seasons. Each kilowatt of installed solar capacity can be expected to generate 5.33 kWh per day during summer, 5.81 kWh per day in autumn, 5.43 kWh per day in winter, and 5.83 kWh per day in spring. The highest production periods occur during autumn and spring, when each kilowatt of solar panels generates 5.81-5.83 kWh daily. Even during the lower-production seasons of summer and winter, output remains strong at 5.33-5.43 kWh per day per kilowatt installed. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 1 degree facing south. This minimal tilt angle is calculated to maximize total annual solar output by accounting for the location's proximity to the equator and seasonal variations in sun position.

Environmental and Weather Challenges

Several significant factors in Ternate's tropical climate can impact solar energy production and require careful consideration during installation. The most substantial challenge is the high humidity and frequent rainfall during wet seasons. Heavy rain can temporarily reduce solar output, while persistent moisture creates ideal conditions for mold, algae, and other organic growth on solar panels. This biological buildup can significantly reduce panel efficiency by blocking sunlight. Salt air exposure presents another concern, as Ternate is located on an island in the Maluku Sea. The marine environment means solar installations face constant exposure to salt-laden air, which can accelerate corrosion of metal components and degrade electrical connections over time. Tropical storms and high winds during certain periods can pose physical threats to solar installations, potentially causing structural damage or displacing panels from their optimal positioning.

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with anti-reflective, self-cleaning coatings that help shed water and reduce organic buildup
• Use marine-grade aluminum mounting systems and stainless steel hardware specifically designed to resist salt corrosion
• Apply protective coatings to all electrical connections and use weatherproof junction boxes
• Design mounting structures to withstand high wind loads typical of tropical storm conditions
• Implement regular cleaning schedules, particularly during and after wet seasons

Proper drainage design around solar installations prevents water pooling, while adequate ventilation spacing between panels and roof surfaces helps reduce moisture retention. Regular maintenance inspections should focus on checking for corrosion, cleaning panel surfaces, and ensuring all electrical connections remain secure and dry. With these preventative measures in place, Ternate's consistent tropical sunlight makes it highly suitable for reliable, year-round solar energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

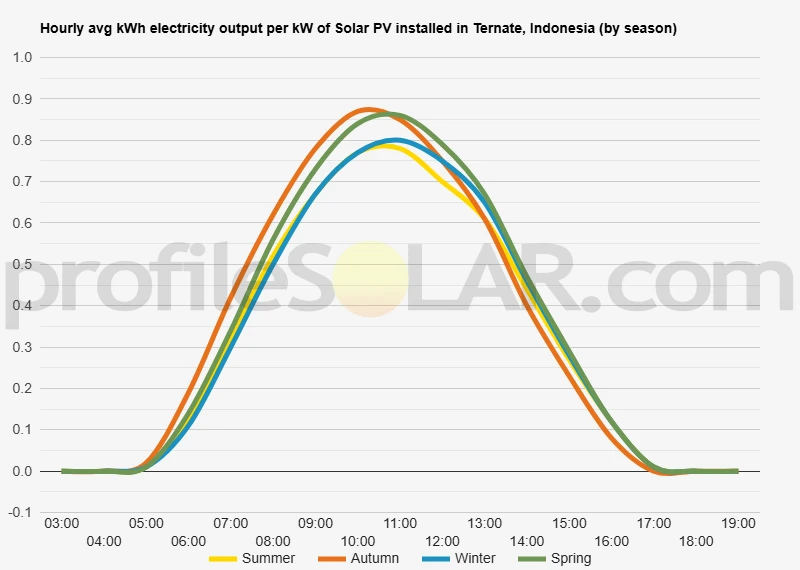

Solar output per kW of installed solar PV by season in Ternate

Seasonal solar PV output for Latitude: 0.786, Longitude: 127.3821 (Ternate, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° South in Ternate, Indonesia

To maximize your solar PV system's energy output in Ternate, Indonesia (Lat/Long 0.786, 127.3821) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ternate, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ternate, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	7° South in Autumn	16° South in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ternate, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ternate, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ternate, Indonesia

Topographical Features of Ternate

Ternate is a small volcanic island located in the Maluku Islands of eastern Indonesia, positioned right on the equator in the Molucca Sea. The island is dominated by the imposing Mount Gamalama, an active stratovolcano that rises dramatically from sea level to approximately 1,715 meters at its peak. This conical mountain forms the backbone of the island, with steep slopes radiating outward in all directions toward the coastline. The terrain around Ternate is characterized by rugged volcanic topography, with the mountain's flanks carved by numerous ravines and valleys created by centuries of erosion and volcanic activity. The slopes are generally quite steep, particularly on the northern and eastern sides of the island, making much of the terrain challenging for large-scale development. Dense tropical rainforest covers the upper elevations of Mount Gamalama, while the lower slopes transition into cultivated areas where local communities grow spices, coconuts, and other tropical crops. The coastal areas of Ternate feature narrow strips of relatively flat land between the mountain's base and the sea. These coastal plains are the most densely populated parts of the island and contain the majority of the urban development, including the main city of Ternate on the eastern shore. The coastline itself is irregular, with several small bays and inlets creating a complex shoreline around the island's perimeter.

Regional Solar Development Potential

Given Ternate's challenging volcanic topography, the island itself offers limited opportunities for large-scale solar photovoltaic installations. The steep mountain slopes and valuable agricultural land on the lower elevations make finding suitable flat areas difficult. However, the broader regional context presents more promising possibilities for solar development. The nearby island of Halmahera, located just across the narrow strait to the west of Ternate, offers significantly better topographical conditions for large-scale solar projects. Halmahera is much larger than Ternate and features extensive areas of relatively flat or gently rolling terrain, particularly in its central and southern regions. These areas have lower population density compared to Ternate and include sections of grassland and degraded forest that could potentially be developed without competing directly with prime agricultural land. The coastal plains along Halmahera's eastern shore, facing toward Ternate, present particularly attractive conditions for solar installations. These areas benefit from good accessibility via existing coastal roads and proximity to population centers that would consume the generated electricity. The terrain in these locations is generally stable, with less volcanic activity compared to Ternate itself. Another potentially suitable area lies on the smaller islands scattered throughout the region, particularly those with flatter topography and existing infrastructure connections. Some of these islands have areas of grassland or scrubland that receive consistent solar exposure throughout the year due to their equatorial location, though any development would need to carefully consider environmental impacts and local community needs. The key advantage of this equatorial region is its consistent solar resource availability throughout the year, with minimal seasonal variation in daylight duration. However, the tropical climate brings challenges including high humidity, frequent cloud cover during certain periods, and the need for robust equipment capable of withstanding the corrosive marine environment and occasional volcanic ash from active volcanoes in the region.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Indonesia? Please reach out to us and help us keep this information current. Thanks!
