Warungkondang, West Java, Indonesia represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -6.8703, 107.0975, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in temperate climates.

Solar Energy Output Performance

The solar energy production data for Warungkondang shows excellent and remarkably consistent performance across all seasons. Summer produces 4.60 kWh per day per kW of installed solar capacity, making it the lowest-producing season. However, the other three seasons deliver significantly higher outputs: Autumn generates 5.49 kWh/day, Winter produces 5.25 kWh/day, and Spring achieves the highest output at 5.62 kWh/day per kW of installed capacity. Spring emerges as the ideal time for solar generation at this location, followed closely by Autumn. Even the lowest-producing season (Summer) still delivers substantial energy output, demonstrating the location's reliability for consistent solar power generation throughout the year.

Optimal Panel Installation

For fixed panel installations at Warungkondang, West Java, the ideal tilt angle to maximize total year-round solar production is 7 degrees North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several significant local factors could potentially impede solar production at this Indonesian location, requiring careful consideration during installation planning. Monsoon and Heavy Rainfall: Indonesia experiences distinct wet and dry seasons, with the wet season bringing intense monsoon rains and frequent cloud cover. These conditions can substantially reduce solar irradiance and energy production during peak rainfall periods. Extended periods of overcast skies during monsoons represent the most significant weather-related challenge to consistent solar output. High Humidity and Heat: The tropical climate maintains high humidity levels year-round, which can affect solar panel efficiency. Additionally, excessive heat can reduce photovoltaic performance, as solar panels typically operate less efficiently at very high temperatures. Dust and Particulate Matter: Indonesia's tropical environment, combined with agricultural activities and occasional volcanic ash from the region's active volcanoes, can lead to dust accumulation on solar panels. This buildup reduces light transmission and decreases energy production over time.

Preventative Measures for Optimal Performance

Several installation strategies can help mitigate these environmental challenges and ensure maximum energy production:

• Enhanced Drainage Systems: Install robust drainage around solar arrays to prevent water accumulation and ensure proper runoff during heavy rainfall periods
• Improved Ventilation: Design installations with adequate spacing between panels and mounting surfaces to promote air circulation, helping to reduce operating temperatures and humidity effects
• Regular Cleaning Protocols: Implement scheduled cleaning routines, particularly important during dry seasons when dust accumulation is highest, and after any volcanic activity in the region
• Quality Panel Selection: Choose solar panels specifically rated for high-humidity, high-temperature tropical environments with appropriate IP ratings for moisture protection
• Corrosion-Resistant Materials: Use mounting systems and electrical components designed to withstand tropical conditions, including stainless steel or specially coated materials that resist corrosion from humidity and salt air

Despite these environmental considerations, Warungkondang's consistent high solar output across all seasons makes it an excellent location for solar PV installations. With proper planning and installation techniques that address the tropical climate challenges, solar energy systems can deliver reliable, substantial electricity generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 151 locations across Indonesia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Indonesia by location

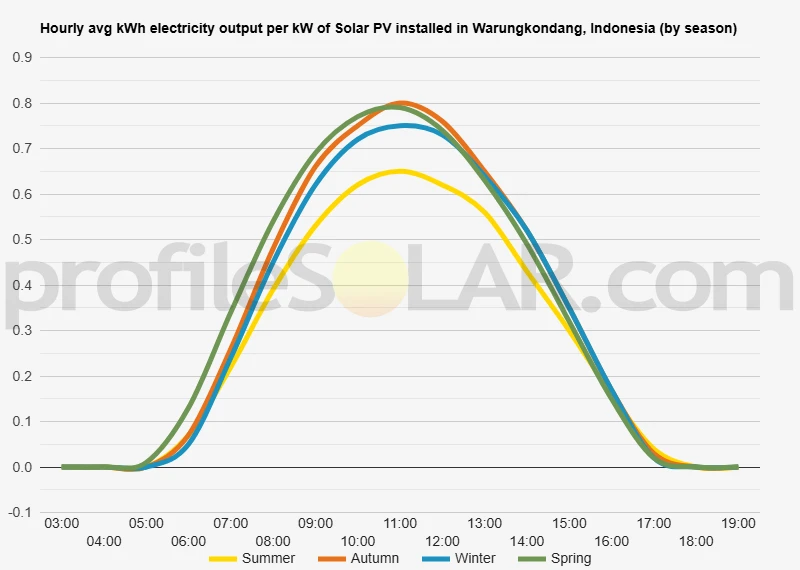

Solar output per kW of installed solar PV by season in Warungkondang

Seasonal solar PV output for Latitude: -6.8703, Longitude: 107.0975 (Warungkondang, Indonesia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Warungkondang, Indonesia

To maximize your solar PV system's energy output in Warungkondang, Indonesia (Lat/Long -6.8703, 107.0975) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Warungkondang, Indonesia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Warungkondang, Indonesia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Warungkondang, Indonesia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Warungkondang, Indonesia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Warungkondang, Indonesia

Topographical Features of Warungkondang

Warungkondang is situated in the mountainous region of West Java, Indonesia, positioned within a landscape characterized by rolling hills, steep ridges, and volcanic terrain. The area sits at a moderate elevation in the foothills of the larger mountain systems that dominate this part of Java. The topography here is typical of Indonesia's volcanic islands, featuring undulating terrain carved by ancient volcanic activity and ongoing erosion processes. The immediate surroundings of Warungkondang display a mix of gentle slopes and more pronounced inclines, with valleys cutting through the landscape where streams and small rivers have carved their paths over millennia. The terrain becomes increasingly rugged as elevation increases toward the higher peaks in the region. Agricultural terracing is common throughout the area, creating stepped landscapes that local communities have developed for rice cultivation and other crops.

Drainage and Water Features

The region's drainage patterns follow the natural contours of the mountainous terrain, with water flowing from higher elevations through a network of streams and tributaries. These waterways have created fertile valleys between the hills and ridges, contributing to the area's agricultural productivity. During the wet season, these drainage channels become more pronounced, while the dry season reveals the underlying topographical structure more clearly. The presence of these water features influences the local microclimate and vegetation patterns, creating pockets of different environmental conditions across the landscape. Valley floors tend to retain moisture longer than elevated areas, supporting different types of vegetation and land use patterns.

Optimal Locations for Large-Scale Solar Development

For large-scale solar photovoltaic installations in the Warungkondang vicinity, the most suitable areas would be the gentler slopes and relatively flat plateaus found at moderate elevations. These locations offer the dual advantages of reduced construction complexity and favorable orientation possibilities for solar panel arrays. Areas with south-facing slopes at gentle gradients would be particularly advantageous, as they can maximize solar exposure while minimizing the engineering challenges associated with steep terrain. The lower hills and elevated plains in the region present excellent opportunities for solar development, as they typically have fewer trees and less intensive agricultural use compared to the fertile valley floors. These areas also tend to have better accessibility for construction equipment and ongoing maintenance operations. The moderate elevation of these sites helps ensure good air circulation, which can improve panel efficiency by reducing operating temperatures. Valley floors, while potentially offering large flat areas, may be less suitable due to their importance for agriculture and potential for seasonal flooding or water accumulation. Additionally, these lower-lying areas might experience more frequent fog or mist formation, which could reduce solar irradiance.

Infrastructure and Access Considerations

The mountainous nature of the terrain around Warungkondang means that road access varies significantly across different potential sites. Areas closer to existing transportation networks would be more practical for large-scale solar development, as they would reduce the costs and complexity of bringing in construction materials and equipment. The existing road network generally follows valley routes and gentler slopes, making these areas more accessible for development. Sites located on stable geological formations away from active erosion zones would be preferable for long-term solar installations. The volcanic soils common in the region generally provide good drainage, which is beneficial for solar installations, but careful site assessment would be necessary to ensure ground stability for large-scale developments.

Indonesia solar PV Stats as a country

Indonesia ranks 71st in the world for cumulative solar PV capacity, with 211 total MW's of solar PV installed. Each year Indonesia is generating 1 Watts from solar PV per capita (Indonesia ranks 88th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Indonesia?

Yes, there are several incentives for businesses wanting to install solar energy in Indonesia. The Indonesian government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include tax exemptions, subsidies, feed-in tariffs, and other financial incentives. Additionally, the government has established a Renewable Energy Fund which provides grants for research and development projects related to renewable energy technologies.
