Cavan, Ulster, Ireland, situated at 53.9889° N latitude and -7.3703° E longitude, presents a mixed picture for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which impacts the overall efficiency of solar installations.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Cavan, Ulster, with an average daily output of 5.21 kWh per kW of installed solar capacity. Spring follows closely, generating 4.34 kWh/day. However, the performance drops considerably during autumn (2.07 kWh/day) and reaches its lowest point in winter (0.96 kWh/day).

These figures indicate that solar PV systems in Cavan are most effective from late spring through early autumn. During this period, longer daylight hours and generally clearer skies contribute to higher energy production. Conversely, the shorter days and often overcast conditions of late autumn and winter significantly reduce solar output.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Cavan, Ulster, fixed solar panels should be installed at a tilt angle of 46 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, considering the location's latitude and the sun's changing position across seasons.

Environmental and Weather Factors

Several factors can impact solar energy production in Cavan:

1. Cloud cover: Cavan's climate is characterized by frequent cloud cover, especially in autumn and winter, which can significantly reduce solar panel efficiency.
2. Rainfall: The region experiences considerable rainfall, which can temporarily decrease panel output and necessitate more frequent cleaning.
3. Short winter days: The limited daylight hours during winter months naturally restrict solar energy generation.

Preventative Measures

To mitigate these challenges and enhance solar energy production in Cavan, Ulster, consider the following measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions.
• Implement a regular cleaning schedule to remove dirt and debris, particularly after rainy periods.
• Consider incorporating a solar tracking system to maximize exposure to available sunlight, especially during winter months.
• Explore the possibility of combining solar PV with other renewable energy sources to ensure a more consistent year-round energy supply.

While Cavan's location presents some challenges for solar energy production, particularly during the winter months, proper system design and maintenance can still make solar PV a viable renewable energy option for this Irish town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 104 locations across Ireland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ireland by location

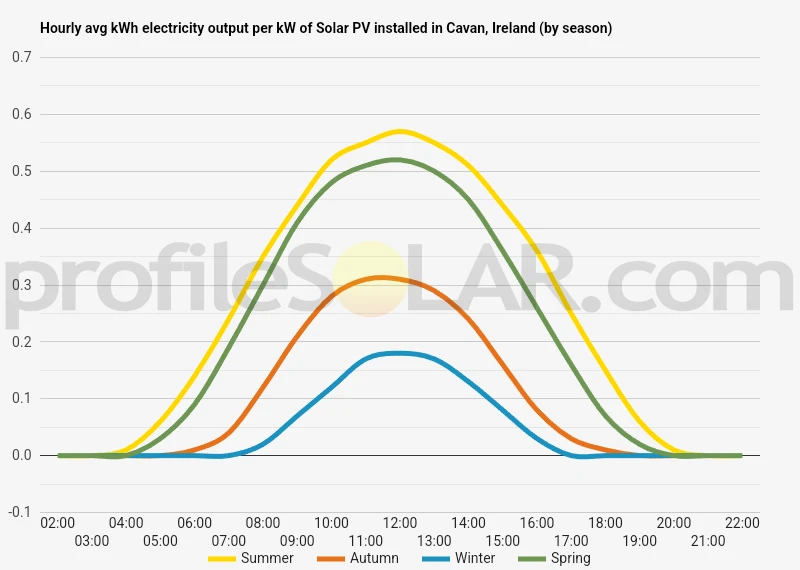

Solar output per kW of installed solar PV by season in Cavan

Seasonal solar PV output for Latitude: 53.9889, Longitude: -7.3703 (Cavan, Ireland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Cavan, Ireland

To maximize your solar PV system's energy output in Cavan, Ireland (Lat/Long 53.9889, -7.3703) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cavan, Ireland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cavan, Ireland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	57° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cavan, Ireland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cavan, Ireland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cavan, Ireland

The topography around Cavan, Ireland, is characterized by a gentle, rolling landscape typical of the Irish Midlands. This area is part of the Drumlin Belt, a region known for its small, oval-shaped hills called drumlins. These drumlins were formed by glacial activity during the last Ice Age and are scattered across the countryside, creating a distinctive undulating terrain. The town of Cavan itself sits in a shallow valley, surrounded by these drumlin hills. The area is dotted with numerous small lakes and ponds, known locally as loughs, which fill the depressions between the drumlins. These water bodies contribute to the region's picturesque scenery and rich biodiversity. The elevation in the Cavan area generally ranges from about 60 to 120 meters above sea level, with some higher points reaching up to 200 meters. This moderate elevation change contributes to the area's gentle, rolling appearance. The landscape is predominantly rural, with a mix of agricultural fields, pastures, and patches of woodland.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors come into play. The ideal locations would be: South-facing slopes: The gently sloping sides of drumlins that face south would receive the most sunlight throughout the day, making them potentially suitable for solar panel installations. These areas would benefit from maximum sun exposure, enhancing the efficiency of solar energy generation. Open farmland: The agricultural areas surrounding Cavan, particularly those with minimal tree cover, could be suitable for large-scale solar farms. These open spaces provide ample room for extensive panel arrays and have fewer obstacles that might cast shadows on the panels. Elevated areas: Some of the higher points in the region, while not mountainous, could offer good potential for solar installations. These elevated areas may receive more consistent sunlight and experience less shadowing from surrounding landscape features. It's important to note that while the topography around Cavan offers some potential for solar PV, the region's climate, characterized by frequent cloud cover and rainfall, may present challenges for large-scale solar energy production. Any development would need to carefully consider these factors, as well as local environmental and planning regulations, to determine the most suitable locations for solar installations.

Ireland solar PV Stats as a country

Ireland ranks 83rd in the world for cumulative solar PV capacity, with 136 total MW's of solar PV installed. Each year Ireland is generating 27 Watts from solar PV per capita (Ireland ranks 61st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Ireland?

Yes, there are a number of incentives available for businesses wanting to install solar energy in Ireland. The Sustainable Energy Authority of Ireland (SEAI) offers grants and other financial support for businesses that wish to install solar PV systems. Additionally, the government has introduced a Feed-in Tariff scheme which pays businesses for any excess electricity they generate from their solar panels. Finally, businesses may be eligible for tax relief on the cost of installing a solar system through the Accelerated Capital Allowance Scheme.

Do you have more up to date information than this on incentives towards solar PV projects in Ireland? Please reach out to us and help us keep this information current. Thanks!
