Moate, Leinster, Ireland, located at coordinates 53.3947, -7.7128, offers a moderate potential for solar PV energy generation that varies significantly throughout the year. This location in the Northern Temperate Zone experiences distinct seasonal variations in solar energy production.

Seasonal Solar Production

The solar energy generation potential in Moate follows a predictable seasonal pattern. Summer months yield the highest output at 5.15 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.27 kWh/day. Production drops considerably in autumn to 2.01 kWh/day, while winter sees the lowest generation at just 0.92 kWh/day per kilowatt installed.

This means a 5kW system would typically generate around 25.75 kWh on a summer day but only 4.6 kWh on a winter day. The substantial difference between summer and winter production (a ratio of approximately 5.6:1) highlights the seasonal variability at this latitude.

Optimal Installation Angle

For a fixed panel installation in Moate, Leinster, the ideal angle to maximize year-round solar production is 45 degrees facing South. This optimal tilt balances energy capture across seasons, accounting for the sun's varying elevation throughout the year at this northern latitude.

Environmental and Weather Factors

Several factors can impact solar production in Moate:

• Cloud cover and rainfall: Ireland's climate is known for frequent cloud cover and precipitation, which can significantly reduce solar irradiance reaching panels.
• Atlantic weather systems: Moate's relatively central location in Ireland means it experiences the Atlantic maritime climate with frequent weather fronts that can reduce solar gain.
• Winter fog and mist: Low-lying areas in central Ireland can experience fog that further diminishes already limited winter production.

Preventative Measures

To maximize solar production in Moate despite these challenges, consider implementing these measures:

• Self-cleaning panel technologies or regular cleaning schedules to combat the effects of dust and pollen accumulation
• High-efficiency panels specifically designed for diffuse light conditions to capture more energy on cloudy days
• Snow-shedding mounting systems with sufficient tilt to prevent winter accumulation
• Microinverters or power optimizers to minimize the impact of partial shading on system performance
• Robust mounting systems designed to withstand occasional Atlantic storm winds

While Moate isn't an ideal location for solar PV compared to sunnier regions, modern solar technology can still provide meaningful energy production, particularly from April through September when approximately 70% of the annual solar energy is generated.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 104 locations across Ireland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ireland by location

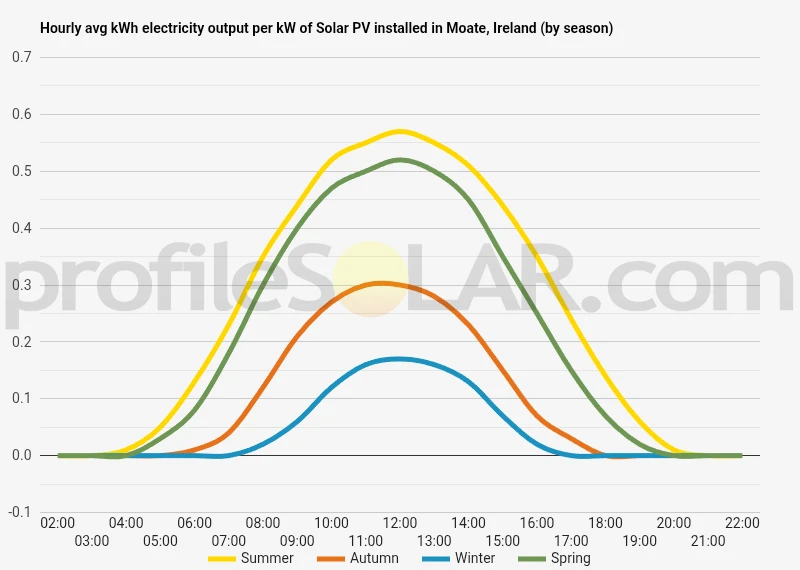

Solar output per kW of installed solar PV by season in Moate

Seasonal solar PV output for Latitude: 53.3947, Longitude: -7.7128 (Moate, Ireland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Moate, Ireland

To maximize your solar PV system's energy output in Moate, Ireland (Lat/Long 53.3947, -7.7128) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Moate, Ireland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Moate, Ireland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	57° South in Autumn	67° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Moate, Ireland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Moate, Ireland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Moate, Ireland

The landscape around Moate, Ireland, is characterized by gently undulating terrain typical of the Irish Midlands. Situated in County Westmeath, this area features a mix of low-lying agricultural lands, subtle hills, and scattered peatlands. The elevation generally ranges between 80 to 120 meters above sea level, creating a moderately flat topography with occasional gentle slopes. The surrounding countryside is predominantly rural, with a patchwork of small fields separated by hedgerows and stone walls—a classic feature of the Irish agricultural landscape. Several small rivers and streams traverse the area, including tributaries that eventually feed into the River Shannon system. Small lakes and wetland areas dot the landscape, particularly to the north and west of Moate.

Soil and Land Cover

The soils around Moate consist primarily of deep, well-drained brown earths and gray-brown podzolics, which support the region's agricultural activities. There are also areas of peaty soils, particularly in the boglands that historically characterized parts of the Midlands. The land use is predominantly pastoral, with grasslands for livestock grazing being the dominant feature, interspersed with areas of tillage farming and occasional woodlands.

Potential for Solar PV Development

For large-scale solar PV development, several areas near Moate offer promising characteristics. The most suitable locations would be: The gently sloping south-facing fields to the north of Moate would provide optimal orientation for solar collection. These areas benefit from minimal shadowing effects and good exposure throughout the day. The relatively flat agricultural lands extending east and southeast of Moate offer extensive contiguous spaces that could accommodate large solar arrays. These areas have fewer natural barriers and typically feature good access to existing road infrastructure. Some of the former peatland areas to the west, which have been harvested and are now largely unused, present opportunities for solar development. These brownfield sites often have minimal competing land uses and could be repurposed effectively for renewable energy generation.

Topographical Considerations

When assessing specific sites, several topographical factors should be considered. The subtle variations in elevation can affect solar exposure, with south-facing gentle slopes being most advantageous. The numerous small water features in the region may create localized microclimates with potential for increased morning mist or fog, which could marginally impact solar efficiency in those immediate areas. The existing hedgerows and tree lines, while ecologically valuable, can cast shadows if not properly accounted for in solar array layout. However, the generally open nature of the landscape means that with proper site selection, shading issues can be minimized. The region's agricultural heritage has resulted in a landscape that is already modified by human activity, potentially reducing some environmental barriers to development. However, the cultural and historical significance of the rural landscape pattern would need to be respected in any large-scale development planning.

Ireland solar PV Stats as a country

Ireland ranks 83rd in the world for cumulative solar PV capacity, with 136 total MW's of solar PV installed. Each year Ireland is generating 27 Watts from solar PV per capita (Ireland ranks 61st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Ireland?

Yes, there are a number of incentives available for businesses wanting to install solar energy in Ireland. The Sustainable Energy Authority of Ireland (SEAI) offers grants and other financial support for businesses that wish to install solar PV systems. Additionally, the government has introduced a Feed-in Tariff scheme which pays businesses for any excess electricity they generate from their solar panels. Finally, businesses may be eligible for tax relief on the cost of installing a solar system through the Accelerated Capital Allowance Scheme.

Do you have more up to date information than this on incentives towards solar PV projects in Ireland? Please reach out to us and help us keep this information current. Thanks!
