Location estimate

Kiryat Gat

Southern District · Israel

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

8.33

kWh/day

Autumn

5.16

kWh/day

Winter

3.61

kWh/day

Spring

7.28

kWh/day

Shared scale: 0–9.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Kiryat Gat, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 8.33 8.33 × 1 kWp = 8.33 kWh/day
Autumn 5.16 5.16 × 1 kWp = 5.16 kWh/day
Winter 3.61 3.61 × 1 kWp = 3.61 kWh/day
Spring 7.28 7.28 × 1 kWp = 7.28 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
8.33
Autumn · kWh/day
5.16
Winter · kWh/day
3.61
Spring · kWh/day
7.28

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 27 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
27°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
15°South
Autumn
Sep, Oct, Nov
36°South
Winter
Dec, Jan, Feb
46°South
Spring
Mar, Apr, May
24°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Kiryat Gat, Southern District, Israel.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 15 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

15° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 36 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

36° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 46 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

46° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 24 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

24° tilt · South

Illustrative direction; exact azimuth not recorded.

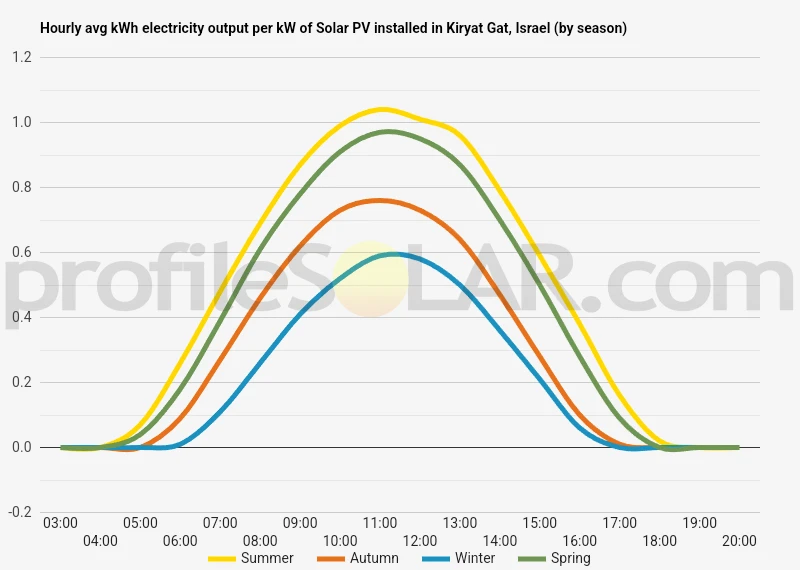

Historical hourly-by-season solar output chart for Kiryat Gat, Israel. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Kiryat Gat, Israel

Hourly profiles by season — Kiryat Gat, Israel · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Kiryat Gat, Israel · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Kiryat Gat

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 3.08 m

Proportional side viewDesign sun: ≈ 34.94° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 1.3 m
Added margin
≈ 0 m
Gap including margin
≈ 1.3 m
Panel horizontal footprint
≈ 1.78 m
Panel vertical rise
≈ 0.91 m
Pitch before margin
≈ 3.08 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
27°
Added margin
0 m
Latitude from the catalogue
31.605700000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.7820130483767358 m
Panel vertical rise
0.9079809994790935 m
Calculated clear gap
1.2994075338044742 m
Pitch before margin
3.08142058218121 m
Gap including margin
1.2994075338044742 m
Row pitch including margin
3.08142058218121 m
Design solar elevation
34.94451715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Kiryat Gat

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

<h3>Solar Energy Potential in Kiryat Gat, Israel</h3>

Read the full article

Kiryat Gat, located in southern Israel at coordinates 31.6057, 34.7604, offers a promising location for solar energy generation. This Northern Sub-Tropical region experiences significant solar radiation throughout the year, making it suitable for photovoltaic (PV) installations. The seasonal variation in solar energy production at this location is notable. Summer months yield the highest output, with an impressive 8.33 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind, generating 7.28 kWh/day. Autumn sees a moderate decrease to 5.16 kWh/day, while winter experiences the lowest production at 3.61 kWh/day. These figures indicate that Kiryat Gat is particularly well-suited for solar energy generation during the warmer months, from late spring through early autumn. The extended daylight hours and clearer skies during this period contribute to the higher energy yields. However, even during the winter months, the location still produces a reasonable amount of solar energy, making year-round generation viable. <h3>Optimal Panel Installation</h3> For fixed panels in Kiryat Gat, our recorded year-round reference is 27 degrees facing South. Roof form and nearby shading also influence the installation layout. <h3>Environmental and Weather Considerations</h3> While Kiryat Gat generally offers favorable conditions for solar energy production, there are some environmental factors to consider: Dust on module surfaces can reduce the light reaching cells. Cleaning should respond to actual deposits and installer guidance rather than an assumed local sandstorm frequency. Higher cell temperatures reduce power by a module-specific amount; a heat-resistant label or protective cover is not evidence of an output benefit. Kiryat Gat’s developed landscape also includes the Lachish stream corridor, with the watercourse crossing Paz Park. Nearby trees, buildings and the stream setting are useful site context alongside the strong summer and spring estimates. Despite these challenges, the overall solar potential in Kiryat Gat remains high. With proper planning and maintenance, solar PV installations in this location can provide a reliable and substantial source of renewable energy throughout the year.

Topography around Kiryat Gat

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

The topography around Kiryat Gat, Israel, is characterized by gently rolling hills and expansive plains typical of the northern Negev region. This area, situated approximately 56 kilometers south of Tel Aviv, features a landscape that transitions from the coastal plains in the west to the Judean foothills in the east. The terrain is predominantly composed of fertile agricultural land, interspersed with low-lying hills and shallow valleys. To the west of Kiryat Gat, the landscape gradually flattens out towards the Mediterranean coastal plain. This area is known for its rich soil and is extensively used for agriculture, with fields of crops stretching as far as the eye can see. The elevation in this direction is relatively low, with gentle slopes and occasional small hills breaking up the otherwise flat terrain. Eastward from Kiryat Gat, the low plains give way to the more undulating Shephelah landscape of hills and valleys. Within the city, the Lachish stream passes through Paz Park, adding a water and green-space corridor to the developed setting. <h3>Suitability for Large-Scale Solar PV</h3> When considering areas nearby Kiryat Gat for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be those that combine favorable topography with minimal conflict with existing land uses. The western plains and southern countryside have existing farming, settlement and infrastructure uses. Their open appearance does not establish minimal shading or low land-use conflict. Soil productivity or a drier setting alone is also not a basis for treating land as available for a solar farm. A project needs to fit the actual parcel, horizon and planning context. Within the city, roofs have a different land-use setting from ground-mounted arrays near fields or the Lachish corridor. While the hilly areas to the east might seem less suitable due to their more varied topography, some of the broader valleys between the hills could also accommodate solar installations. These locations would require more careful planning to maximize sun exposure and minimize shading effects from surrounding elevations. It's important to note that any large-scale solar PV project would need to consider not just topography, but also proximity to existing power infrastructure, environmental impact, and local land-use regulations. The semi-arid climate of the region, with its high number of sunny days per year, generally favors solar energy production throughout the area surrounding Kiryat Gat.

Technical location reference

Approximate map point used for Kiryat Gat, Israel

This coordinate is the calculation reference for Kiryat Gat, Israel. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
31.605700000000000000, 34.760400000000000000
Originally displayed coordinate
lat31.6057 / long34.7604

How the estimate works

How this Kiryat Gat estimate was calculated

Here is how I calculated the location estimate for Kiryat Gat, Israel.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Kiryat Gat Location estimate includes and leaves out

Use the Kiryat Gat figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
