Qiryat Yam, Haifa, Israel offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the Northern Sub Tropics at coordinates 32.8506, 35.0668, this coastal city benefits from abundant sunshine throughout most of the year.

Seasonal Solar Performance

The solar energy output varies significantly across seasons, with summer providing peak generation and winter showing the lowest production. Summer months deliver exceptional performance at 8.63kWh per day per kW of installed capacity, making this the ideal time for maximum solar energy harvest. Spring follows as the second-best season with 7.19kWh per day per kW, offering nearly as much solar potential as summer. Autumn provides moderate output at 5.23kWh per day per kW, while winter drops to 3.47kWh per day per kW, though this still represents reasonable production for the season. For optimal year-round energy capture, solar panels should be installed at a fixed angle of 28 degrees tilted toward the south. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Qiryat Yam and require careful consideration during installation planning. The Mediterranean coastal location brings salt air and humidity that can accelerate corrosion of solar equipment and mounting systems. Regular cleaning becomes essential as salt deposits can accumulate on panel surfaces, reducing their efficiency over time. Desert dust and sand particles carried by regional winds can settle on solar panels, creating a film that blocks sunlight and decreases energy output. This issue becomes more pronounced during dry periods and when winds blow from inland desert areas. The region occasionally experiences heavy rainfall and storms, particularly during winter months, which could damage improperly secured installations or cause temporary reductions in solar output due to cloud cover.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation. Choose marine-grade mounting hardware and corrosion-resistant materials specifically designed for coastal environments. Stainless steel or aluminum components with appropriate protective coatings will withstand salt air exposure much better than standard materials. Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for thermal expansion. This also makes cleaning and maintenance more accessible. Implement a regular cleaning schedule, ideally monthly or bi-monthly, to remove salt deposits and dust accumulation. Consider installing automated cleaning systems for larger installations to maintain optimal performance with minimal manual intervention. Ensure robust structural mounting that can withstand strong coastal winds and potential storm conditions. Professional engineering assessment of wind loads specific to the coastal location will help determine appropriate mounting specifications. Position panels to minimize shading from nearby structures or vegetation, and consider the potential for future construction that might create shadows. The excellent solar resource at this location makes it worth investing in proper installation techniques to capture maximum energy year-round.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 100 locations across Israel. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Israel by location

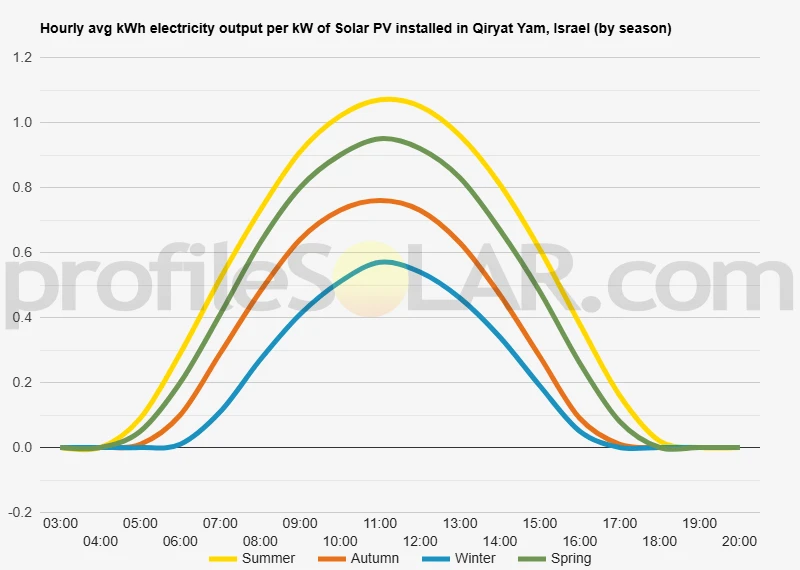

Solar output per kW of installed solar PV by season in Qiryat Yam

Seasonal solar PV output for Latitude: 32.8506, Longitude: 35.0668 (Qiryat Yam, Israel), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Qiryat Yam, Israel

To maximize your solar PV system's energy output in Qiryat Yam, Israel (Lat/Long 32.8506, 35.0668) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Qiryat Yam, Israel

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Qiryat Yam, Israel. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Qiryat Yam, Israel

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Qiryat Yam, Israel.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Qiryat Yam, Israel

Topographical Features of Qiryat Yam

Qiryat Yam sits along Israel's Mediterranean coastline, positioned on relatively flat coastal plains that characterize much of this region. The city itself occupies low-lying terrain at near sea level, with the landscape gently undulating rather than presenting any dramatic elevation changes. The immediate area features the typical sandy soils and sedimentary formations common to Mediterranean coastal zones. Moving inland from Qiryat yam, the topography begins a gradual ascent toward the Carmel Mountain range, which rises to the southeast. These mountains create a natural backdrop to the coastal plain, with elevations increasing steadily as one moves away from the Mediterranean shore. The transition from coastal flatlands to the foothills occurs over several kilometers, providing varied elevation zones within the broader region. The coastal plain itself extends both north and south of Qiryat Yam, creating extensive areas of relatively uniform, flat terrain. This plain is interrupted occasionally by small wadis (seasonal watercourses) and gentle ridges, but overall maintains a consistent low elevation profile. The Mediterranean Sea forms the western boundary, while agricultural lands and urban development occupy much of the available flat space.

Optimal Areas for Large-Scale Solar Development

The expansive coastal plains extending inland from Qiryat Yam present excellent opportunities for large-scale solar photovoltaic installations. These areas offer the fundamental requirements of flat, stable ground with minimal shading obstacles. The relatively uniform elevation reduces construction complexity and allows for efficient panel arrangement across substantial areas. Moving slightly inland from the immediate coastal zone provides the best balance of accessible flat land while avoiding potential salt spray issues from the Mediterranean. The agricultural areas southeast of Qiryat Yam, where the coastal plain meets the gentle slopes leading toward the Carmel range, offer particularly suitable conditions. These locations benefit from stable ground conditions and good accessibility via existing road networks. The northern sections of the coastal plain also present strong potential, where open areas provide unobstructed southern exposure essential for optimal solar collection. The terrain in these areas remains consistently flat while offering sufficient distance from urban development to allow for large-scale installations. The absence of significant topographical barriers ensures minimal shading issues throughout the day. Areas with slight southern-facing slopes toward the Carmel foothills can actually enhance solar collection efficiency compared to completely flat terrain. These gentle gradients, typically found several kilometers inland from the coast, combine favorable orientation with the practical benefits of good drainage and stable soil conditions necessary for supporting extensive solar arrays.

Israel solar PV Stats as a country

Israel ranks 29th in the world for cumulative solar PV capacity, with 2,555 total MW's of solar PV installed. This means that 4.70% of Israel's total energy as a country comes from solar PV (that's 17th in the world). Each year Israel is generating 277 Watts from solar PV per capita (Israel ranks 16th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Israel?

Yes, there are several incentives for businesses wanting to install solar energy in Israel. The Israeli government offers a variety of financial incentives and subsidies for businesses that install solar energy systems. These include grants, tax credits, and low-interest loans. Additionally, the government has implemented a feed-in tariff program which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to ensure that businesses can recoup their investment in solar energy over time.

Do you have more up to date information than this on incentives towards solar PV projects in Israel? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
