Qvutsat Yavne, Central District, Israel, located in the Northern Sub Tropics, offers a promising location for solar PV energy generation throughout the year, though with notable seasonal variations. The site experiences significant differences in solar energy production across the four seasons.

Seasonal Solar Production

Solar panels at this location show strong performance in summer, producing 8.33kWh of electricity per day for each kW of installed capacity. Spring follows closely with 7.28kWh/day, while autumn delivers a moderate 5.16kWh/day. Winter represents the least productive period, generating only 3.61kWh/day.

These figures demonstrate that Qvutsat Yavne experiences more than double the solar production in summer compared to winter months, which is typical for locations in the Northern Sub Tropics. The transition seasons of spring and autumn show the gradual increase and decrease in solar potential as the year progresses.

Optimal Panel Installation

For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 27 degrees facing South. This angle has been calculated based on the site's specific latitude and weighted by the daily PV potential throughout the year, accounting for Earth's elliptical orbit.

Environmental Considerations

Several environmental factors could affect solar production at this location. Dust and sand accumulation represents a significant challenge in this region, as Qvutsat Yavne is located in a semi-arid climate zone. During the summer months, dust storms can temporarily reduce panel efficiency by up to 30% if not addressed.

To mitigate these issues, installations should include:

• Regular cleaning schedules, potentially with automated cleaning systems
• Anti-soiling coatings on panel surfaces
• Slightly steeper tilt angles in dustier areas to promote self-cleaning during rain

Additionally, the region experiences occasional heatwaves with temperatures exceeding 35°C, which can reduce panel efficiency. Ensuring adequate airflow beneath the panels and using high-temperature rated components can help maintain production during these periods.

Overall, Qvutsat Yavne provides excellent conditions for solar energy generation, with particularly strong production from March through October. With proper installation and maintenance practices addressing the region's specific challenges, solar PV systems can perform exceptionally well at this location.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 100 locations across Israel. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Israel by location

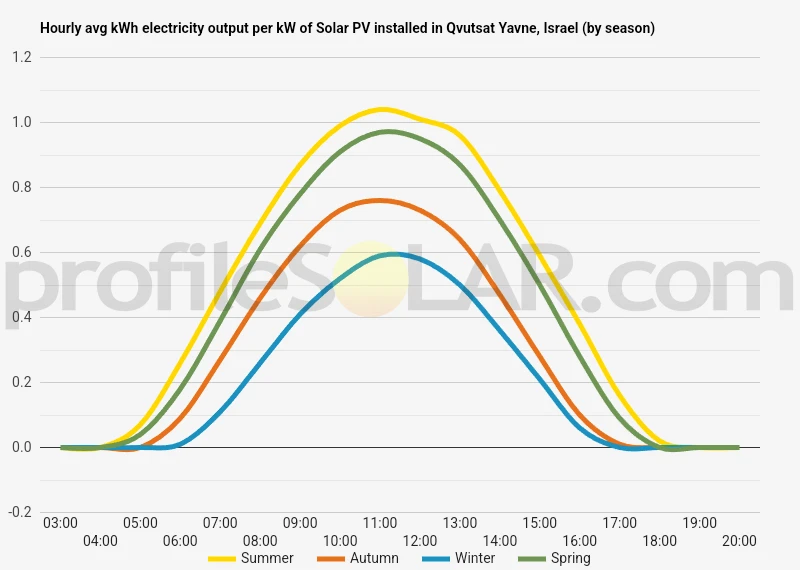

Solar output per kW of installed solar PV by season in Qvutsat Yavne

Seasonal solar PV output for Latitude: 31.8188, Longitude: 34.7237 (Qvutsat Yavne, Israel), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Qvutsat Yavne, Israel

To maximize your solar PV system's energy output in Qvutsat Yavne, Israel (Lat/Long 31.8188, 34.7237) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Qvutsat Yavne, Israel

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Qvutsat Yavne, Israel. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	36° South in Autumn	47° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Qvutsat Yavne, Israel

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Qvutsat Yavne, Israel.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Qvutsat Yavne, Israel

The topography around Qvutsat Yavne, Israel, presents a diverse landscape characteristic of Israel's coastal plain transitioning into the foothills of the Judean Mountains. Qvutsat Yavne itself is situated in the southern coastal plain region of Israel, approximately 25 kilometers south of Tel Aviv and about 7 kilometers east of the Mediterranean coastline.

Coastal Plain Features

The immediate area around Qvutsat Yavne consists primarily of flat to gently rolling terrain, typical of Israel's coastal plain. This relatively level landscape has elevations ranging from about 20 to 50 meters above sea level. The soil is predominantly fertile, composed of alluvial deposits and sandy loam, which has historically made this region valuable for agricultural purposes. Moving eastward from Qvutsat Yavne, the landscape gradually begins to rise as it transitions into the Shephelah, or Judean foothills. These foothills serve as a natural buffer zone between the coastal plain and the higher Judean Mountains further east. The Shephelah is characterized by low, rolling hills with elevations typically between 100-300 meters above sea level.

Hydrological Features

The region contains several seasonal streams (wadis) that flow from the eastern highlands toward the Mediterranean Sea. The Sorek Stream (Nahal Sorek) is one of the more significant waterways in the vicinity, running roughly east to west. These watercourses have carved shallow valleys through the landscape over time, creating some topographical variation in an otherwise relatively uniform terrain.

Solar PV Suitability

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions based on topographical considerations: The flat expanses of the coastal plain surrounding Qvutsat Yavne offer ideal conditions for solar PV deployment. These areas provide large, continuous tracts of level ground that minimize installation costs and complexity. The minimal slope reduces the need for extensive grading work and simplifies the installation of mounting structures. The gentle south-facing slopes of the Shephelah foothills to the east and southeast represent another promising zone for solar development. These areas benefit from optimal sun exposure throughout the day while still maintaining manageable terrain for construction purposes. The moderate elevation also tends to experience less coastal haze than locations directly on the plain. Specifically, the areas between Qvutsat Yavne and the towns of Gedera and Mazkeret Batya to the southeast feature suitable topography for solar installations. These zones combine favorable slope aspects with proximity to existing infrastructure and transmission lines.

Topographical Constraints

Despite the generally favorable landscape, certain topographical features present constraints for solar development. The seasonal wadis and their associated floodplains should be avoided due to potential flooding risks and ecological considerations. Additionally, areas with steeper slopes in the eastern portions of the Shephelah would require more extensive site preparation, increasing development costs. The region's agricultural value also presents a competing land-use consideration, as the fertile soils of the coastal plain have supported intensive farming for generations. This creates a balance between energy development and preserving productive agricultural land. In conclusion, the most promising areas for large-scale solar PV development based on topography are the level sections of the coastal plain immediately surrounding Qvutsat Yavne and the gentle south-facing slopes of the western Shephelah foothills. These areas combine favorable terrain with good sun exposure while minimizing development challenges.

Israel solar PV Stats as a country

Israel ranks 29th in the world for cumulative solar PV capacity, with 2,555 total MW's of solar PV installed. This means that 4.70% of Israel's total energy as a country comes from solar PV (that's 17th in the world). Each year Israel is generating 277 Watts from solar PV per capita (Israel ranks 16th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Israel?

Yes, there are several incentives for businesses wanting to install solar energy in Israel. The Israeli government offers a variety of financial incentives and subsidies for businesses that install solar energy systems. These include grants, tax credits, and low-interest loans. Additionally, the government has implemented a feed-in tariff program which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to ensure that businesses can recoup their investment in solar energy over time.
