Solar PV Analysis of Raanana, Israel
Raanana, Central District, Israel is a pretty good location for generating energy through solar panels all year round. The amount of electricity you can get from each kilowatt of solar power installed varies by season. In summer, you can expect about 8.44 kilowatt-hours per day, which is quite high. Spring also gives a good return with around 7.19 kilowatt-hours per day.
However, the output drops in autumn and winter to 5.29 and 3.53 kilowatt-hours per day respectively, but even then it's still worthwhile because you're still generating power from the sun for free.
The best times to generate solar energy at this location are obviously during the sunnier seasons - summer and spring.
To maximize your total annual production from solar panels at this location, they should be installed at an angle tilted 27 degrees towards the south.
As far as environmental or local factors that might affect solar production in Raanana are concerned; there could be some due to its Mediterranean climate which includes rainy winters and hot dry summers - these could potentially reduce panel efficiency due to dust accumulation or excess heating in summers or lower sunlight exposure in winters due to rainfall/cloud cover.
However, these issues can be managed with regular cleaning of panels especially after dust storms or long dry periods in summer and efficient cooling mechanisms like sufficient air gaps under panels etc.,
In terms of topography; Raanana is relatively flat which generally makes installation easier but if there are nearby buildings or trees casting shadows on your panels that would obviously reduce their effectiveness – so choosing an unobstructed site would be important when installing your system.
Overall though it seems like Raanana would be a pretty good place for harnessing solar energy!
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 100 locations across Israel. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Israel by location

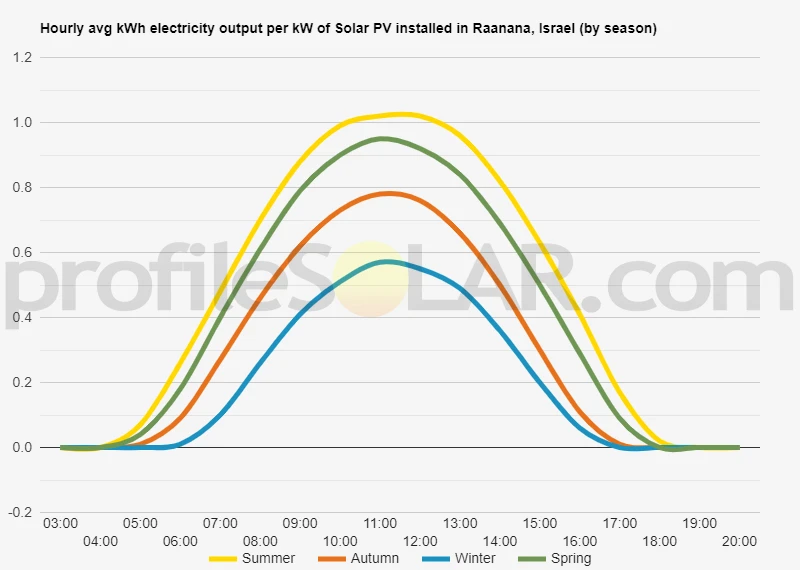

Solar output per kW of installed solar PV by season in Raanana
Seasonal solar PV output for Latitude: 32.1865, Longitude: 34.8726 (Raanana, Israel), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 27° South in Raanana, Israel
To maximize your solar PV system's energy output in Raanana, Israel (Lat/Long 32.1865, 34.8726) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Raanana, Israel
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Raanana, Israel. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 16° South in Summer | 37° South in Autumn | 47° South in Winter | 25° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Raanana, Israel
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Raanana, Israel.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Raanana, Israel
Raanana, Israel is located in the central coastal plain of the country. The area has a relatively flat topography with some small hills and valleys. It's not far from the Mediterranean Sea to its west, while to its east are the more hilly regions leading up to Jerusalem.
For large-scale solar PV installations, flat or gently sloping areas are generally preferred because they require less site preparation and can accommodate more panels. Therefore, considering Raanana's location and topography, the surrounding plains would be suitable for such projects.
In terms of specific nearby areas that could potentially host large-scale solar PV installations:
1. Sharon Plain: This is a fertile agricultural region located south of Raanana which could be suitable for ground-mounted solar farms.
2. Industrial Zones: There are several industrial zones around Raanana such as those in Hod Hasharon or Herzliya which might have available rooftop space for installing solar panels.
3. Coastal Areas: While these areas might not offer large expanses of land due to urban development and nature reserves, smaller scale installations on rooftops or parking lots could still be feasible.
It should be noted that any potential site would need to undergo a detailed assessment considering factors such as land use restrictions (e.g., protected natural sites), proximity to power grid connections, local climate conditions (sunlight hours), etc., before deciding on its suitability for solar PV installation.
On another note, Israel has been actively promoting renewable energy sources including solar power due to its abundant sunlight throughout most parts of the year making it an ideal location for this kind of project.
Israel solar PV Stats as a country
Israel ranks 29th in the world for cumulative solar PV capacity, with 2,555 total MW's of solar PV installed. This means that 4.70% of Israel's total energy as a country comes from solar PV (that's 17th in the world). Each year Israel is generating 277 Watts from solar PV per capita (Israel ranks 16th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Israel?
Yes, there are several incentives for businesses wanting to install solar energy in Israel. The Israeli government offers a variety of financial incentives and subsidies for businesses that install solar energy systems. These include grants, tax credits, and low-interest loans. Additionally, the government has implemented a feed-in tariff program which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to ensure that businesses can recoup their investment in solar energy over time.
Do you have more up to date information than this on incentives towards solar PV projects in Israel? Please reach out to us and help us keep this information current. Thanks!
