Flag of JapanSolar PV Analysis of Yazaike, Japan

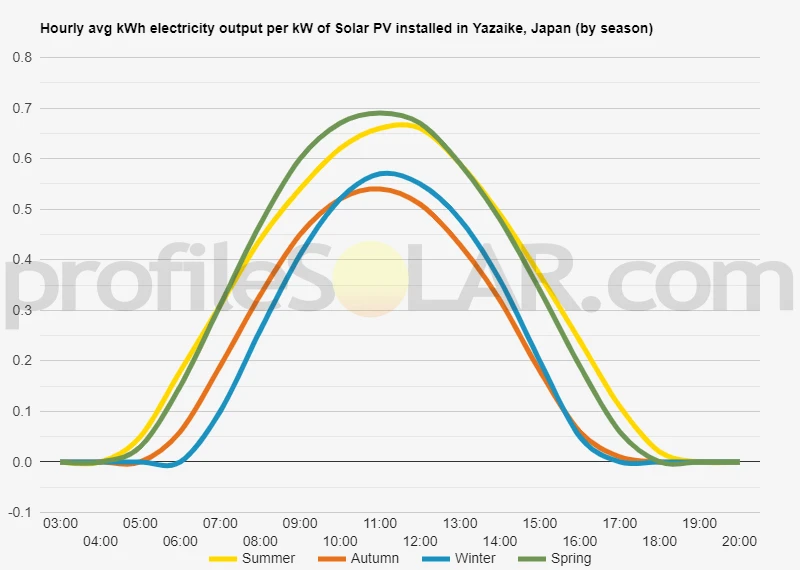

Graph of hourly avg kWh electricity output per kW of Solar PV installed in Yazaike, Japan (by season)

Yazaike, Tokyo, Japan, located at 35.7932° latitude and 139.7552° longitude, offers a favorable environment for solar power generation throughout the year. The average daily energy production per kilowatt of installed solar capacity varies by season: summer yields an average of 5.28 kWh/day, spring provides approximately 5.26 kWh/day, autumn produces around 3.62 kWh/day and winter generates about 3.50 kWh/day.

Given Yazaike's position within the Northern Temperate Zone, seasonal fluctuations in sunlight exposure are to be expected but do not significantly hinder overall solar production capabilities throughout the year due to relatively consistent daylight hours compared to regions closer to the poles.

For optimal performance of fixed solar panels in Yazaike, Tokyo, it is recommended that they are installed at a tilt angle of approximately 33 degrees facing southwards for maximum sun exposure and energy capture across all seasons.

However, local factors may impact solar production potential in this area such as precipitation including rain or snow which can obstruct sunlight reaching the panels and reduce their efficiency temporarily during such weather events.

To mitigate these potential issues and ensure greater energy yield from your solar installation despite these environmental challenges; regular cleaning and maintenance of panels is recommended especially after periods of heavy rain or snowfall to clear any obstructions on the panel surface that could impede sunlight absorption.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 187 locations across Japan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Japan by location

Solar output per kW of installed solar PV by season in Yazaike

Seasonal solar PV output for Latitude: 35.7932, Longitude: 139.7552 (Yazaike, Japan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Summer
Average 5.28kWh/day in Summer.
Autumn
Average 3.62kWh/day in Autumn.
Winter
Average 3.50kWh/day in Winter.
Spring
Average 5.26kWh/day in Spring.



Ideally tilt fixed solar panels 33° South in Yazaike, Japan

To maximize your solar PV system's energy output in Yazaike, Japan (Lat/Long 35.7932, 139.7552) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

The sun
At Latitude: 35.7932, Longitude: 139.7552, the ideal angle to tilt panels is 33° South

Seasonally adjusted solar panel tilt angles for Yazaike, Japan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yazaike, Japan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle Overall Best Autumn Angle Overall Best Winter Angle Overall Best Spring Angle
20° South in Summer 42° South in Autumn 51° South in Winter 29° South in Spring

Assuming you can modify the tilt angle of your solar PV panels throughout the year, you can optimize your solar generation in Yazaike, Japan as follows: In Summer, set the angle of your panels to 20° facing South. In Autumn, tilt panels to 42° facing South for maximum generation. During Winter, adjust your solar panels to a 51° angle towards the South for optimal energy production. Lastly, in Spring, position your panels at a 29° angle facing South to capture the most solar energy in Yazaike, Japan.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yazaike, Japan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yazaike, Japan.

Our calculation method

  1. Solar Position:
    We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
  2. Shadow Projection:
    We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
  3. Minimum Spacing:
    We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.






Please enter information above to calculate panel spacing.

Topography for solar PV around Yazaike, Japan

The topography around Yazaike, Japan is generally flat. The nearby areas that would be most suited to large-scale solar PV are open fields and other flat surfaces such as rooftops or parking lots. These areas provide the most efficient and effective access to sunlight for solar energy production.

Japan solar PV Stats as a country

Japan ranks 3rd in the world for cumulative solar PV capacity, with 74,191 total MW's of solar PV installed. This means that 8.30% of Japan's total energy as a country comes from solar PV (that's 9th in the world). Each year Japan is generating 590 Watts from solar PV per capita (Japan ranks 4th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Japan?

Yes, there are several incentives for businesses wanting to install solar energy in Japan. These include the Feed-in Tariff (FIT) program, which provides a fixed price for electricity generated from renewable sources such as solar; subsidies and grants from local governments; tax credits; and loans with low interest rates. Additionally, businesses may be eligible for additional incentives depending on their location and type of installation.

Do you have more up to date information than this on incentives towards solar PV projects in Japan? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Article: Solar PV Analysis of Yazaike, Japan
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Thursday 16th of November 2023
Last Updated: Monday 21st of July 2025
