Solar PV Analysis of Karaganda, Kazakhstan
Karaganda, Kazakhstan, situated at 49.7989°N, 73.0994°E in the Northern Temperate Zone, presents a varied landscape for solar energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production, which is typical for regions at higher latitudes.
Seasonal Solar Performance
Solar energy generation in Karaganda peaks during the summer months, with an impressive output of 6.87 kWh per day for each kilowatt of installed capacity. Spring follows closely behind, producing 6.14 kWh/day/kW. However, autumn and winter see a substantial decrease in energy production, with outputs of 2.97 kWh/day/kW and 2.02 kWh/day/kW, respectively.
The most favorable periods for solar energy generation in Karaganda are from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Conversely, the winter months present challenges due to shorter days and lower sun angles, resulting in significantly reduced energy production.
Optimal Panel Installation
To maximize year-round solar energy production in Karaganda, fixed solar panels should be installed at a tilt angle of 43 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun angles across seasons.
Environmental Considerations
While Karaganda's location is generally suitable for solar energy production, there are some environmental factors that could impact efficiency:
- Extreme temperature variations: Karaganda experiences hot summers and very cold winters, which can affect solar panel performance.
- Snow accumulation: Winter snowfall can temporarily reduce panel efficiency if not promptly removed.
To mitigate these challenges, consider implementing the following measures:
- Use high-quality, temperature-resistant solar panels designed to perform well in extreme conditions.
- Install panels at a steeper angle to facilitate snow shedding and consider regular snow removal during winter months.
- Implement a robust cleaning schedule to remove dust and debris, which can accumulate during dry periods.
By addressing these factors and optimizing panel installation, Karaganda can effectively harness solar energy, particularly during the productive summer and spring months, while minimizing the impact of seasonal variations and environmental challenges.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 28 locations across Kazakhstan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Kazakhstan by location

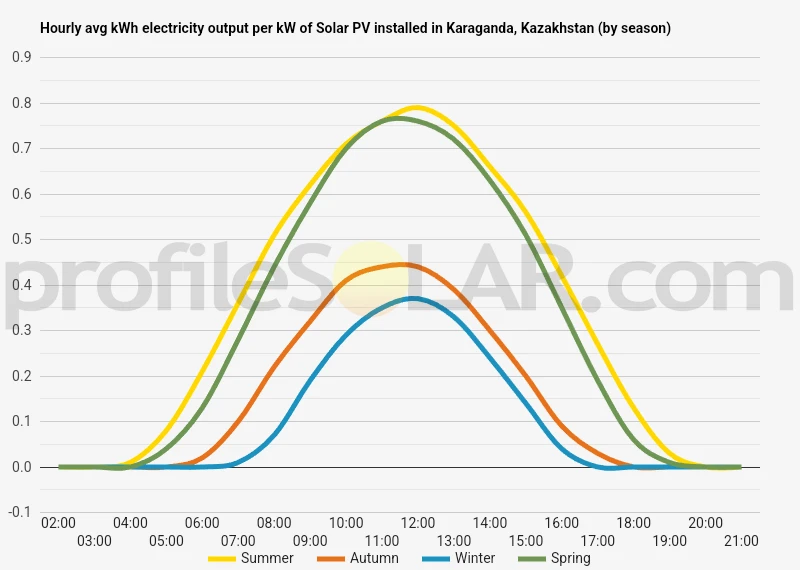

Solar output per kW of installed solar PV by season in Karaganda
Seasonal solar PV output for Latitude: 49.7989, Longitude: 73.0994 (Karaganda, Kazakhstan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 43° South in Karaganda, Kazakhstan
To maximize your solar PV system's energy output in Karaganda, Kazakhstan (Lat/Long 49.7989, 73.0994) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Karaganda, Kazakhstan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karaganda, Kazakhstan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 34° South in Summer | 53° South in Autumn | 64° South in Winter | 42° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Karaganda, Kazakhstan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karaganda, Kazakhstan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Karaganda, Kazakhstan
The area around Karaganda, Kazakhstan, is characterized by a vast, mostly flat steppe landscape. This region is part of the Kazakh Uplands, which consists of low hills and plateaus interspersed with wide, open plains. The terrain is generally gentle, with rolling hills and occasional shallow valleys. The elevation in this area typically ranges from about 500 to 600 meters above sea level.
The topography of Karaganda and its surroundings is shaped by its continental climate and its location in the heart of the Eurasian steppe. The landscape is predominantly treeless, with grasses and low shrubs being the primary vegetation. There are few natural obstacles or significant changes in elevation, which contributes to the region's reputation for seemingly endless horizons.
When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the flat and open nature of the steppe around Karaganda offers numerous advantages. The lack of tall vegetation or dramatic terrain features means there are minimal natural obstructions to block sunlight. This allows for maximum solar exposure throughout the day.
Ideal locations for solar PV projects would be on the expansive flat areas to the south and southeast of Karaganda. These regions tend to have slightly higher elevations and less urban development, providing ample space for large installations. The gently sloping terrain in these areas can also be beneficial, as it allows for natural drainage and can help optimize the angle of solar panels for maximum efficiency.
It's worth noting that while the entire region receives substantial sunlight, areas further from the city would likely be preferable to avoid potential issues with urban air pollution that could reduce solar efficiency. Additionally, locations with easy access to existing power infrastructure would be advantageous for connecting new solar installations to the grid.
Overall, the topography of the Karaganda region, with its expansive, open landscapes and minimal elevation changes, presents favorable conditions for large-scale solar energy development. The main challenges would likely come from the harsh continental climate, including extreme temperature variations and occasional dust storms, rather than from the topography itself.
Kazakhstan solar PV Stats as a country
Kazakhstan ranks 44th in the world for cumulative solar PV capacity, with 1,037 total MW's of solar PV installed. [source]
Are there incentives for businesses to install solar in Kazakhstan?
Yes, there are incentives for businesses wanting to install solar energy in Kazakhstan. The government of Kazakhstan has implemented a number of policies and programs to promote the use of renewable energy sources, including solar energy. These include tax exemptions, grants, and subsidies for businesses that install solar systems. Additionally, the government has established a Renewable Energy Fund which provides financial support for projects related to renewable energy development.
Do you have more up to date information than this on incentives towards solar PV projects in Kazakhstan? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Thursday 19th of September 2024
Last Updated: Monday 21st of July 2025
