Temirtau, Karaganda, Kazakhstan, located at 50.0539°N, 72.972°E, presents a challenging environment for year-round solar PV energy generation. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which greatly impacts the efficiency of solar installations.

Seasonal Solar Performance

The solar energy production in Temirtau varies dramatically throughout the year. Summer months yield the highest output at 6.74 kWh per day for each kW of installed capacity. Spring follows closely with 6.00 kWh/day. However, autumn and winter see a sharp decline in production, with 2.70 kWh/day and 1.86 kWh/day respectively.

This stark contrast between seasons means that solar energy generation is most effective from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Conversely, the winter months present significant challenges due to shorter days and lower sun angles, resulting in substantially reduced energy production.

Optimal Panel Installation

To maximize year-round solar energy production in Temirtau, Karaganda, fixed solar panels should be tilted at a 43-degree angle facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Factors and Mitigation

Several environmental factors can impede solar production in Temirtau:

1. Extreme cold temperatures in winter, which can reduce panel efficiency
2. Snow accumulation, potentially blocking sunlight from reaching the panels

To mitigate these issues, installers should consider using cold-resistant solar panels and implementing a steeper tilt angle to facilitate snow sliding off the panels. Additionally, regular maintenance and snow removal may be necessary during winter months to ensure optimal performance.

While Temirtau's location presents challenges for year-round solar energy production, proper panel placement and mitigation strategies can help maximize energy output, particularly during the more favorable spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 28 locations across Kazakhstan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Kazakhstan by location

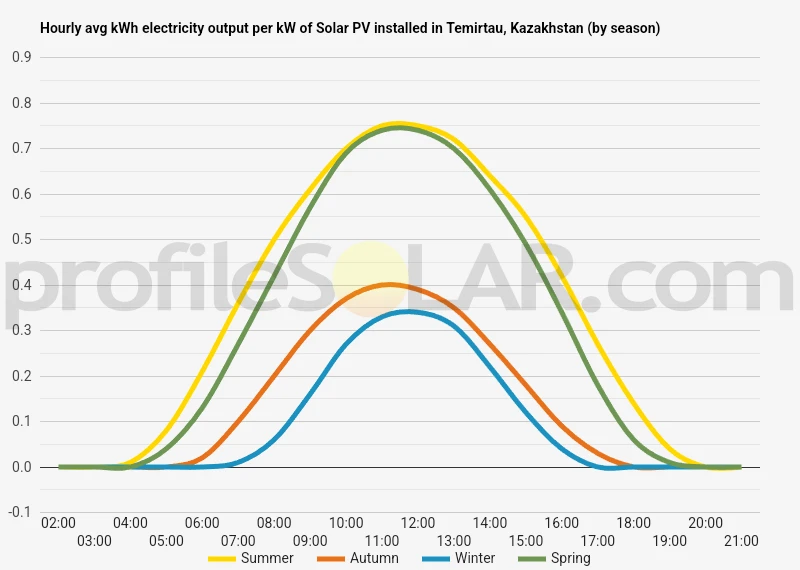

Solar output per kW of installed solar PV by season in Temirtau

Seasonal solar PV output for Latitude: 50.0539, Longitude: 72.972 (Temirtau, Kazakhstan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Temirtau, Kazakhstan

To maximize your solar PV system's energy output in Temirtau, Kazakhstan (Lat/Long 50.0539, 72.972) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Temirtau, Kazakhstan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Temirtau, Kazakhstan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Temirtau, Kazakhstan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Temirtau, Kazakhstan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Temirtau, Kazakhstan

The topography around Temirtau, Kazakhstan, is characterized by a relatively flat landscape with subtle variations in elevation. The city is situated in the central part of Kazakhstan, in the Karaganda Region, which is known for its vast steppes and gently rolling plains. The area surrounding Temirtau is predominantly semi-arid, with sparse vegetation typical of the Eurasian steppe ecosystem. To the west and southwest of Temirtau, the terrain gradually slopes towards the Nura River, which flows through the region. This river valley introduces some minor undulations to the otherwise level landscape. To the east and northeast, the land remains mostly flat, with occasional low hills and shallow depressions dotting the horizon.

Suitability for Large-Scale Solar PV

When considering areas nearby Temirtau for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be those that combine favorable topography with optimal solar exposure and minimal environmental impact. The expansive steppes to the east and southeast of Temirtau present promising opportunities for solar PV development. These areas benefit from their flat terrain, which simplifies construction and maintenance of solar arrays. The lack of significant geographical features also means fewer obstacles that could cast shadows or interfere with solar panel placement. Another potentially suitable area lies to the south of Temirtau, where the land remains relatively level and open. This region receives ample sunlight throughout the year, making it an attractive option for solar energy production. The absence of dense forests or large water bodies in this direction further enhances its suitability for solar PV installations. It's worth noting that while the immediate vicinity of the Nura River might seem appealing due to its flat nature, it may not be the most suitable location for large-scale solar projects. The proximity to a water source could introduce environmental concerns and potential conflicts with other land uses. When selecting specific sites for solar PV development, it would be crucial to conduct detailed environmental and geological surveys to ensure minimal impact on local ecosystems and to avoid any areas prone to flooding or soil instability. Additionally, consideration should be given to the proximity of existing power infrastructure to facilitate grid connection and energy distribution from the solar installations.

Kazakhstan solar PV Stats as a country

Kazakhstan ranks 44th in the world for cumulative solar PV capacity, with 1,037 total MW's of solar PV installed. [source]

Are there incentives for businesses to install solar in Kazakhstan?

Yes, there are incentives for businesses wanting to install solar energy in Kazakhstan. The government of Kazakhstan has implemented a number of policies and programs to promote the use of renewable energy sources, including solar energy. These include tax exemptions, grants, and subsidies for businesses that install solar systems. Additionally, the government has established a Renewable Energy Fund which provides financial support for projects related to renewable energy development.
