Diani, Kwale County, Kenya represents an excellent location for year-round solar energy generation, benefiting from its tropical position near the equator where sunlight remains remarkably consistent throughout the year.

Solar Energy Production Throughout the Year

The solar energy output at Diani demonstrates strong performance across all seasons, with spring delivering the highest production at 6.87kWh per day per kW of installed solar capacity. Summer and autumn maintain robust output levels at 6.52kWh and 6.29kWh respectively, while winter shows the lowest but still substantial production at 5.26kWh per day per kW. Spring emerges as the optimal season for solar generation, likely coinciding with clearer skies and favorable atmospheric conditions. The relatively modest seasonal variation - with only a 1.61kWh difference between the highest and lowest producing seasons - makes this location highly reliable for consistent solar energy production throughout the year.

Optimal Panel Installation

For maximum year-round energy production at Diani, Kwale County, solar panels should be installed at a fixed tilt angle of 3 degrees facing north. This shallow angle reflects the location's proximity to the equator, where the sun travels high overhead throughout most of the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this coastal tropical location: Humidity and Salt Air: Diani's coastal position exposes solar installations to high humidity and salt-laden air, which can cause corrosion of metal components and reduce panel efficiency over time. The combination of moisture and salt creates particularly challenging conditions for electrical connections and mounting hardware. Seasonal Rainfall: The tropical climate brings distinct wet seasons that can reduce solar output through increased cloud cover and atmospheric moisture. Heavy rainfall periods may also create challenges for system maintenance and cleaning schedules. Dust and Debris: Tropical environments often generate organic debris from vegetation, bird droppings, and airborne particles that can accumulate on panel surfaces, reducing light transmission and energy output.

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production despite these environmental challenges:

• Use marine-grade aluminum mounting systems and stainless steel hardware specifically designed to resist salt corrosion
• Apply anti-corrosion coatings to all metal components and ensure proper grounding systems
• Install panels with adequate spacing to promote air circulation and reduce moisture buildup
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Choose solar panels with hydrophobic coatings that help shed water and reduce debris adhesion

Regular maintenance becomes particularly important in this environment, with monthly visual inspections recommended during wet seasons and quarterly professional cleaning during drier periods. Proper drainage around ground-mounted systems and waterproof sealing of all electrical connections will help ensure long-term reliability and optimal energy production from this otherwise excellent solar location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 13 locations across Kenya. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Kenya by location

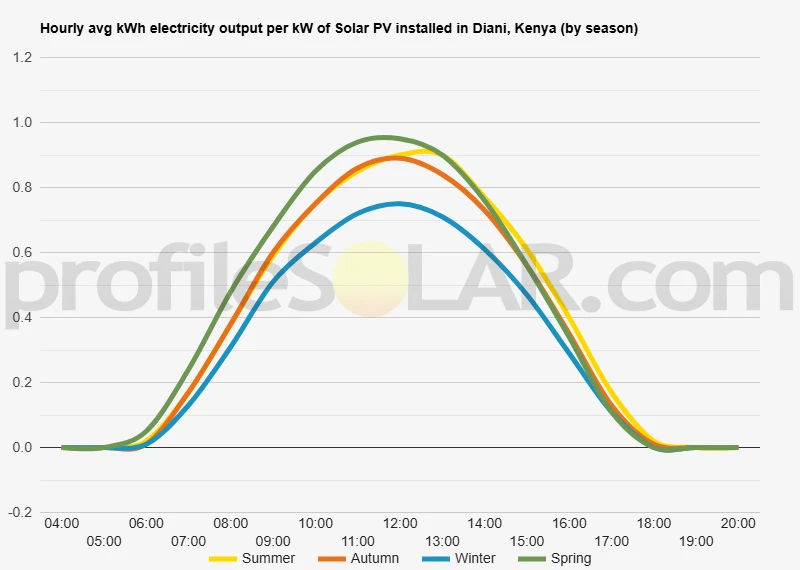

Solar output per kW of installed solar PV by season in Diani

Seasonal solar PV output for Latitude: -4.2654, Longitude: 39.5643 (Diani, Kenya), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Diani, Kenya

To maximize your solar PV system's energy output in Diani, Kenya (Lat/Long -4.2654, 39.5643) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Diani, Kenya

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Diani, Kenya. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Diani, Kenya

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Diani, Kenya.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Diani, Kenya

Topography Around Diani, Kenya

The coastal region surrounding Diani in Kenya presents a relatively flat and low-lying topographical landscape that extends inland from the Indian Ocean shoreline. This area sits at an elevation of approximately 20 to 30 meters above sea level, with the terrain gently undulating rather than featuring dramatic elevation changes. The immediate coastal zone consists of sandy beaches backed by coral limestone formations that have been shaped over millennia by marine processes. Moving inland from the coast, the landscape transitions into a series of gentle ridges and shallow valleys carved into the underlying coral rock and sedimentary deposits. These ridges rarely exceed 100 meters in elevation and create a rolling terrain that extends for several kilometers before encountering more significant topographical features. The soil composition varies from sandy coastal soils near the ocean to red lateritic soils further inland, typical of the East African coastal plain. The drainage pattern in this region consists of seasonal streams and small rivers that flow eastward toward the ocean, creating shallow valleys that cut through the coral limestone substrate. During the dry seasons, many of these watercourses become intermittent or dry completely, leaving behind broad, flat valley floors that contribute to the overall gentle nature of the landscape.

Areas Suitable for Large-Scale Solar PV Development

The topographical characteristics of the Diani region present several favorable zones for large-scale solar photovoltaic installations. The most promising areas lie approximately 5 to 15 kilometers inland from the immediate coastal strip, where the terrain becomes more stable and less influenced by coastal erosion processes while maintaining the beneficial flat to gently sloping characteristics ideal for solar panel deployment. The elevated ridges that run parallel to the coastline offer particularly attractive sites for solar development. These areas provide natural drainage away from installation sites while maintaining relatively flat or consistently sloped surfaces that minimize the need for extensive ground preparation. The coral limestone foundation in these areas provides stable ground conditions that can support large solar arrays without significant foundation challenges. The broad valley floors created by the seasonal drainage systems also present excellent opportunities for solar installations. These areas typically feature minimal vegetation and have already been naturally cleared and flattened by water flow patterns over time. The flat nature of these valley floors reduces installation costs and allows for optimal panel orientation and spacing. Areas located between 10 and 20 kilometers inland from Diani appear to offer the best combination of favorable topographical conditions and reduced environmental sensitivities compared to the immediate coastal zone. This inland positioning provides protection from salt spray and coastal weather extremes while maintaining the gentle topography that makes large-scale solar development economically viable. The red lateritic soils found in these inland areas also provide better drainage characteristics than the sandy coastal soils, reducing potential issues with water accumulation around solar installations. The relatively uniform elevation changes across this inland zone mean that large solar arrays can be designed with consistent panel angles and orientations across extensive areas, maximizing efficiency and reducing the complexity of electrical systems and maintenance access routes.

Kenya solar PV Stats as a country

Kenya ranks 77th in the world for cumulative solar PV capacity, with 147 total MW's of solar PV installed. Each year Kenya is generating 3 Watts from solar PV per capita (Kenya ranks 85th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Kenya?

Yes, there are several incentives for businesses wanting to install solar energy in Kenya. These include the Feed-in Tariff (FiT) program, which provides a guaranteed price for electricity generated from renewable sources; the Renewable Energy Fund, which provides grants and loans to support renewable energy projects; and the Solar Home System Program, which offers subsidies for households to purchase solar home systems. Additionally, businesses may be eligible for tax credits or other financial incentives from local governments.

Do you have more up to date information than this on incentives towards solar PV projects in Kenya? Please reach out to us and help us keep this information current. Thanks!
