Ajaltoun, Lebanon, situated in the Northern Sub Tropics, offers a promising location for solar PV energy generation. The town's geographical position at 33.9678362° N latitude and 35.6850701° E longitude provides favorable conditions for harnessing solar power throughout the year, albeit with seasonal variations.

Seasonal Solar Performance

Solar energy production in Ajaltoun fluctuates significantly across seasons. Summer stands out as the most productive period, with an impressive daily output of 8.62 kWh per kW of installed solar capacity. Spring follows closely, generating 7.00 kWh/day. Autumn sees a moderate decline to 5.23 kWh/day, while winter experiences the lowest output at 3.31 kWh/day.

The substantial difference between summer and winter production highlights the impact of seasonal changes on solar efficiency in this region. Despite the winter dip, the location still maintains a respectable year-round average, making it a viable option for solar energy investment.

Optimal Panel Installation

To maximize year-round solar production in Ajaltoun, fixed solar panels should be tilted at a 29-degree angle facing south. This optimal tilt angle takes into account the location's latitude, seasonal sun paths, and potential solar irradiance throughout the year.

Environmental Considerations

While Ajaltoun's climate is generally conducive to solar energy production, there are some environmental factors to consider:

• Dust and air pollution: Lebanon's geographical location makes it susceptible to dust storms from nearby desert regions. Regular panel cleaning can mitigate this issue.
• Winter snow: Ajaltoun's mountainous location may experience occasional snowfall in winter. Installing panels at the optimal angle helps shed snow more easily.

To enhance solar production and overcome these challenges, consider implementing dust-resistant panel coatings, automated cleaning systems, and snow sensors that trigger panel heating when necessary. Additionally, using high-efficiency panels can help maximize energy capture during less ideal conditions.

In conclusion, Ajaltoun presents a favorable location for solar PV installations, with strong potential especially during summer and spring months. While some environmental factors may affect performance, proper installation techniques and maintenance can ensure optimal year-round energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 22 locations across Lebanon. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Lebanon by location

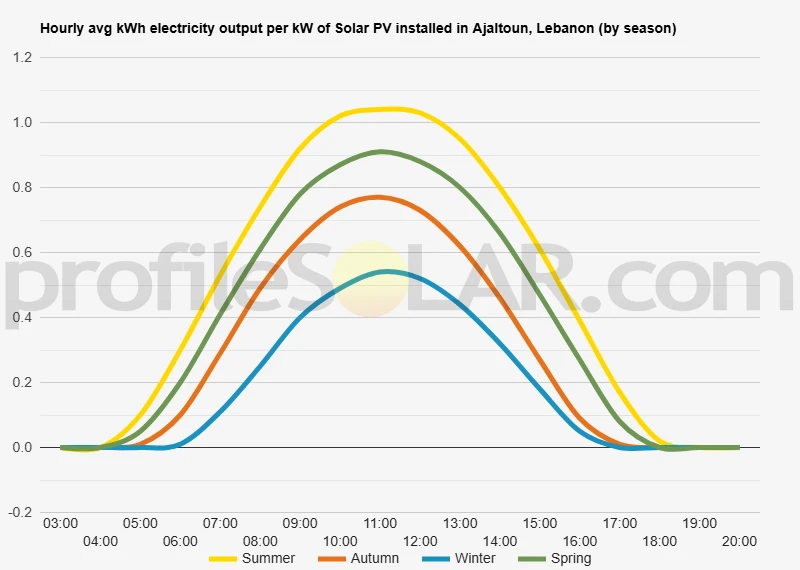

Solar output per kW of installed solar PV by season in Ajaltoun

Seasonal solar PV output for Latitude: 33.9678362, Longitude: 35.6850701 (Ajaltoun, Lebanon), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Ajaltoun, Lebanon

To maximize your solar PV system's energy output in Ajaltoun, Lebanon (Lat/Long 33.9678362, 35.6850701) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ajaltoun, Lebanon

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ajaltoun, Lebanon. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	38° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ajaltoun, Lebanon

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ajaltoun, Lebanon.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ajaltoun, Lebanon

The topography around Ajaltoun, Lebanon, is characterized by its mountainous terrain, typical of the Mount Lebanon range. Situated approximately 20 kilometers northeast of Beirut, Ajaltoun is perched on the western slopes of these mountains, offering stunning views of the Mediterranean Sea and the surrounding landscape. The area features steep, rugged hillsides with elevations ranging from about 700 to 1,200 meters above sea level. The terrain is marked by numerous valleys and ridges, creating a complex and varied topography. The slopes are often terraced, a traditional agricultural practice that has shaped the landscape for centuries. These terraces are used for cultivating various crops, including olive trees and grapevines. The region experiences a Mediterranean climate, with warm, dry summers and cool, wet winters. This climate, combined with the mountainous terrain, has resulted in a diverse ecosystem of pine forests, oak woodlands, and areas of scrubland vegetation known as maquis.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors must be taken into account. The mountainous terrain presents both challenges and opportunities for solar energy development. The most suitable areas for large-scale solar PV installations would likely be found on the gentler slopes and plateaus at lower elevations, particularly to the east and southeast of Ajaltoun. These areas generally receive more consistent sunlight throughout the day and year, with fewer shading issues from surrounding mountains. Ideal locations would have a southerly aspect, maximizing exposure to the sun's rays. Flatter areas or those with a gentle slope would be preferable, as they require less earthwork and are easier to develop. However, it's important to note that such areas may be limited due to the predominantly mountainous nature of the region. The coastal plain to the west, while flatter and potentially easier to develop, may not be as suitable due to higher population density and competing land uses. Additionally, the presence of sea mist and coastal humidity could reduce solar efficiency. Any large-scale solar PV project in this region would need to carefully balance energy production potential with environmental and agricultural considerations, as much of the land is used for farming or is covered by important natural habitats. Proper site selection and environmental impact assessments would be crucial to ensure sustainable development that respects the unique landscape and ecology of the Mount Lebanon region.
