Solar Energy Potential in Sabha, Libya

Sabha, Libya, situated at 27.0322° N, 14.4386° E in the Northern Sub Tropics, offers a promising location for solar PV energy generation. The city experiences substantial solar radiation throughout the year, making it an attractive site for solar power installations.

Seasonal Solar Output

Solar energy production in Sabha varies across seasons. Summer yields the highest output at 8.63 kWh per day for each kW of installed solar capacity. Spring follows closely with 7.77 kWh/day. Autumn sees a moderate decrease to 5.81 kWh/day, while winter experiences the lowest output at 4.99 kWh/day. Despite the winter dip, the overall annual performance remains impressive.

Optimal Panel Placement

For fixed panel installations in Sabha, the ideal tilt angle to maximize year-round solar production is 24 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and Sabha's specific latitude.

Peak Generation Periods

The most productive times for solar energy generation in Sabha are during the summer months, typically from June to August, when days are longest and solar radiation is at its peak. Spring (March to May) also offers excellent generation potential. While autumn and winter see reduced output, the region's location ensures significant solar potential even during these seasons.

Environmental Considerations

Sabha's desert climate presents some challenges for solar PV installations. Dust and sand accumulation on panels can significantly reduce efficiency. To mitigate this, regular cleaning and maintenance of panels is crucial. Installing panels at a steeper angle than the optimal 24 degrees can help reduce dust buildup, though this may slightly decrease overall annual output. High temperatures in summer can also affect solar panel efficiency. Using heat-resistant panels and ensuring proper ventilation around the installation can help maintain performance. Additionally, investing in tracking systems that adjust panel angles throughout the day can increase energy yield, particularly during peak summer months. Despite these challenges, Sabha's location offers exceptional solar potential. With proper installation techniques and maintenance, solar PV systems in this area can provide a reliable and substantial source of renewable energy throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 8 locations across Libya. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Libya by location

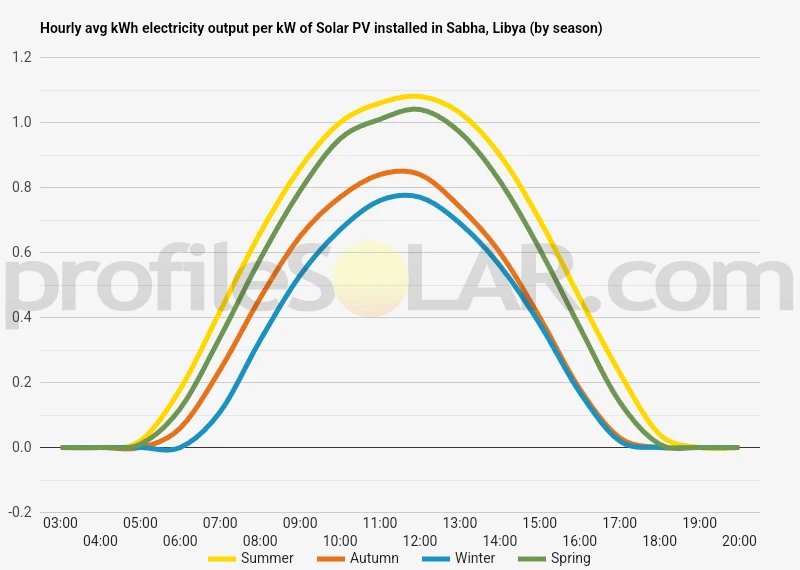

Solar output per kW of installed solar PV by season in Sabha

Seasonal solar PV output for Latitude: 27.0322, Longitude: 14.4386 (Sabha, Libya), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Sabha, Libya

To maximize your solar PV system's energy output in Sabha, Libya (Lat/Long 27.0322, 14.4386) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sabha, Libya

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sabha, Libya. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	32° South in Autumn	42° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sabha, Libya

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sabha, Libya.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sabha, Libya

The topography around Sabha, Libya is characterized by a vast desert landscape typical of the Sahara. Sabha itself is situated in a relatively flat area known as the Fezzan region, which is part of the larger Libyan Desert. The terrain in this area is predominantly sandy, with occasional rocky outcrops and small hills.

The landscape surrounding Sabha is mostly composed of sand dunes, gravel plains, and dry riverbeds called wadis. These wadis, while usually dry, can occasionally fill with water during rare rainfall events. The region is also known for its oases, which are small pockets of greenery and water sources in the otherwise arid environment.

To the north and east of Sabha, the terrain gradually transitions into more rugged areas with some elevated plateaus and low mountain ranges. However, the immediate vicinity of Sabha remains relatively flat, with only minor variations in elevation.

Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, the region around Sabha offers several favorable conditions. The vast, open desert areas surrounding the city provide ample space for extensive solar arrays. The flat terrain makes construction and maintenance easier, while the lack of vegetation minimizes potential shading issues.

Ideal locations for solar PV projects would be the expansive desert plains to the south and west of Sabha. These areas receive abundant sunlight throughout the year, with very few cloudy days, making them excellent candidates for solar energy production. The sandy soil in these regions, while potentially challenging for some types of construction, can be managed with proper engineering techniques for solar installations.

It's worth noting that while the entire region around Sabha has high solar potential, factors such as proximity to existing infrastructure, access to water for panel cleaning, and distance from sandstorm-prone areas should be considered when selecting specific sites for large-scale solar PV projects. Additionally, areas near the occasional wadis should be avoided to prevent potential damage from flash floods during rare rain events.
