Zawiya, Az Zāwiyah, Libya presents an excellent location for year-round solar photovoltaic energy generation, situated in the Northern Sub Tropics at coordinates 32.7522°N, 12.7278°E. The solar energy output potential at this location demonstrates strong performance across all seasons, making it highly suitable for solar installations.

Seasonal Solar Performance

The energy production varies significantly throughout the year, with summer delivering the highest output at 8.28 kWh per day per kW of installed solar capacity. Spring follows as the second-best performing season with 6.95 kWh per day per kW, while autumn produces 5.04 kWh per day per kW. Winter shows the lowest production at 3.96 kWh per day per kW, though this still represents reasonable output for solar installations. The ideal times for solar generation at Zawiya are clearly during the summer and spring months, when the location can achieve its peak performance. Even during the less productive autumn and winter periods, the solar output remains viable for energy production.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 28 degrees facing South. This angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant factors could potentially impede solar production in Zawiya, Az Zāwiyah, Libya:

• Desert sand and dust accumulation on panels, which can dramatically reduce efficiency
• Sandstorms that can temporarily block sunlight and deposit large amounts of particulate matter
• High temperatures that can reduce panel efficiency despite abundant sunlight
• Potential for occasional Mediterranean weather systems bringing clouds and precipitation

Preventative Measures for Enhanced Production

To combat these challenges and ensure optimal energy production, several preventative measures should be implemented: Regular cleaning systems are essential, including automated washing mechanisms or scheduled manual cleaning to remove sand and dust buildup. Installing panels with anti-soiling coatings can help reduce dust adhesion and make cleaning more effective. Adequate ventilation and spacing between panels helps manage the high temperature issue, preventing excessive heat buildup that reduces efficiency. Some installations benefit from elevated mounting systems that allow better airflow underneath the panels. Robust mounting systems designed to withstand sandstorms and high winds are crucial for long-term reliability. Additionally, monitoring systems can help identify when cleaning or maintenance is needed most urgently. Despite these challenges, Zawiya's location offers substantial solar energy potential throughout the year, making it a highly favorable site for solar PV installations when proper precautions and maintenance protocols are implemented.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 8 locations across Libya. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Libya by location

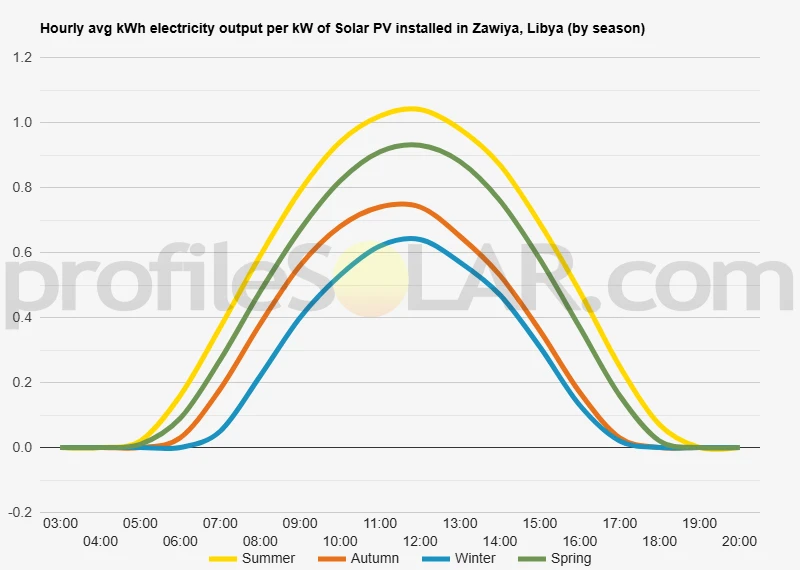

Solar output per kW of installed solar PV by season in Zawiya

Seasonal solar PV output for Latitude: 32.7522, Longitude: 12.7278 (Zawiya, Libya), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Zawiya, Libya

To maximize your solar PV system's energy output in Zawiya, Libya (Lat/Long 32.7522, 12.7278) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zawiya, Libya

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zawiya, Libya. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	37° South in Autumn	48° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zawiya, Libya

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zawiya, Libya.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zawiya, Libya

Topographical Features of Zawiya Region

The area surrounding Zawiya in northwestern Libya presents a relatively flat coastal plain that extends inland from the Mediterranean Sea. This coastal region is characterized by gently undulating terrain with minimal elevation changes, creating an essentially level landscape that stretches for considerable distances. The topography consists primarily of low-lying plains and subtle ridges that rarely exceed modest heights above sea level. The immediate vicinity of Zawiya sits on sedimentary formations typical of Libya's coastal zone, with sandy and rocky substrates predominating. The terrain gradually transitions from the coastal lowlands to slightly more elevated inland areas, though these changes remain quite gradual. Small wadis, or dry riverbeds, occasionally cut through the landscape, creating minor depressions and channels that typically remain dry except during infrequent rainfall events. Moving further inland from Zawiya, the topography maintains its generally flat character while slowly gaining elevation toward the south and southeast. The landscape features scattered low hills and gentle slopes, but nothing approaching mountainous terrain. This consistent flatness extends across much of the Tripolitanian plain, making the region topographically uniform over large areas.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains extending south and southeast of Zawiya represent the most promising locations for major solar photovoltaic installations. These areas offer the dual advantages of level terrain that minimizes construction complexities and vast open spaces that can accommodate large arrays without significant topographical obstacles. The relatively stable geological conditions in these plains provide suitable foundations for substantial solar infrastructure. The inland areas approximately twenty to fifty kilometers south of Zawiya present particularly attractive conditions for solar development. Here, the terrain remains consistently flat while being sufficiently removed from coastal influences that might affect equipment performance. These locations benefit from the region's naturally arid conditions and clear atmospheric conditions that characterize much of Libya's interior. Areas to the southwest of Zawiya also demonstrate excellent potential, where the landscape opens into broader plains with minimal human settlement or competing land uses. The consistent topography across these zones allows for standardized installation techniques and optimal panel positioning across large areas. The absence of significant vegetation or agricultural activity in much of this region reduces potential conflicts over land use. The zones extending toward the interior maintain the favorable flat characteristics while offering increasing distance from coastal humidity and salt air that could potentially impact solar equipment longevity. These inland locations provide the space necessary for utility-scale solar farms while maintaining the topographical simplicity that keeps construction and maintenance costs manageable.
