Zliten, Sha'biyat Misratah, Libya, situated at 32.4643° N, 14.5726° E, presents a favorable location for solar PV energy generation throughout the year. This coastal city in the Northern Sub Tropics experiences abundant sunshine, making it an attractive site for solar power installations.

Seasonal Solar Output

The solar energy potential in Zliten varies across seasons, with summer being the most productive period. During summer months, each kilowatt of installed solar capacity can generate an impressive 7.72 kWh per day. Spring follows as the second most productive season, yielding 6.56 kWh daily per kW installed. Autumn sees a moderate output of 4.70 kWh/day, while winter experiences the lowest production at 3.61 kWh/day per kW of installed capacity.

Optimal Panel Tilt

For fixed panel installations in Zliten, Sha'biyat Misratah, the ideal tilt angle to maximize year-round solar production is 28 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, considering the city's latitude and the sun's changing position across seasons.

Peak Generation Periods

The most ideal times for solar energy generation in Zliten are during the summer months, typically from June to August, when daylight hours are longest and solar irradiance is at its peak. Spring and early autumn also offer excellent conditions for solar power production, with clear skies and moderate temperatures contributing to high efficiency.

Environmental Considerations

While Zliten's climate is generally favorable for solar energy, there are some environmental factors to consider. The proximity to the Mediterranean Sea can lead to occasional dust storms and salt spray, which may accumulate on solar panels and reduce their efficiency. To mitigate these issues, regular cleaning and maintenance of the panels is essential.

Additionally, the region can experience high temperatures during summer, which may slightly decrease panel efficiency. Installing panels with good heat dissipation properties and ensuring proper ventilation can help maintain optimal performance even during the hottest months.

Overall, Zliten's location offers excellent potential for solar PV energy generation, with only minor environmental challenges that can be effectively managed through proper installation and maintenance practices.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 8 locations across Libya. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Libya by location

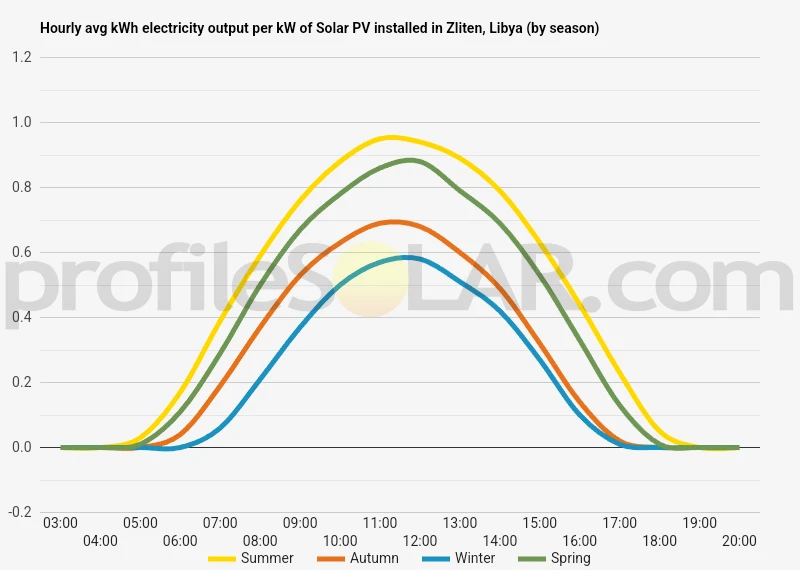

Solar output per kW of installed solar PV by season in Zliten

Seasonal solar PV output for Latitude: 32.4643, Longitude: 14.5726 (Zliten, Libya), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Zliten, Libya

To maximize your solar PV system's energy output in Zliten, Libya (Lat/Long 32.4643, 14.5726) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zliten, Libya

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zliten, Libya. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zliten, Libya

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zliten, Libya.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zliten, Libya

The topography around Zliten, Libya, is characterized by a relatively flat coastal plain that gradually transitions into gently rolling hills as you move inland. Zliten itself is situated on the Mediterranean coast, with the urban area primarily occupying the flat coastal strip. This coastal region is part of the larger Tripolitania plain, which extends along much of Libya's northwestern coastline. As you move away from the coast, the landscape becomes slightly more undulating, with low hills and shallow valleys. These features are part of the Jebel Nafusah plateau system, which runs parallel to the coast but is more prominent further to the south and west of Zliten. The elevation gradually increases as you move inland, but the rise is generally gentle and steady rather than abrupt. The area surrounding Zliten experiences a semi-arid climate, with hot, dry summers and mild winters. Vegetation is sparse, consisting mainly of drought-resistant shrubs and grasses, with some scattered trees. The soil is predominantly sandy and rocky, typical of the region's desert and Mediterranean coastal environment.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine flat or gently sloping terrain, high solar irradiance, and proximity to existing infrastructure. The inland areas south of Zliten offer promising potential for solar PV development. These regions benefit from several advantageous characteristics: 1. They receive abundant sunlight throughout the year, with minimal cloud cover, maximizing potential solar energy generation. 2. The terrain is generally flat or has a gentle slope, which simplifies construction and reduces the cost of site preparation. 3. There is ample open space away from urban areas, allowing for large-scale installations without significant land-use conflicts. 4. The proximity to the coastal urban areas means that power transmission infrastructure could be developed without excessive distances to cover. However, it's important to note that while the topography and climate are favorable, other factors such as grid connectivity, access to water for panel cleaning, and environmental considerations would need to be assessed. Additionally, the presence of occasional sandstorms in the region would require careful planning to protect the solar panels and maintain their efficiency. In conclusion, the areas south of Zliten, extending into the more arid interior but not so far as to make power transmission impractical, would likely be the most suitable for large-scale solar PV development. These locations offer a balance of favorable topography, climate conditions, and potential for infrastructure development that could support successful solar energy projects.
