Eschen, Liechtenstein, situated at latitude 47.2143 and longitude 9.5122, presents a mixed landscape for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy potential in Eschen fluctuates considerably across the four meteorological seasons. Summer stands out as the most productive period, with an average daily output of 5.66 kWh per kW of installed solar capacity. Spring follows as the second-best season, yielding 4.79 kWh/day. Autumn sees a notable decline to 2.92 kWh/day, while winter performance drops dramatically to just 1.46 kWh/day.

These figures highlight the stark contrast between summer and winter production, with summer generating nearly four times the energy of winter months. The extended daylight hours and higher sun angle during summer contribute significantly to this peak performance.

Optimal Panel Configuration

For fixed panel installations in Eschen, the ideal tilt angle to maximize year-round solar production is 40 degrees facing South. This angle is calculated to optimize energy capture across all seasons, balancing the lower winter sun with the higher summer sun path.

Environmental and Weather Considerations

Several factors can impact solar production in Eschen:

• Snow accumulation in winter can significantly reduce panel efficiency
• Fog and cloud cover, common in alpine regions, may decrease solar irradiance

To mitigate these issues, consider installing panels at a steeper angle to promote snow sliding off and using anti-reflective coatings to maximize light absorption in low-light conditions. Regular panel cleaning and maintenance are also crucial to ensure optimal performance.

Conclusion

While Eschen's location is not ideal for year-round solar production due to its significant seasonal variations, it still offers substantial potential, especially during spring and summer months. With proper system design and maintenance, solar PV can be a viable renewable energy source in this alpine setting.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4 locations across Liechtenstein. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Liechtenstein by location

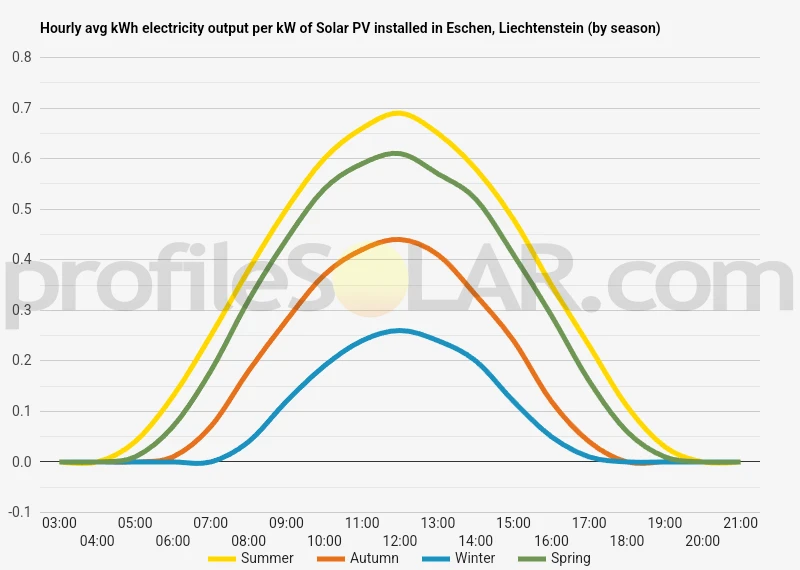

Solar output per kW of installed solar PV by season in Eschen

Seasonal solar PV output for Latitude: 47.2143, Longitude: 9.5122 (Eschen, Liechtenstein), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Eschen, Liechtenstein

To maximize your solar PV system's energy output in Eschen, Liechtenstein (Lat/Long 47.2143, 9.5122) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Eschen, Liechtenstein

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Eschen, Liechtenstein. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Eschen, Liechtenstein

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Eschen, Liechtenstein.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Eschen, Liechtenstein

The topography around Eschen, Liechtenstein, is characterized by a diverse landscape that combines flat valley floors with steep mountainous terrain. Eschen itself is situated in the Rhine Valley, a relatively flat and wide expanse that runs along the western border of Liechtenstein. This valley provides a stark contrast to the surrounding Alpine foothills and mountains that dominate the eastern part of the country. To the west of Eschen, the land remains fairly level as it extends towards the Rhine River, which forms the border between Liechtenstein and Switzerland. This area is primarily composed of fertile agricultural land and small settlements. As one moves eastward from Eschen, the terrain begins to rise gradually, transitioning into rolling hills and eventually into the more dramatic slopes of the Liechtenstein Alps. The eastern part of the region surrounding Eschen is marked by steep, forested hillsides that climb rapidly in elevation. These mountains, part of the Rätikon range, feature rugged peaks and deep valleys, creating a picturesque Alpine landscape. The highest point in Liechtenstein, Grauspitz, lies about 10 kilometers southeast of Eschen, reaching an elevation of 2,599 meters above sea level.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, the flat terrain of the Rhine Valley presents the most promising opportunities. The valley floor around Eschen and extending to the west offers several advantages for solar energy development: Firstly, the relatively level ground in this area would minimize the need for extensive land preparation, reducing construction costs and environmental impact. The open nature of the valley also means there are fewer natural obstacles that could cast shadows on solar panels, maximizing their exposure to sunlight throughout the day. Additionally, the Rhine Valley's orientation, running roughly north-south, is favorable for solar energy capture. This alignment allows for optimal positioning of solar panels to track the sun's path across the sky, potentially increasing energy generation efficiency. However, it's important to note that much of the flat land in the Rhine Valley is currently used for agriculture or urban development. Any large-scale solar projects would need to carefully balance energy production goals with the preservation of valuable farmland and the needs of local communities. The mountainous areas to the east, while scenic, are generally less suitable for large-scale solar installations due to their steep slopes, forest cover, and potential for shadowing effects. These factors would complicate construction and reduce the overall efficiency of solar panels in such terrain. In conclusion, while Liechtenstein's limited land area presents challenges for large-scale solar development, the open spaces of the Rhine Valley near Eschen offer the most promising locations for such projects, provided they can be implemented in harmony with existing land uses and environmental considerations.
