Mauren, Liechtenstein, located in the Northern Temperate Zone at coordinates 47.219°N, 9.5544°E, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that are typical for this latitude.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal differences. Summer provides the strongest performance at 5.68 kWh per day per kW of installed capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.79 kWh per day per kW, offering excellent conditions for energy production. Autumn sees a notable decline to 2.94 kWh per day per kW, while winter presents the most challenging conditions with only 1.50 kWh per day per kW. This represents nearly a four-fold difference between peak summer and winter production, which is characteristic of solar installations in northern temperate regions.

Optimal Panel Configuration

For fixed panel installations at this Mauren location, the ideal tilt angle to maximize total year-round solar production is 40 degrees facing south. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve the best annual average performance.

Local Environmental Challenges

Several environmental and weather factors could significantly impact solar production in Mauren:

• Alpine weather patterns: Liechtenstein's mountainous terrain can create unpredictable cloud cover and frequent weather changes that reduce solar irradiance
• Snow accumulation: Winter snow can completely block panels, eliminating energy production during accumulation periods
• Valley fog: Morning fog common in Alpine valleys can delay daily solar energy production
• Altitude-related temperature variations: Extreme temperature swings can affect panel efficiency and longevity

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Steeper panel angles: Installing panels at angles steeper than the optimal 40 degrees can help snow slide off more easily
• Elevated mounting: Raising panels higher above ground level reduces snow accumulation from drifting
• Anti-reflective coatings: Specialized coatings can improve performance during overcast conditions common in Alpine regions
• Robust mounting systems: Heavy-duty mounting equipment designed for Alpine conditions can withstand strong winds and snow loads
• Easy access design: Positioning panels for safe manual snow removal when necessary

Despite these challenges, Mauren's location still offers reasonable solar potential, particularly during the longer days of spring and summer when energy production is at its peak.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4 locations across Liechtenstein. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Liechtenstein by location

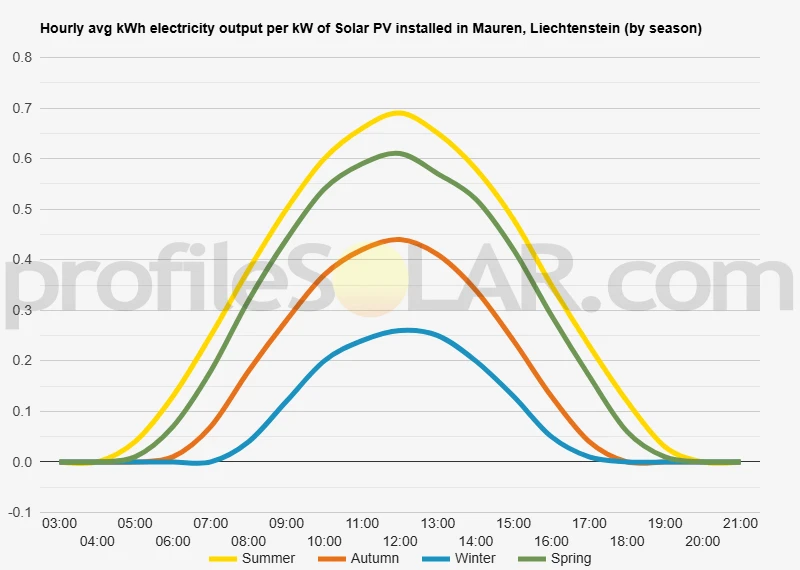

Solar output per kW of installed solar PV by season in Mauren

Seasonal solar PV output for Latitude: 47.219, Longitude: 9.5544 (Mauren, Liechtenstein), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Mauren, Liechtenstein

To maximize your solar PV system's energy output in Mauren, Liechtenstein (Lat/Long 47.219, 9.5544) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mauren, Liechtenstein

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mauren, Liechtenstein. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mauren, Liechtenstein

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mauren, Liechtenstein.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mauren, Liechtenstein

Topographical Features Around Mauren

Mauren sits in the Rhine Valley of Liechtenstein, positioned on relatively flat terrain that forms part of the broader Alpine Rhine floodplain. The village itself occupies gentle slopes that rise gradually from the Rhine River valley floor toward the eastern foothills of the Alpine mountain range. This location places Mauren at a moderate elevation with predominantly rolling agricultural land extending in several directions. The immediate landscape around Mauren consists of fertile valley bottom land that has been extensively cultivated for centuries. These areas feature minimal topographical variation, making them highly accessible and suitable for various land uses. The terrain slopes very gently from east to west toward the Rhine River, creating natural drainage patterns that have shaped both agricultural practices and settlement patterns in the region. To the east and southeast of Mauren, the land begins to rise more noticeably as it approaches the Austrian border and the foothills of the Rätikon mountain range. These elevated areas feature steeper gradients and more varied terrain, though they remain relatively modest in elevation compared to the high Alpine peaks further south. The northern approaches to Mauren continue the pattern of gentle valley terrain, blending seamlessly with similar topography extending into the Austrian Rhine Valley.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations around Mauren lie in the extensive flat and gently sloping agricultural areas that dominate the Rhine Valley floor. These zones offer the dual advantages of minimal grading requirements and excellent accessibility for construction and maintenance activities. The relatively uniform terrain across much of this valley bottom land means that large solar arrays could be installed with minimal site preparation costs. The areas immediately west and northwest of Mauren present particularly favorable conditions for solar development. This terrain maintains consistent gentle slopes while offering sufficient space for utility-scale installations. The open agricultural character of these lands means fewer obstacles such as significant tree cover or complex topographical features that might create shading issues or complicate installation procedures. South and southwest of Mauren, the continued presence of valley floor conditions extends the potential development area considerably. These locations benefit from the same topographical advantages while potentially offering even larger contiguous areas suitable for major solar facilities. The consistent elevation and slope characteristics across these zones would allow for standardized installation approaches and optimal panel orientation across extensive areas. The slightly elevated areas to the east of Mauren, while featuring more varied topography, could still accommodate solar installations on appropriately oriented slopes. However, the increased terrain variation in these locations would likely require more careful site selection and potentially higher development costs compared to the flatter valley areas. These elevated positions might offer certain advantages in terms of air circulation and temperature management for solar panels, though the installation complexity would be greater.
