Belvaux, Luxembourg, situated at latitude 49.5128 and longitude 5.9235, offers a moderate location for solar PV energy generation with significant seasonal variations. This Northern Temperate Zone location experiences substantial differences in solar production throughout the year, with performance peaking in summer and dropping considerably in winter.

The solar energy production at this location follows a predictable seasonal pattern. During summer, panels can generate an impressive 5.25kWh per day for each kilowatt installed. Spring follows as the second most productive season with 4.69kWh/day. Production decreases significantly in autumn to 2.58kWh/day, while winter sees the lowest output at just 1.19kWh/day per kilowatt installed.

Optimal Panel Positioning

For fixed solar panel installations in Belvaux, the ideal tilt angle to maximize year-round energy production is 42 degrees facing South. This specific angle has been calculated to optimize the annual solar energy harvest by accounting for the location's latitude and the Earth's elliptical orbit, providing the best compromise between summer and winter solar positions.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Belvaux. Luxembourg's climate presents challenges that should be addressed during installation planning:

• Frequent cloud cover, particularly during autumn and winter months, contributes to the lower production figures during these seasons
• Snow accumulation in winter can temporarily reduce panel efficiency if not addressed
• Potential air pollution from nearby industrial areas and the greater Luxembourg region may create a thin film on panels over time
• Tree coverage and building shadows could be significant in this developed area

To mitigate these challenges, several preventative measures can be implemented. Installing panels with a slightly steeper angle than the optimal 42 degrees can help shed snow more effectively. Regular cleaning schedules should be established to remove dust and pollution deposits. A professional site assessment before installation can identify potential shadow issues from surrounding structures or vegetation, allowing for optimal placement or the use of micro-inverters to minimize the impact of partial shading.

Overall, while Belvaux is not an ideal location for year-round solar production due to its significant seasonal variations, proper installation techniques and maintenance can still make solar PV a viable renewable energy source, particularly during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 18 locations across Luxembourg. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Luxembourg by location

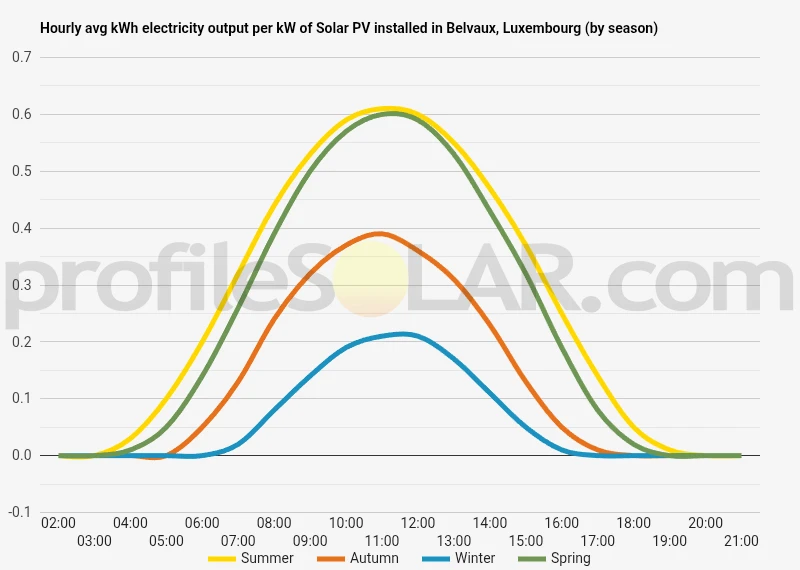

Solar output per kW of installed solar PV by season in Belvaux

Seasonal solar PV output for Latitude: 49.5128, Longitude: 5.9235 (Belvaux, Luxembourg), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Belvaux, Luxembourg

To maximize your solar PV system's energy output in Belvaux, Luxembourg (Lat/Long 49.5128, 5.9235) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Belvaux, Luxembourg

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Belvaux, Luxembourg. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Belvaux, Luxembourg

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Belvaux, Luxembourg.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Belvaux, Luxembourg

The area around Belvaux, Luxembourg presents a varied topographical landscape characteristic of the southern region of the country. Situated in what is known as the "Minett" region, Belvaux lies within the southern part of the Gutland (or "Good Land"), which comprises rolling hills, plateaus, and shallow valleys. The terrain here features moderate elevation changes, with the area being part of the larger geological formation that extends into the neighboring regions of France and Belgium. The immediate vicinity of Belvaux includes gentle slopes that rise toward the north and west, while the land opens up somewhat toward the southeast. The elevation generally ranges between 270 and 350 meters above sea level throughout this region. Several small streams and minor waterways cut through the landscape, creating natural drainage patterns that have shaped the local topography over time.

Geological and Land Features

The underlying geology of the Belvaux area is notable for its iron-rich soil and rock formations, a characteristic that historically supported the region's steel industry. These geological features have created a landscape of moderately undulating terrain with occasional steeper inclines. The area also contains patches of forest interspersed with open agricultural land and developed areas, resulting in a mixed-use landscape. To the south of Belvaux, the terrain becomes slightly more level as it approaches the French border, while to the north, the landscape gradually rises toward the central plateaus of Luxembourg. This variation creates a mosaic of different slope aspects and exposures throughout the region.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Belvaux would be the gently sloping south-facing hillsides and plateaus that can be found primarily to the south and southeast of the town. These locations offer favorable aspects for solar exposure while avoiding the steeper terrain that would complicate installation and increase costs. Particularly promising are the former industrial areas and brownfield sites scattered throughout the region. The post-industrial landscape around Belvaux and neighboring communities like Esch-sur-Alzette contains numerous reclaimed or abandoned industrial plots that present minimal conflicts with agricultural or conservation priorities. These sites often have existing infrastructure connections and disturbed land that limit the environmental impact of new development. The more level agricultural areas to the southeast also present opportunities for solar development, though these would need to be balanced against agricultural land use priorities. Areas with poorer soil quality or marginal agricultural value would be preferable for conversion to solar use.

Topographical Considerations

When evaluating specific sites, developers should note that the moderate relief of the area means that careful site selection is necessary to avoid areas with excessive shading from nearby hills or forest patches. The rolling nature of the landscape means that even within a single potential development site, there may be significant variations in slope and aspect that affect solar potential. The stream valleys that cut through the region generally run in a northeast to southwest direction, creating ridge lines between them that often have favorable south-facing aspects. These ridge areas, where not heavily forested or developed, could provide ideal locations for solar arrays. In summary, the topography around Belvaux offers several promising options for large-scale solar PV development, with the most suitable areas being south-facing slopes, reclaimed industrial land, and selected agricultural areas with appropriate exposure and minimal competition with other land uses.

Luxembourg solar PV Stats as a country

Luxembourg ranks 72nd in the world for cumulative solar PV capacity, with 209 total MW's of solar PV installed. Each year Luxembourg is generating 330 Watts from solar PV per capita (Luxembourg ranks 10th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Luxembourg?

Yes, there are several incentives for businesses wanting to install solar energy in Luxembourg. The government offers a range of financial support measures, including grants and tax credits, as well as access to low-interest loans. Additionally, businesses can benefit from the Feed-in Tariff (FIT) scheme which guarantees a fixed price for electricity generated by renewable sources such as solar energy. Businesses may also be eligible for additional subsidies from local authorities or other organisations.

Do you have more up to date information than this on incentives towards solar PV projects in Luxembourg? Please reach out to us and help us keep this information current. Thanks!
