Solar Energy Potential in Antsiranana, Madagascar

Antsiranana, Madagascar, located at -12.3154, 49.2788, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, making it a potentially valuable site for solar photovoltaic (PV) installations. The seasonal electricity output from solar PV systems in Antsiranana shows strong performance year-round. Spring stands out as the most productive season, generating approximately 7.16 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.70 kWh/day, while autumn and winter produce slightly lower but still substantial outputs of 5.79 kWh/day and 5.58 kWh/day respectively. For fixed solar panel installations in Antsiranana, the ideal tilt angle to maximize year-round energy production is 11 degrees facing North. This specific angle has been calculated by analyzing the daily solar elevation patterns at this latitude and weighting them according to the location's solar energy potential.

Seasonal Considerations

The spring and summer months represent the peak solar production periods in Antsiranana. During these seasons, the more direct angle of sunlight combined with typically clearer skies creates optimal conditions for solar energy generation. The nearly 28% higher output in spring compared to winter highlights the importance of considering seasonal variations when planning energy needs and storage solutions. Even during the less productive winter months, the output remains substantial at 5.58 kWh/day per installed kilowatt, which is still higher than many non-tropical locations achieve during their peak seasons. This year-round productivity makes Antsiranana particularly suitable for solar energy investments.

Environmental and Weather Challenges

Despite favorable solar conditions, Antsiranana faces some environmental challenges that could affect solar production. The location's tropical climate brings a distinct wet season, typically from November to April, which can reduce solar efficiency through increased cloud cover and rainfall. These conditions may temporarily decrease energy production during what would otherwise be highly productive months. The coastal location also exposes solar installations to potential cyclone activity during the wet season. Strong winds can damage poorly secured panels, while salt spray from the nearby ocean may accelerate corrosion of mounting hardware and electrical components over time.

Mitigation Strategies

To maximize solar production in Antsiranana, several preventative measures should be considered:

• Installing corrosion-resistant mounting systems and marine-grade components to withstand salt exposure
• Using cyclone-rated mounting structures designed to withstand tropical storm conditions
• Implementing regular cleaning protocols to remove salt deposits and dust, which is especially important during the dry season
• Considering slightly oversized systems to compensate for reduced production during cloudy periods in the wet season
• Installing proper drainage systems around ground-mounted arrays to prevent flooding during heavy rainfall

With these considerations addressed, Antsiranana represents an excellent location for solar energy production, with its consistent year-round output providing a reliable renewable energy source for local communities and businesses.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 6 locations across Madagascar. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Madagascar by location

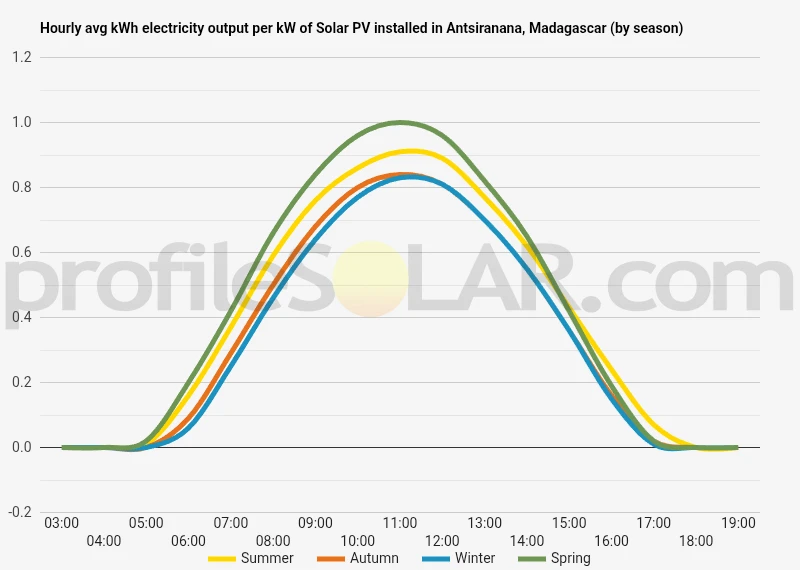

Solar output per kW of installed solar PV by season in Antsiranana

Seasonal solar PV output for Latitude: -12.3154, Longitude: 49.2788 (Antsiranana, Madagascar), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Antsiranana, Madagascar

To maximize your solar PV system's energy output in Antsiranana, Madagascar (Lat/Long -12.3154, 49.2788) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Antsiranana, Madagascar

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Antsiranana, Madagascar. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	18° North in Autumn	28° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Antsiranana, Madagascar

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Antsiranana, Madagascar.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Antsiranana, Madagascar

Antsiranana, formerly known as Diego Suarez, sits at the northernmost tip of Madagascar. The topography of this region is characterized by a dramatic and diverse landscape that combines coastal features, highlands, and lowlands.

Coastal Features

The city of Antsiranana itself is nestled on a peninsula that extends into a large, sheltered bay—one of the finest natural harbors in the Indian Ocean. This bay, known as Diego Suarez Bay, is surrounded by steep limestone cliffs that rise sharply from the water's edge in many places. The coastline around Antsiranana features numerous coves, inlets, and smaller bays, creating a jagged, irregular shoreline.

Mountain Ranges and Highlands

Moving inland from the coast, the terrain becomes increasingly elevated and complex. The region is dominated by the northern extension of Madagascar's central highland plateau. These highlands include several notable mountain ranges, including the Montagne d'Ambre (Amber Mountain) to the south of Antsiranana. This volcanic massif rises to approximately 1,475 meters above sea level and creates a significant topographical feature in the landscape. The Ankarana Massif, another important geological formation in the region, is characterized by its sharp limestone karst formations known as "tsingy." These needle-like limestone formations create a rugged, almost impassable terrain in parts of the region.

Plains and Valleys

Between the mountain ranges lie several plains and valley systems. These lowland areas typically have more gentle slopes and are often where agricultural activities are concentrated. The soil in these valleys tends to be more fertile than the rocky mountain slopes, though much of northern Madagascar faces challenges with soil erosion.

Rivers and Drainage

The region has several river systems that have carved valleys through the mountainous terrain. These rivers generally flow from the higher elevations toward the coast, creating natural corridors through the landscape. During the rainy season, these rivers can swell significantly, while in drier periods they may reduce to a trickle.

Suitability for Solar PV Development

When considering large-scale solar photovoltaic development in the Antsiranana region, several areas present favorable conditions:

The Coastal Plains

The relatively flat coastal plains to the west and southwest of Antsiranana city offer promising locations for solar PV installations. These areas benefit from minimal shadowing effects from mountains and generally have good exposure to sunlight throughout the day. The land here is less valuable for agriculture than the fertile valleys, making it more economically viable for solar development.

Highland Plateaus

Several elevated plateaus in the region, particularly those located between major mountain ranges, could serve as excellent sites for solar farms. These plateaus typically have reduced cloud cover compared to the mountains themselves and offer large, contiguous areas of relatively flat land. The plateaus to the south and southeast of Antsiranana, where the elevation is moderate but not extreme, present particularly good opportunities.

Challenges in Mountainous Areas

The more mountainous regions, particularly around Montagne d'Ambre, present significant challenges for large-scale solar development. These areas not only have difficult terrain that would complicate construction and maintenance, but they also experience more cloud cover due to orographic effects. Additionally, many of these highland areas are protected as nature reserves or national parks, further limiting their availability for development. The karst landscapes of the Ankarana Massif, while receiving abundant sunshine, would be extremely difficult to develop due to their irregular, jagged terrain and ecological sensitivity.

Optimal Areas

The most promising areas for large-scale solar PV development would be the gently sloping plains approximately 15-30 kilometers south and southwest of Antsiranana city. These areas combine favorable topography (minimal slope, good drainage), reduced risk of flooding, proximity to existing infrastructure, and excellent solar exposure. The region between Antsiranana and the Ankarana Massif contains several expanses of land that would be well-suited for solar farms, particularly in areas where the natural vegetation has already been cleared for other purposes.
