The location at Ampang, Kuala Lumpur, Malaysia, situated at latitude 3.1539 and longitude 101.7451, presents a highly favorable environment for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with minimal seasonal variations in solar potential.

Year-round Solar Performance

Solar panel performance in Ampang remains remarkably stable across all seasons. The daily electricity output per kilowatt of installed solar capacity shows only slight fluctuations:

• Spring: 5.44 kWh/day
• Summer: 5.39 kWh/day
• Autumn: 5.39 kWh/day
• Winter: 5.26 kWh/day

This consistency is a significant advantage for solar energy production, as it ensures a steady and reliable power supply throughout the year. The minimal variation between seasons means that solar installations in Ampang can operate efficiently without the substantial drops in output often seen in locations farther from the equator.

Optimal Panel Tilt

For fixed solar panel installations in Ampang, Kuala Lumpur, the ideal tilt angle to maximize year-round energy production is 3 degrees facing South. This nearly flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively high in the sky throughout the year.

Environmental Considerations

While Ampang's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider. The region experiences a monsoon season, which can bring increased cloud cover and rainfall. However, these periods are typically short-lived and do not significantly impact overall annual energy production. To mitigate potential issues, solar installations should incorporate proper drainage systems to prevent water accumulation on panels during heavy rains. Additionally, regular cleaning and maintenance schedules should be implemented to address any dust or debris buildup, which can be more prevalent in tropical environments.

Conclusion

In summary, Ampang, Kuala Lumpur, Malaysia, offers an excellent location for solar PV installations. The consistent year-round sunlight and minimal seasonal variations create an ideal environment for stable and efficient solar energy production. With proper installation techniques and maintenance practices, solar panels in this area can provide a reliable and sustainable source of electricity throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

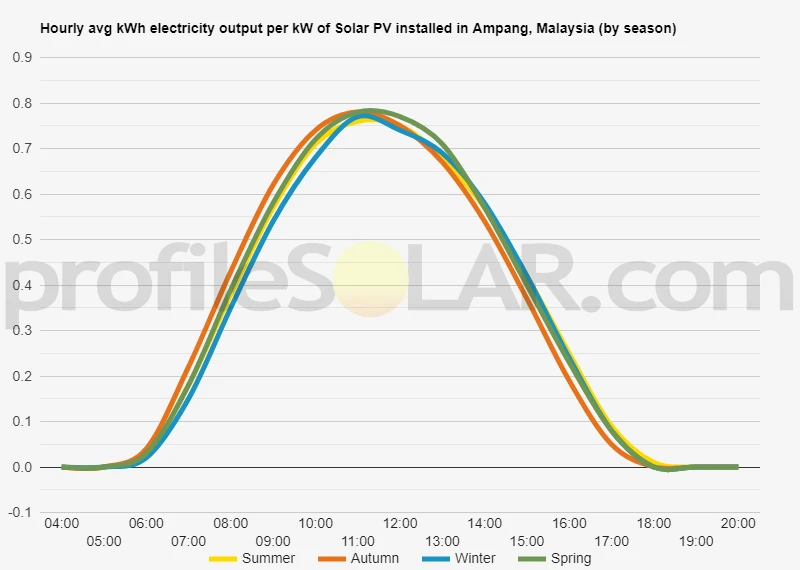

Solar output per kW of installed solar PV by season in Ampang

Seasonal solar PV output for Latitude: 3.1539, Longitude: 101.7451 (Ampang, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° South in Ampang, Malaysia

To maximize your solar PV system's energy output in Ampang, Malaysia (Lat/Long 3.1539, 101.7451) throughout the year, you should tilt your panels at an angle of 3° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ampang, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ampang, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	9° South in Autumn	18° South in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ampang, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ampang, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ampang, Malaysia

The topography around Ampang, Malaysia is characterized by a mix of urban landscapes and natural features. Ampang is situated on the eastern edge of Kuala Lumpur, the capital city of Malaysia, and is part of the larger Klang Valley metropolitan area. The terrain in this region is generally low-lying, with some gently rolling hills and small valleys interspersed throughout the area.

To the east of Ampang, the land gradually rises into the Titiwangsa Mountains, which form part of the central mountain range of Peninsular Malaysia. These mountains create a backdrop of lush, forested hills that contrast with the more developed urban areas closer to the city center. The Ampang area itself is relatively flat, with some slight undulations in the landscape.

Several rivers and streams flow through the region, including the Ampang River and the Klang River, which have shaped the local topography over time. These waterways have created natural drainage systems and small floodplains in some areas.

Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, there are a few considerations to keep in mind:

1. The most suitable locations for solar PV would be relatively flat, open areas with minimal shading from trees or buildings. These conditions are more likely to be found in the outskirts of the Klang Valley, away from the densely populated urban centers.

2. Areas to the east and southeast of Ampang, where the terrain begins to open up and become less developed, might offer potential sites for solar installations. These regions may have more available land and fewer obstructions to sunlight.

3. Some of the cleared or agricultural lands in the surrounding districts of Hulu Langat or Sepang could potentially be repurposed for solar PV projects, as they often have the necessary space and exposure to sunlight.

4. It's important to note that Malaysia's tropical climate, with its high humidity and frequent cloud cover, can pose challenges for solar energy production. Therefore, site selection would need to carefully consider local weather patterns and solar irradiance data to maximize efficiency.

5. Any large-scale solar PV project would need to balance the need for suitable land with environmental concerns, as many of the open areas around Ampang are part of important forest ecosystems or agricultural lands.

In conclusion, while the immediate vicinity of Ampang may not be ideal for large-scale solar PV due to its urban nature, there are potential opportunities in the wider region, particularly in less developed areas to the east and southeast, where the topography and land use may be more conducive to such projects.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]
