Balik Pulau, Penang, Malaysia, situated at latitude 5.352 and longitude 100.2824, presents a favorable location for solar energy generation throughout the year. This tropical region benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Year-round Solar Performance

Solar panel installations in Balik Pulau can expect relatively steady electricity output across all meteorological seasons. The average daily electricity generation per kilowatt of installed solar capacity ranges from 5.19 kWh in autumn to 5.95 kWh in spring. Winter and summer seasons also show robust performance with 5.75 kWh/day and 5.44 kWh/day, respectively.

The minimal variation between seasons indicates that Balik Pulau is an excellent location for consistent solar energy production throughout the year. Spring emerges as the most productive season, closely followed by winter, making these periods particularly advantageous for solar energy generation.

Optimal Panel Tilt

For fixed solar panel installations in Balik Pulau, Penang, the ideal tilt angle to maximize year-round energy production is 5 degrees facing South. This relatively low tilt angle is due to the location's proximity to the equator, where the sun's path is more directly overhead throughout the year.

Environmental Considerations

While Balik Pulau's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider:

• Heavy rainfall during the monsoon season (typically October to March) may temporarily reduce solar panel efficiency.
• High humidity levels can lead to increased dust accumulation on panels, potentially affecting their performance.

To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Installing panels at the recommended 5-degree tilt can also help with natural cleaning during rainfall. Additionally, using high-quality, weather-resistant solar equipment designed for tropical climates can ensure optimal performance and longevity.

Overall, Balik Pulau's location offers excellent potential for year-round solar energy generation, with only minor seasonal fluctuations and manageable environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

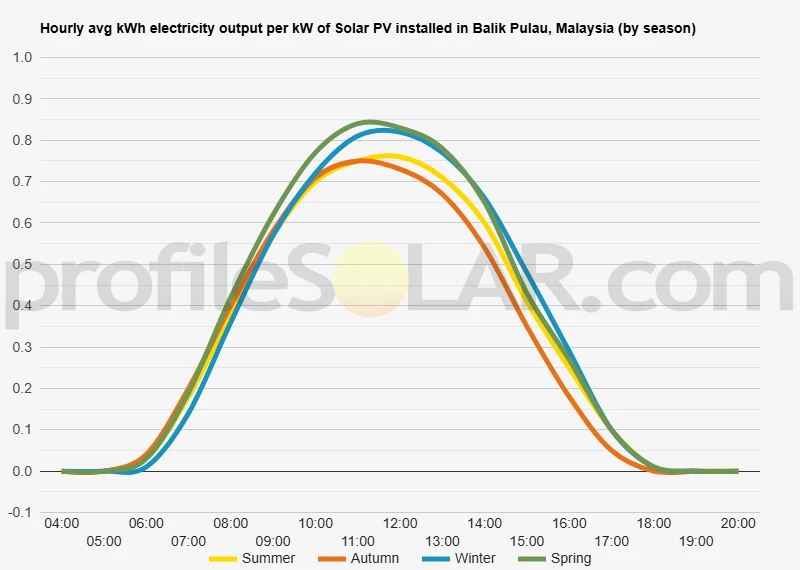

Solar output per kW of installed solar PV by season in Balik Pulau

Seasonal solar PV output for Latitude: 5.352, Longitude: 100.2824 (Balik Pulau, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Balik Pulau, Malaysia

To maximize your solar PV system's energy output in Balik Pulau, Malaysia (Lat/Long 5.352, 100.2824) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Balik Pulau, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Balik Pulau, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Balik Pulau, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Balik Pulau, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Balik Pulau, Malaysia

Balik Pulau, located on the southwestern part of Penang Island in Malaysia, is characterized by a diverse and picturesque topography. The area is a blend of coastal plains, rolling hills, and lush valleys, creating a stunning landscape that sets it apart from the more urbanized eastern side of the island. The coastal region of Balik Pulau features stretches of sandy beaches and mangrove swamps, which gradually give way to flat, low-lying areas suitable for agriculture. As one moves inland, the terrain becomes increasingly undulating, with gentle slopes and hills covered in dense tropical vegetation. These hills are part of the central hill range that runs through the middle of Penang Island, with some peaks reaching heights of around 400 to 500 meters above sea level.

Valleys and Waterways

Interspersed among the hills are fertile valleys, where much of the area's agricultural activities take place. These valleys are fed by numerous streams and small rivers that originate from the higher elevations, creating a network of waterways that contribute to the region's lush greenery and support local ecosystems.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat, open areas with good sun exposure and minimal shading from surrounding hills or vegetation. The coastal plains and low-lying agricultural areas to the west and southwest of Balik Pulau town present promising opportunities for solar PV development. These areas typically have fewer obstructions to sunlight and offer larger, contiguous plots of land that could accommodate substantial solar arrays. Some of the gently sloping hillsides facing south or southwest might also be suitable for solar installations, as they would receive ample sunlight throughout the day. However, care must be taken to balance energy production with environmental conservation, as many of these hillsides are currently covered in valuable forest ecosystems. It's worth noting that while the region around Balik Pulau has potential for solar energy development, any large-scale projects would need to be carefully planned to minimize impact on the area's rich agricultural heritage and natural beauty. Integrating solar installations with existing agricultural practices, such as agrivoltaics, could be an innovative approach to maximize land use while preserving the region's character and economic activities.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.
