Bandar Puncak Alam, Selangor, Malaysia, situated at latitude 3.1953 and longitude 101.4619, presents a highly favorable location for solar PV energy generation throughout the year. This tropical location benefits from consistent sunlight, with minimal seasonal variations in solar energy potential.

Year-Round Solar Performance

The solar energy output at this location remains remarkably stable across all seasons:

• Summer: 5.39 kWh/day per kW installed
• Autumn: 5.39 kWh/day per kW installed
• Winter: 5.26 kWh/day per kW installed
• Spring: 5.44 kWh/day per kW installed

These figures demonstrate that Bandar Puncak Alam experiences excellent solar potential throughout the year, with only slight variations between seasons.

Optimal Panel Tilt

For fixed panel installations in this location, the ideal tilt angle to maximize year-round solar production is 3 degrees South. This near-horizontal orientation takes advantage of the location's proximity to the equator, allowing panels to capture sunlight efficiently throughout the day and year.

Environmental Considerations

While Bandar Puncak Alam's tropical climate is generally conducive to solar energy production, there are a few environmental factors to consider: 1. Rainfall: The region experiences a tropical rainforest climate with significant rainfall throughout the year. To mitigate the impact of rain on solar panels, installations should include proper drainage systems and use high-quality, water-resistant panels. 2. Humidity: High humidity levels can potentially lead to condensation on solar panels. Using panels with anti-reflective coatings and ensuring proper ventilation can help combat this issue. 3. Cloud cover: Although sunlight is generally abundant, occasional cloud cover during the monsoon season may temporarily reduce solar output. Employing microinverters or power optimizers can help maintain efficiency during partially cloudy conditions.

Preventative Measures

To maximize solar energy production in Bandar Puncak Alam, Selangor, consider the following preventative measures: 1. Regular cleaning: Implement a routine cleaning schedule to remove dust, pollen, and other debris that may accumulate on the panels. 2. Quality equipment: Invest in high-quality, weather-resistant solar panels and components designed to withstand tropical conditions. 3. Monitoring systems: Install a robust monitoring system to quickly identify and address any performance issues. 4. Proper installation: Ensure panels are installed with adequate spacing for airflow and at the optimal tilt angle to maximize energy capture.

By implementing these measures, solar PV installations in Bandar Puncak Alam can take full advantage of the location's excellent year-round solar potential, making it an ideal site for sustainable energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

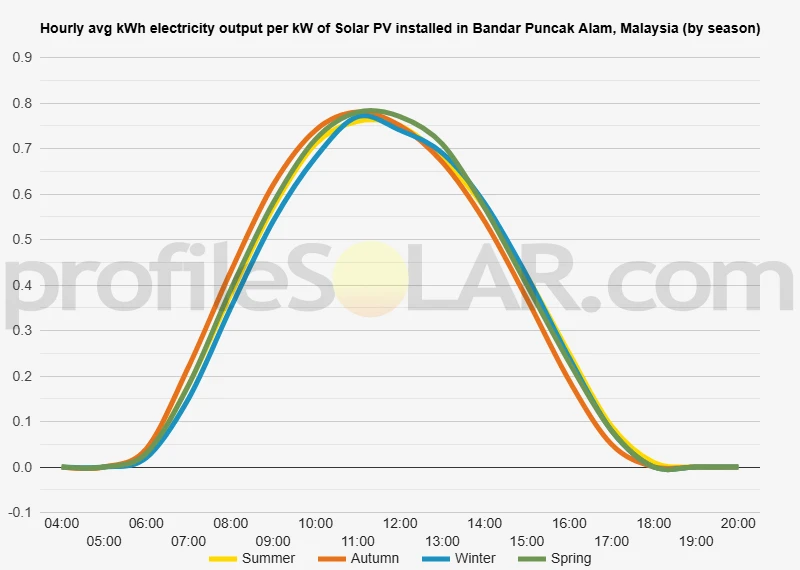

Solar output per kW of installed solar PV by season in Bandar Puncak Alam

Seasonal solar PV output for Latitude: 3.1953, Longitude: 101.4619 (Bandar Puncak Alam, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° South in Bandar Puncak Alam, Malaysia

To maximize your solar PV system's energy output in Bandar Puncak Alam, Malaysia (Lat/Long 3.1953, 101.4619) throughout the year, you should tilt your panels at an angle of 3° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bandar Puncak Alam, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bandar Puncak Alam, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	9° South in Autumn	18° South in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bandar Puncak Alam, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bandar Puncak Alam, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bandar Puncak Alam, Malaysia

The topography around Bandar Puncak Alam, Malaysia, is characterized by a mix of gently rolling hills and flat lowlands. This area, located in the state of Selangor, is part of the larger Klang Valley region. The landscape is primarily composed of former oil palm plantations and secondary forests, with some areas being developed for residential and commercial purposes. To the north and east of Bandar Puncak Alam, the terrain gradually rises into low hills, with elevations reaching up to 100-150 meters above sea level. These hills are part of the foothills of the Titiwangsa Mountains, which form the backbone of Peninsular Malaysia. The southern and western parts of the area are generally flatter, with some low-lying areas that may be prone to occasional flooding during heavy rainfall.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The relatively flat terrain to the south and west of Bandar Puncak Alam presents favorable conditions for solar farm development. These areas offer ample space and minimal shading, which are crucial for maximizing solar energy capture. Former oil palm plantations that have been cleared or are no longer productive could be ideal locations for solar PV projects. These sites often have good road access and are already somewhat altered by human activity, potentially reducing environmental concerns associated with new development. The gently sloping hills to the north and east might also be suitable for solar installations, particularly on south-facing slopes that receive more direct sunlight throughout the day. However, developers would need to carefully consider the impact of terrain on construction costs and panel efficiency. It's important to note that while the topography is generally favorable for solar PV in this region, other factors such as proximity to power infrastructure, local zoning regulations, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar projects near Bandar Puncak Alam.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
