Bangi, Selangor, Malaysia, located at 2.9041° N, 101.7809° E, presents a highly favorable environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with minimal seasonal variations typically characterized by wet and dry periods rather than traditional seasons.

Year-round Solar Performance

The solar energy potential in Bangi remains remarkably stable across all meteorological seasons. Spring sees the highest output at 5.68 kWh per day for each kilowatt of installed solar capacity, followed closely by autumn at 5.55 kWh/day. Summer and winter also perform well, producing 5.39 kWh/day and 5.22 kWh/day, respectively. This consistency is a significant advantage for solar energy production, ensuring a reliable power supply throughout the year.

Optimal Panel Positioning

For fixed solar panel installations in Bangi, Selangor, the ideal tilt angle to maximize year-round energy production is a mere 2 degrees facing south. This nearly flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively high in the sky throughout the year.

Environmental Considerations

While Bangi's climate is generally conducive to solar energy production, there are a few environmental factors to consider: 1. Rainfall: The region experiences a monsoon season, which can lead to increased cloud cover and rainfall, potentially reducing solar output. 2. Humidity: High humidity levels can slightly decrease panel efficiency and may contribute to faster degradation of equipment over time. To mitigate these factors, consider the following preventative measures when installing solar systems:

• Use high-quality, weather-resistant solar panels and components designed for tropical climates
• Implement regular cleaning schedules to remove dust and debris, which can accumulate more quickly in humid environments
• Install a robust drainage system to prevent water accumulation on or around the panels during heavy rainfall

Despite these minor challenges, Bangi's location remains highly advantageous for solar energy production. The consistent year-round sunlight and minimal seasonal variations make it an ideal site for solar PV installations, promising steady and reliable renewable energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

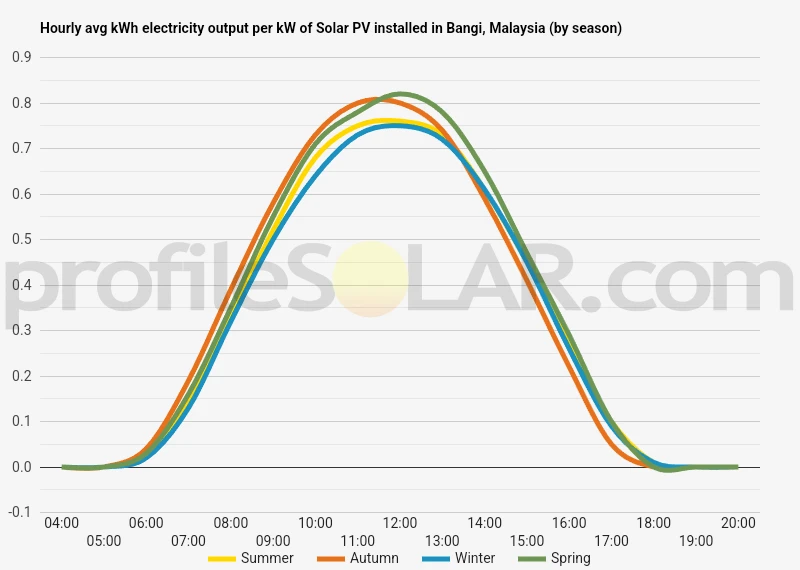

Solar output per kW of installed solar PV by season in Bangi

Seasonal solar PV output for Latitude: 2.9041, Longitude: 101.7809 (Bangi, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Bangi, Malaysia

To maximize your solar PV system's energy output in Bangi, Malaysia (Lat/Long 2.9041, 101.7809) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bangi, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bangi, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	9° South in Autumn	18° South in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bangi, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bangi, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bangi, Malaysia

Bangi, Malaysia, located at approximately 2.9041 latitude and 101.7809 longitude, is situated in a region characterized by a mix of gently rolling hills and flat lowlands. The area surrounding Bangi is part of the larger Klang Valley, which is known for its diverse topography. The terrain in and around Bangi features a combination of low-lying plains and modest elevations. To the east, the land gradually rises towards the Titiwangsa Mountains, which form the backbone of Peninsular Malaysia. This mountain range, though not immediately adjacent to Bangi, influences the overall landscape of the region. Closer to Bangi itself, the topography is predominantly flat to slightly undulating. The area is interspersed with small hills and shallow valleys, creating a subtle variation in the landscape. Many of these gentle slopes have been developed for residential and commercial purposes, while some remain covered in vegetation. The Langat River, a significant waterway in the region, flows near Bangi, contributing to the area's topographical features. The river valley adds to the diversity of the terrain, with some low-lying areas prone to occasional flooding during heavy rainfall seasons.

Suitability for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar PV projects typically include: Flat or gently sloping land: The areas to the south and southeast of Bangi, where the terrain becomes flatter, would be particularly suitable. These regions offer larger, uninterrupted spaces that can accommodate extensive solar panel arrays without the need for significant land modification. Open, unshaded areas: Locations with minimal tree cover and natural obstructions would be preferable. The agricultural lands and former plantations in the vicinity of Bangi could potentially be repurposed for solar farms, as they often provide vast, open spaces with good sun exposure. Proximity to existing infrastructure: Areas close to power transmission lines and substations would be advantageous for connecting the solar installations to the grid. The industrial zones near Bangi, which likely have robust electrical infrastructure, could be prime candidates for solar PV development. Low flood risk areas: While the Langat River valley offers flat terrain, areas at higher elevations and away from flood-prone zones would be more suitable to protect the solar infrastructure from water damage. Brownfield sites: Any unused industrial or commercial land in the greater Bangi area could be ideal for solar PV installations, as these sites often have the necessary infrastructure and are already zoned for development. In conclusion, while the immediate vicinity of Bangi offers some potential for solar PV development, the most suitable areas would likely be found in the flatter, more open spaces to the south and southeast, away from the more densely populated urban centers and elevated regions to the east.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
