Solar PV Analysis of Batu Caves, Malaysia
Batu Caves, Selangor, Malaysia is a great location for year-round solar energy production. This area experiences consistent sunlight throughout the year due to its tropical climate, which means it doesn't have traditional seasons but rather wet and dry periods. Regardless of these periods, the amount of electricity produced from solar panels remains relatively stable.
In terms of electricity output per kilowatt (kW) of installed solar panels, you can expect around 5.39 kilowatt-hours (kWh) per day during summer and autumn, 5.26 kWh/day in winter, and slightly more at 5.44 kWh/day in spring.
This consistency makes Batu Caves an excellent site for generating solar power all year round without significant fluctuations between different times of the year. However, there might be slight dips in production during the wet season due to cloud cover or heavy rainfall blocking sunlight.
For maximum efficiency at this location with fixed panel installation, it's recommended that your panels are tilted at an angle facing 3 degrees South to capture as much sunlight as possible over the course of a day.
As far as potential obstacles to efficient solar energy production go in Batu Caves - weather could play a part. The region does experience monsoon seasons which bring heavy rainfalls that could temporarily reduce sun exposure on your panels; this would somewhat affect their productivity during those times.
To mitigate against such factors impeding your energy generation from your solar installation here though - consider installing some form or system for quickly clearing water off your panels' surfaces after heavy rains so they can get back to efficiently absorbing sunlight again ASAP afterwards; also ensure they're robustly built enough to withstand any high winds associated with local monsoons too without damage occurring that'd further impact their productivity long-term either.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Malaysia by location

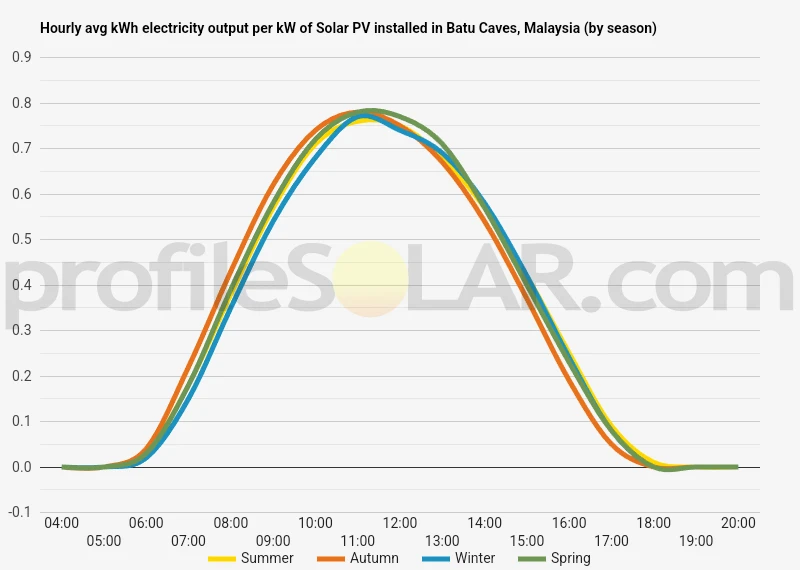

Solar output per kW of installed solar PV by season in Batu Caves
Seasonal solar PV output for Latitude: 3.2248, Longitude: 101.678 (Batu Caves, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 3° South in Batu Caves, Malaysia
To maximize your solar PV system's energy output in Batu Caves, Malaysia (Lat/Long 3.2248, 101.678) throughout the year, you should tilt your panels at an angle of 3° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Batu Caves, Malaysia
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Batu Caves, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 13° North in Summer | 9° South in Autumn | 18° South in Winter | 3° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Batu Caves, Malaysia
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Batu Caves, Malaysia.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Batu Caves, Malaysia
Batu Caves is located in the Gombak district of Selangor, Malaysia. The area is characterized by limestone hills and caves, which are home to a large number of Hindu temples. The landscape around Batu Caves is generally hilly with dense vegetation.
As for solar PV installations, flat areas with maximum sun exposure would be ideal. Given that the region around Batu Caves is quite hilly and forested, it might not be the best suited for large-scale solar PV installations. However, rooftops of buildings in urbanized areas or unused lands could potentially be used.
Areas such as Sepang and Kuala Langat to the south which have more open space and less topographical constraints may be better suited for such projects. Additionally, these regions receive ample sunlight throughout most parts of the year making them suitable locations.
However, any decision on setting up large-scale solar PV systems should also consider other factors like local regulations regarding land use and environmental impacts, availability of infrastructure for power transmission etc.
Malaysia solar PV Stats as a country
Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Malaysia?
Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
