Batu Pahat, Johor, Malaysia, located at 1.8791° N, 102.9964° E, presents a favorable environment for solar energy production throughout the year. This tropical location benefits from consistent sunlight, with weather patterns primarily characterized by wet and dry seasons rather than traditional four-season cycles.

Year-round Solar Performance

Solar photovoltaic (PV) systems in Batu Pahat demonstrate impressive energy output across all meteorological seasons. Spring sees the highest production at 5.64 kWh per day for each kilowatt of installed capacity. Summer yields 5.06 kWh/day, autumn 5.37 kWh/day, and winter 5.26 kWh/day. These figures indicate a relatively stable energy production throughout the year, with only minor fluctuations between seasons. The consistency in solar output can be attributed to Batu Pahat's proximity to the equator, which ensures a more uniform sun angle and daylight hours across the year. This stability is advantageous for solar energy planning and utilization, as it provides a reliable power source with minimal seasonal variations.

Optimal Panel Positioning

For fixed solar panel installations in Batu Pahat, Johor, the ideal tilt angle to maximize year-round energy production is 2 degrees facing South. This near-horizontal orientation is typical for locations close to the equator, where the sun's path remains relatively high in the sky throughout the year.

Environmental Considerations

While Batu Pahat's location is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The tropical climate can lead to increased cloud cover and rainfall, potentially reducing solar efficiency. 2. Dust and air pollution: Being in a developing region, air quality issues may impact panel performance. To mitigate these factors, consider the following measures when installing solar PV systems: 1. Use high-quality, weather-resistant panels designed for tropical climates. 2. Implement regular cleaning schedules to remove dust and debris. 3. Install panels at a slight angle to facilitate natural cleaning by rainwater. 4. Consider microinverter or power optimizer technology to minimize the impact of partial shading. By addressing these environmental factors, solar installations in Batu Pahat can maintain optimal performance and longevity, capitalizing on the region's abundant solar resources.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

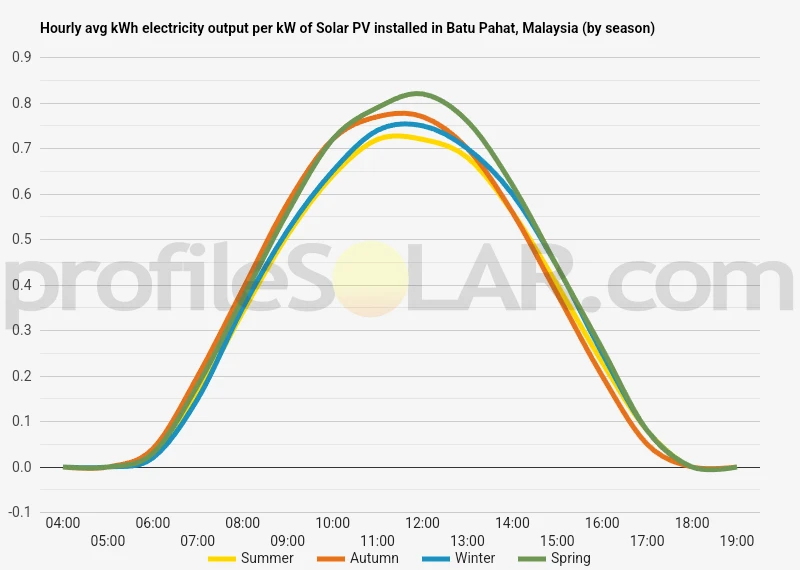

Solar output per kW of installed solar PV by season in Batu Pahat

Seasonal solar PV output for Latitude: 1.8791, Longitude: 102.9964 (Batu Pahat, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Batu Pahat, Malaysia

To maximize your solar PV system's energy output in Batu Pahat, Malaysia (Lat/Long 1.8791, 102.9964) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Batu Pahat, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Batu Pahat, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	17° South in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Batu Pahat, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Batu Pahat, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Batu Pahat, Malaysia

The topography around Batu Pahat, Malaysia, is predominantly flat to gently rolling. This coastal area is characterized by low-lying plains that extend inland from the Strait of Malacca. The terrain is mostly composed of sedimentary deposits, resulting in fertile soil that has traditionally been used for agriculture, particularly oil palm and rubber plantations.

As you move slightly inland from Batu Pahat, the landscape gradually becomes more undulating, with small hills and shallow valleys. However, there are no significant mountains or steep slopes in the immediate vicinity. The area is crisscrossed by numerous rivers and streams, including the Batu Pahat River, which flows through the city and into the strait.

Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the flat and open spaces surrounding Batu Pahat offer promising potential. The best locations would likely be found in the following areas:

1. Agricultural lands: Some of the existing plantations or farmlands could potentially be converted or dual-purposed for solar energy production. These areas are already cleared and relatively flat, making them ideal for solar panel installation.
2. Coastal plains: The flat, open areas near the coast receive ample sunlight and have few obstructions, making them suitable for large solar arrays. However, consideration must be given to potential flooding risks and salt spray effects on equipment.
3. Industrial zones: Batu Pahat has several industrial areas on its outskirts. The rooftops of large factories or warehouses could be utilized for solar panel installation, maximizing land use efficiency.
4. Reclaimed land: Any reclaimed land areas along the coast that are not designated for immediate development could be temporarily or permanently used for solar energy production.

When considering locations for large-scale solar PV installations, it's important to factor in proximity to existing electrical infrastructure, land ownership and use regulations, and environmental impact assessments. Additionally, while the region generally receives ample sunlight, seasonal variations in cloud cover and rainfall should be taken into account when planning such projects.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.
