Gambang, Pahang, Malaysia is located in the tropics, where sunlight is consistent for most of the year. This makes it a pretty good location for generating energy through solar photovoltaic (solar PV) systems all year round. The amount of electricity that can be produced from each kilowatt (kW) of installed solar varies slightly with the seasons: you can expect around 5.54 kilowatt-hours (kWh) per day in summer, 5.40 kWh/day in autumn, 4.75 kWh/day in winter and 5.74 kWh/day in spring.

To maximize total yearly production from a solar PV system at this location, it's best to tilt panels towards south at an angle of about three degrees.

However, there might be some local factors that could affect solar production here:

1) Rainy Season: In tropical countries like Malaysia, heavy rainfall during monsoon season may reduce sunlight exposure and hence lower the output from your solar panels.

2) Dust and Debris: Accumulation of dust or debris on the surface of your panel can block sunlight and reduce its efficiency.

3) High Temperature: While sunny weather is generally good for producing solar energy; very high temperatures can actually decrease efficiency as most panels perform best under cooler conditions.

Here are some preventative measures you could take when installing a Solar PV system to ensure greater energy production:

1) Regular Cleaning: To combat dust or debris accumulation on your panels' surface make sure they are regularly cleaned

2) Adequate Ventilation: Ensure there's enough space behind your panels so air circulation can help cool them down when temperatures rise

3) Install Weather Resistant Panels: Use weather resistant panels which will stand up better to heavy rainfall during monsoon season

In conclusion Gambang has strong potential for harnessing sun power throughout the year due to its consistent sunshine but attention needs to be paid on maintenance and choosing right type of panels to ensure maximum output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

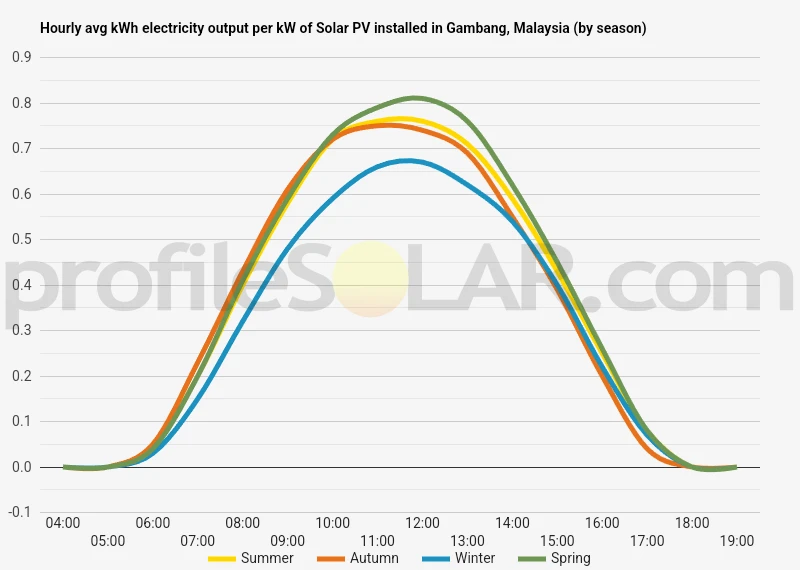

Solar output per kW of installed solar PV by season in Gambang

Seasonal solar PV output for Latitude: 3.7435, Longitude: 103.138 (Gambang, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.54kWh/day in Summer.

Average 5.40kWh/day in Autumn.

Average 4.75kWh/day in Winter.

Average 5.74kWh/day in Spring.

Ideally tilt fixed solar panels 3° South in Gambang, Malaysia

To maximize your solar PV system's energy output in Gambang, Malaysia (Lat/Long 3.7435, 103.138) throughout the year, you should tilt your panels at an angle of 3° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 3.7435, Longitude: 103.138, the ideal angle to tilt panels is 3° South

Seasonally adjusted solar panel tilt angles for Gambang, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gambang, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gambang, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gambang, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gambang, Malaysia

Gambang is located in the state of Pahang, Malaysia. The topography around Gambang is relatively flat with some hilly areas. It is situated on a plain surrounded by tropical rainforests and plantations. The area experiences a tropical climate, characterized by high humidity and temperatures ranging from 22 to 33 degrees Celsius throughout the year.

When considering large scale solar PV installations, factors such as sunlight exposure, land availability and proximity to grid connections are important. Given its equatorial location, Gambang receives abundant sunlight throughout the year which makes it suitable for solar power generation.

Large-scale solar PV projects would be best suited in areas that are relatively flat or have gentle slopes for ease of installation and maintenance - this could potentially include cleared plantation lands or other non-forest agricultural lands. Additionally, locations closer to existing transmission lines would be beneficial to minimize infrastructure costs related to connecting the solar farm to the grid.

However, any specific site selection should also consider environmental impacts and local regulations regarding land use change especially if it involves deforestation or conversion of agricultural land into energy production sites. A detailed feasibility study including technical assessment (e.g., irradiance levels), environmental impact assessment (EIA), socio-economic considerations etc., needs to be carried out before deciding on a specific location for large-scale solar PV installation.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
