Jelutong, Penang, Malaysia, located in the tropical region, offers a promising environment for solar energy generation throughout the year. The consistent sunlight and relatively stable seasonal patterns make it an attractive location for solar PV installations.

Year-round Solar Production

The solar energy output in Jelutong remains relatively steady across all seasons, with only minor fluctuations. Spring sees the highest production at 5.95 kWh per day per kW installed, followed closely by winter at 5.75 kWh. Summer and autumn show slightly lower but still impressive outputs at 5.44 kWh and 5.19 kWh, respectively. This consistent performance throughout the year is a significant advantage for solar energy production in Jelutong. Unlike locations with more extreme seasonal variations, solar panels here can maintain high efficiency levels year-round, providing a reliable source of renewable energy.

Optimal Panel Tilt

For fixed panel installations in Jelutong, Penang, the ideal tilt angle to maximize year-round solar production is 5 degrees South. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, taking into account the location's proximity to the equator and the sun's path across the sky.

Environmental Considerations

While Jelutong's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity: The tropical climate can lead to increased moisture in the air, potentially affecting solar panel efficiency. 2. Heavy rainfall: Frequent rain during the wet season may temporarily reduce solar output. To mitigate these issues, consider the following preventative measures: - Use high-quality, weather-resistant solar panels designed for tropical climates. - Ensure proper sealing and waterproofing of all electrical components. - Implement a regular cleaning and maintenance schedule to remove any dirt or debris that may accumulate on the panels. - Install panels at a slight angle to facilitate natural cleaning by rainwater. By taking these precautions, solar installations in Jelutong can maximize their energy production potential and maintain long-term efficiency despite the challenging tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

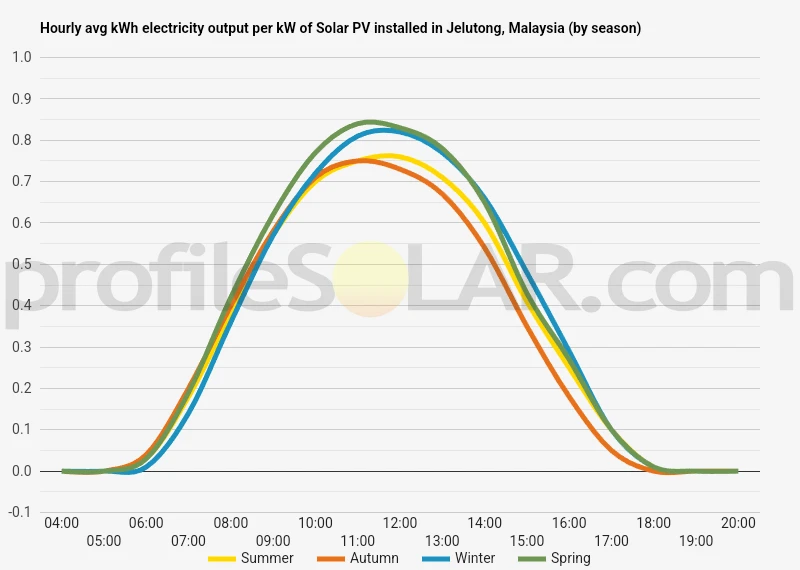

Solar output per kW of installed solar PV by season in Jelutong

Seasonal solar PV output for Latitude: 5.3958, Longitude: 100.3125 (Jelutong, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Jelutong, Malaysia

To maximize your solar PV system's energy output in Jelutong, Malaysia (Lat/Long 5.3958, 100.3125) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jelutong, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jelutong, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jelutong, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jelutong, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jelutong, Malaysia

The area around Jelutong, Malaysia, is characterized by a mix of urban development and coastal features. Jelutong itself is a suburb of George Town, located on the eastern coast of Penang Island. The topography in this region is generally flat to gently sloping, with some low-lying areas near the coast.

The immediate vicinity of Jelutong is heavily urbanized, with residential and commercial buildings dominating the landscape. As you move inland from the coast, the terrain gradually rises, but remains relatively gentle. There are no significant hills or mountains in the immediate area.

To the west of Jelutong, the land becomes more elevated as it approaches the central part of Penang Island. This area features some rolling hills and forested regions, but still maintains a generally moderate topography. The highest point on Penang Island, Western Hill, is located several kilometers to the west of Jelutong and reaches an elevation of about 833 meters (2,733 feet).

For large-scale solar PV installations, the most suitable areas would likely be found outside the immediate urban core of George Town and Jelutong. The following regions near Jelutong could be potential candidates for solar development:

1. Mainland Penang (Seberang Perai): The mainland portion of Penang state, located across the strait from Penang Island, offers more open and flat land. Areas in Seberang Perai, particularly in its central and southern districts, could provide suitable locations for large-scale solar farms.
2. Northern coast of Penang Island: Moving north from Jelutong, there are some less densely populated areas along the coast that might accommodate solar installations, though careful consideration would need to be given to potential land use conflicts and environmental impacts.
3. Industrial zones: Some of the industrial areas on the outskirts of George Town or in Bayan Lepas to the south might have large rooftops or unused land parcels suitable for solar PV arrays.

It's important to note that while the topography around Jelutong is generally favorable for solar PV in terms of being relatively flat, the high level of urbanization and limited available land on Penang Island may pose challenges for large-scale installations. Any solar development would need to carefully consider factors such as land availability, existing infrastructure, and local regulations.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
