Kampong Permatang Pauh, Penang, Malaysia is an excellent location for year-round solar energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasonal variations being more about wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Output Performance

The solar energy production at this location shows strong and consistent performance across all seasons. Spring delivers the highest output at 5.98kWh per day for each kilowatt of installed solar capacity, followed closely by winter at 5.73kWh/day. Summer produces 5.47kWh/day, while autumn generates 5.21kWh/day per kilowatt installed. This relatively small variation between seasons - only about 0.77kWh difference between the best and worst performing seasons - demonstrates the location's reliability for solar energy generation. The consistently high output levels make this an ideal location for solar installations.

Optimal Panel Installation

For maximum year-round energy production at Kampong Permatang Pauh, Penang, solar panels should be installed at a fixed tilt angle of 5 degrees facing south. This optimal angle has been calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental Challenges and Solutions

Several local factors could potentially impact solar energy production at this tropical location:

• Heavy rainfall and humidity: The tropical climate brings intense monsoon rains and high humidity levels that can reduce panel efficiency and create maintenance challenges
• Dust and debris accumulation: Tropical environments often have higher levels of airborne particles, pollen, and organic matter that can coat solar panels
• Extreme heat: While sunlight is abundant, excessive heat can actually reduce solar panel efficiency
• Vegetation growth: Fast-growing tropical vegetation can quickly create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install proper drainage around solar installations to prevent water accumulation and ensure quick runoff during heavy rains
• Regular cleaning schedules: Establish frequent panel cleaning routines, particularly during and after the wet season when organic growth and debris accumulation are highest
• Adequate ventilation: Design installations with proper air circulation beneath panels to reduce heat buildup and maintain optimal operating temperatures
• Vegetation management: Create and maintain clear zones around solar installations, with regular trimming of fast-growing tropical plants that could create shade
• Quality mounting systems: Use corrosion-resistant materials designed for high-humidity environments to ensure long-term structural integrity

Despite these considerations, the consistently high solar output levels throughout the year make Kampong Permatang Pauh an excellent location for solar energy generation, with proper installation and maintenance practices ensuring optimal performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

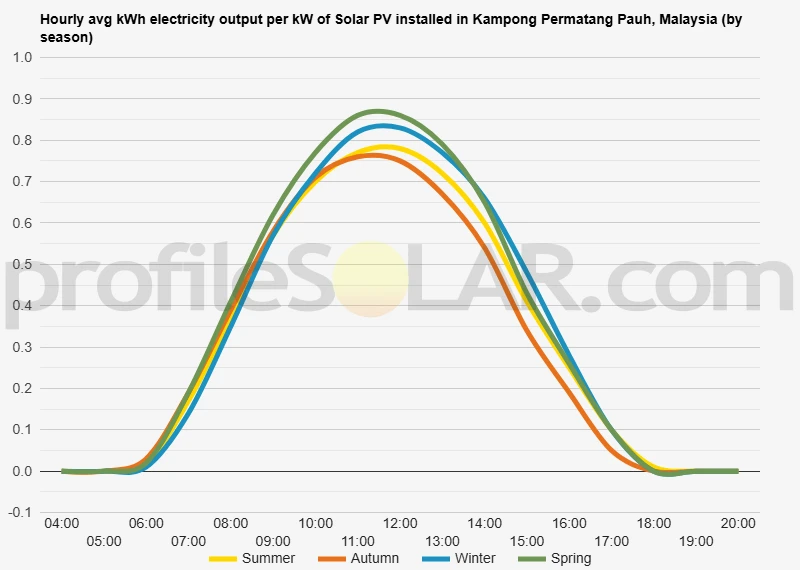

Solar output per kW of installed solar PV by season in Kampong Permatang Pauh

Seasonal solar PV output for Latitude: 5.3934, Longitude: 100.4107 (Kampong Permatang Pauh, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Kampong Permatang Pauh, Malaysia

To maximize your solar PV system's energy output in Kampong Permatang Pauh, Malaysia (Lat/Long 5.3934, 100.4107) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kampong Permatang Pauh, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kampong Permatang Pauh, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kampong Permatang Pauh, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kampong Permatang Pauh, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kampong Permatang Pauh, Malaysia

Topography Around Kampong Permatang Pauh

The landscape surrounding Kampong Permatang Pauh in Penang, Malaysia is characterized by gently rolling hills and relatively flat coastal plains typical of the northern Malaysian peninsula. This area sits within the broader Penang Island topographical system, where elevations gradually rise from sea level along the coast to modest hills inland. The terrain features a mix of agricultural land, residential developments, and patches of tropical vegetation that create a varied but generally accessible landscape. The region experiences typical tropical lowland topography with gradual elevation changes rather than steep mountainous terrain. Most of the surrounding area consists of undulating plains with gentle slopes that rarely exceed significant gradients. This makes the terrain relatively stable for development projects while providing adequate drainage patterns that follow the natural contours of the land. Local waterways and drainage channels flow through the area, creating small valleys and slightly elevated ridges that add subtle variation to an otherwise moderate landscape. The soil composition includes both alluvial deposits from historical river activity and lateritic soils common to tropical regions, providing a stable foundation for construction activities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Kampong Permatang Pauh would be the flatter agricultural areas and cleared land parcels that extend southward and eastward from the settlement. These areas offer several advantages including minimal slope gradients that reduce construction complexity and costs while maximizing panel efficiency through optimal positioning. The agricultural zones that currently support palm oil plantations or rice cultivation present excellent opportunities for solar development. These areas typically feature cleared land with minimal tree cover, reducing the need for extensive site preparation. The existing agricultural infrastructure often includes access roads that could support construction and maintenance activities for solar installations. Areas with slight southern-facing slopes would be particularly advantageous as they naturally orient toward optimal sun exposure throughout the day. The gentle elevation changes in these zones provide natural drainage while avoiding the complications associated with steep terrain or flood-prone low-lying areas. The eastern sections of the surrounding landscape offer expansive relatively flat terrain that could accommodate large solar arrays with minimal environmental disruption. These areas benefit from being inland enough to avoid coastal weather extremes while remaining accessible for grid connection and maintenance operations. Former agricultural land or areas designated for development that feature minimal existing infrastructure would be ideal candidates. Such locations typically offer the space required for utility-scale solar installations while avoiding conflicts with established residential or commercial areas.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
