Solar Energy Potential in Kampung Ayer Keroh, Melaka, Malaysia

Kampung Ayer Keroh, Melaka, Malaysia offers excellent year-round potential for solar energy generation, with remarkably consistent solar production across all seasons. This tropical location benefits from steady sunlight throughout the year, making it an ideal candidate for photovoltaic installations. The solar production data shows impressive consistency across meteorological seasons. Spring yields the highest output at 5.61 kWh per day for each kilowatt of installed capacity, followed closely by Autumn at 5.47 kWh/day. Summer and Winter perform similarly, producing 5.15 kWh/day and 5.16 kWh/day respectively. This minimal seasonal variation (less than 10% difference between highest and lowest production periods) is a significant advantage compared to locations further from the equator.

Optimal Panel Installation

For fixed solar panel installations in Kampung Ayer Keroh, Melaka, the ideal tilt angle is just 2 degrees facing South. This nearly horizontal orientation maximizes year-round energy capture, reflecting the location's proximity to the equator. This minimal tilt requirement simplifies installation and reduces structural complexity compared to installations at higher latitudes.

Environmental Considerations

Despite the excellent solar potential, several environmental factors should be considered when installing solar systems in this location:

• Heavy rainfall during monsoon seasons can temporarily reduce solar output and may require robust waterproofing measures
• High humidity levels can accelerate corrosion of components, necessitating marine-grade materials
• Potential dust accumulation during dry seasons may require regular cleaning schedules
• Tree cover and vegetation growth can be rapid in tropical environments, requiring ongoing maintenance to prevent shading

Preventative Measures

To maximize solar production in Kampung Ayer Keroh, Melaka, several preventative measures are recommended. Installations should incorporate corrosion-resistant mounting hardware and sealed junction boxes designed for tropical environments. Implementing automated cleaning systems or scheduling regular manual cleaning can maintain optimal panel efficiency, especially during dry periods when dust accumulation is highest. Additionally, selecting panels with good performance in high-temperature environments is crucial, as efficiency can decrease during intense heat. Ensuring adequate ventilation beneath panels will help mitigate temperature-related performance losses. Finally, a comprehensive vegetation management plan should be established to prevent shading issues as local flora grows rapidly in this tropical climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

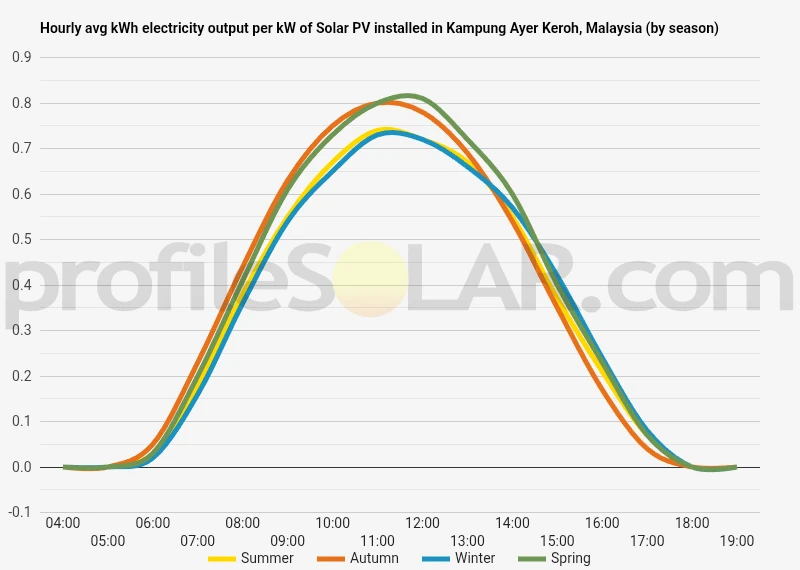

Solar output per kW of installed solar PV by season in Kampung Ayer Keroh

Seasonal solar PV output for Latitude: 2.2634, Longitude: 102.2767 (Kampung Ayer Keroh, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Kampung Ayer Keroh, Malaysia

To maximize your solar PV system's energy output in Kampung Ayer Keroh, Malaysia (Lat/Long 2.2634, 102.2767) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kampung Ayer Keroh, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kampung Ayer Keroh, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	17° South in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kampung Ayer Keroh, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kampung Ayer Keroh, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kampung Ayer Keroh, Malaysia

The topography around Kampung Ayer Keroh, Malaysia presents a diverse landscape characterized by gentle undulating terrain interspersed with more pronounced hills and valleys. Located in the state of Melaka (Malacca), this area sits approximately 30-50 meters above sea level on average, with nearby hills reaching heights of 100-150 meters. The region features a mix of developed areas, agricultural land, and patches of secondary forest.

Terrain Features

Kampung Ayer Keroh lies in a transitional zone between the coastal plains of western Melaka and the more elevated interior regions. The terrain gradually rises as one moves eastward from the Straits of Malacca. The area contains several small rivers and streams that have carved shallow valleys through the landscape over time. These waterways generally flow westward toward the Straits of Malacca. The soil composition primarily consists of sedimentary deposits, with areas of lateritic soil common throughout the region. This soil type, reddish in color and rich in iron and aluminum oxides, is typical of tropical regions that experience significant rainfall. The natural drainage patterns follow the contours of the land, with water generally flowing from higher elevations in the east toward the lower western coastal areas.

Vegetation and Land Use

The natural vegetation around Kampung Ayer Keroh has been significantly modified by human activity. Originally covered by tropical rainforest, much of the area has been converted to agricultural use, residential developments, and commercial zones. Remaining forested areas tend to be concentrated on steeper slopes and designated conservation areas, including portions of the nearby Ayer Keroh Recreational Forest. Agricultural activities include oil palm plantations, rubber estates, and smaller-scale farming. These cultivated areas typically occupy flatter terrain with good accessibility, while steeper slopes retain more natural vegetation or have been developed for specific purposes like the Melaka Zoo and recreational facilities.

Solar PV Potential Areas

For large-scale solar photovoltaic (PV) installations, several areas near Kampung Ayer Keroh show promising characteristics. The most suitable locations would include: The relatively flat agricultural lands to the north and northwest of Ayer Keroh offer excellent potential for solar PV development. These areas benefit from minimal shading concerns, established road access, and appropriate terrain that would require minimal grading or preparation. The existing agricultural infrastructure may also provide advantages for grid connection. Former rubber plantations and cleared lands throughout the region present opportunities for solar development. These sites typically feature gentle slopes facing north or south, which can be ideal for solar panel orientation. The soil conditions in these areas are generally stable and suitable for supporting mounting structures. The industrial zones near the Ayer Keroh exit of the North-South Expressway contain large, flat rooftops and vacant land parcels that could accommodate substantial solar installations. These areas already have robust electrical infrastructure, which would facilitate grid integration of new solar capacity.

Topographical Challenges

Despite the favorable conditions in many areas, certain topographical features present challenges for solar development. The hilly terrain in the eastern portions of the region would require significant earthworks to create suitable platforms for large-scale installations, potentially increasing development costs and environmental impacts. Areas near water bodies and streams may face periodic flooding during the monsoon season, making them less ideal for ground-mounted solar arrays. Additionally, some locations with heavy clay soils may present foundation challenges that would require specialized mounting solutions. The remaining forest patches, while limited, serve important ecological functions and are unlikely candidates for development due to both environmental considerations and the practical challenges of clearing and developing densely vegetated terrain. Overall, the topography around Kampung Ayer Keroh offers numerous viable options for solar PV development, particularly in the gently sloping agricultural lands and industrial zones where minimal site preparation would be required and existing infrastructure could support new renewable energy installations.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
