Kampung Baharu Nilai, Negeri Sembilan, Malaysia, presents a promising location for solar energy generation throughout the year. Situated in the tropics, this area benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Year-round Solar Potential

The solar energy output at this location remains relatively stable across all seasons. Spring shows the highest production at 5.68 kWh per day for each kilowatt of installed solar capacity. Autumn follows closely with 5.55 kWh/day, while summer and winter produce 5.39 kWh/day and 5.22 kWh/day, respectively. This consistency indicates that Kampung Baharu Nilai is well-suited for solar PV installations, offering reliable energy generation throughout the year.

Optimal Panel Tilt

For fixed solar panel installations in this location, the ideal tilt angle to maximize year-round energy production is 2 degrees South. This slight tilt helps optimize the panels' exposure to sunlight, considering the location's proximity to the equator and the sun's path throughout the year.

Environmental Factors and Mitigation

While Kampung Baharu Nilai generally offers favorable conditions for solar energy production, there are a few environmental factors to consider: 1. High humidity: The tropical climate can lead to increased moisture, potentially affecting solar panel efficiency. To mitigate this, installers should use high-quality, weather-resistant panels and ensure proper sealing of all components. 2. Heavy rainfall: During the wet season, frequent rain may temporarily reduce solar output. Installing panels at the optimal angle helps with water runoff and self-cleaning. Additionally, regular maintenance and cleaning can prevent debris accumulation. 3. Potential haze: Occasional haze from regional agricultural burning might impact solar efficiency. While this is not a constant issue, using high-efficiency panels can help maintain good performance even in slightly reduced sunlight conditions. By addressing these factors during installation and maintenance, solar energy systems in Kampung Baharu Nilai can achieve optimal performance and longevity, making the most of the location's excellent year-round solar potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

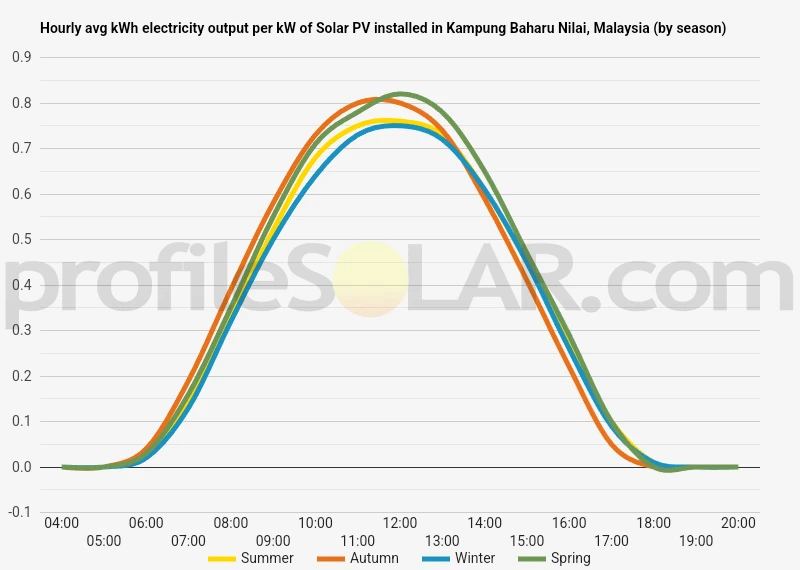

Solar output per kW of installed solar PV by season in Kampung Baharu Nilai

Seasonal solar PV output for Latitude: 2.7501, Longitude: 101.7738 (Kampung Baharu Nilai, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Kampung Baharu Nilai, Malaysia

To maximize your solar PV system's energy output in Kampung Baharu Nilai, Malaysia (Lat/Long 2.7501, 101.7738) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kampung Baharu Nilai, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kampung Baharu Nilai, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	9° South in Autumn	18° South in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kampung Baharu Nilai, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kampung Baharu Nilai, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kampung Baharu Nilai, Malaysia

The topography around Kampung Baharu Nilai, Malaysia, is characterized by gently rolling terrain with a mix of low-lying areas and modest hills. This region, located in the state of Negeri Sembilan, is part of the larger Malay Peninsula and features a landscape that has been shaped by both natural processes and human development. The area surrounding Kampung Baharu Nilai is primarily composed of undulating plains interspersed with small hills and shallow valleys. The elevation generally ranges from about 20 to 100 meters above sea level, with some higher points reaching up to 150 meters. This varied terrain is a result of the region's geological history, which includes periods of erosion and deposition. Much of the natural vegetation in this area has been cleared for agriculture and urban development. However, pockets of tropical rainforest and secondary growth can still be found in less developed areas. The region also features numerous small streams and rivers that contribute to the local drainage system, eventually flowing into larger water bodies.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine favorable topography with practical considerations for development. The relatively flat or gently sloping areas to the east and southeast of Kampung Baharu Nilai present promising opportunities for solar PV projects. These areas offer ample space and receive consistent sunlight throughout the year due to their proximity to the equator. The lack of significant elevation changes in these regions would simplify construction and reduce costs associated with land preparation. Additionally, the agricultural lands to the north and northeast of Kampung Baharu Nilai could be potential sites for solar farms. These areas are already cleared of dense vegetation and have good access to existing infrastructure, which would facilitate the transportation of equipment and connection to the power grid. It's important to note that while the topography in this region is generally favorable for solar PV installations, other factors such as land ownership, environmental considerations, and proximity to power transmission lines would also need to be taken into account when determining the most suitable locations for large-scale solar projects.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
